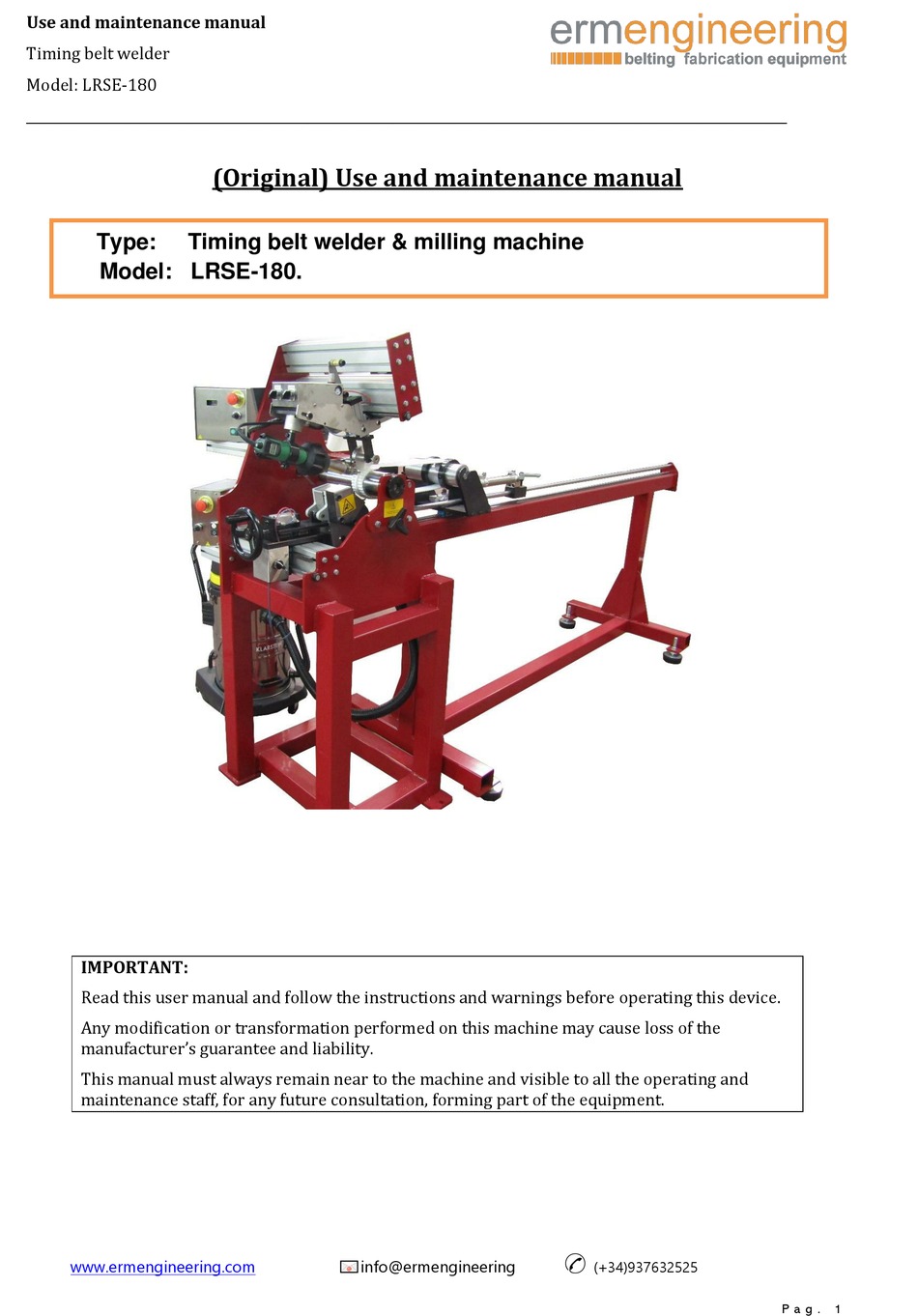

Use and maintenance manual
Timing belt welder
Model: LRSE-180
____________________________________________________________________________________________________________________
Type:
Timing belt welder & milling machine
Model: LRSE-180.
IMPORTANT:
Read this user manual and follow the instructions and warnings before operating this device.
Any modification or transformation performed on this machine may cause loss of the
manufacturer's guarantee and liability.
This manual must always remain near to the machine and visible to all the operating and
maintenance staff, for any future consultation, forming part of the equipment.
www.ermengineering.com
(Original) Use and maintenance manual
info@ermengineering
✆
(+34)937632525
P a g . 1
Advertisement
Table of Contents
Related Manuals for ermengineering LRSE-180
Summary of Contents for ermengineering LRSE-180
- Page 1 Use and maintenance manual Timing belt welder Model: LRSE-180 ____________________________________________________________________________________________________________________ (Original) Use and maintenance manual Type: Timing belt welder & milling machine Model: LRSE-180. IMPORTANT: Read this user manual and follow the instructions and warnings before operating this device. Any modification or transformation performed on this machine may cause loss of the manufacturer’s guarantee and liability.
-
Page 2: Table Of Contents
Use and maintenance manual Timing belt welder Model: LRSE-180 _______________________________________________________________________________________________________________________ Index: Page CE Declaration of conformity: ..............................3 Description: ....................................4 Technical Characteristics: ............................... 4 Standard equipment: ................................4 Warnings and safety:................................. 4 Installation and start-up:................................. 5 Operation: ..................................... 8 Preparation .......................................... -
Page 3: Ce Declaration Of Conformity
Use and maintenance manual Timing belt welder Model: LRSE-180 _______________________________________________________________________________________________________________________ - CE Declaration of conformity: WE DECLARE, under our responsibility, that the machine: - Type: Timing belt welder - Brand: ERM Engineering - Model: LRSE-180 - Serial No.: xxxxxx - Manufacturer date: 2021... -
Page 4: Description
Use and maintenance manual Timing belt welder Model: LRSE-180 _______________________________________________________________________________________________________________________ - Description: Continuous longitudinal welder and milling V-guides for timing belts using a milling tool to pull out fabrics and hot air blower to weld a profile. Fitted with speed, temperature and pressure controls for different types of material. -
Page 5: Installation And Start-Up
Use and maintenance manual Timing belt welder Model: LRSE-180 _______________________________________________________________________________________________________________________ − During use of the machinery and industrial use, people are subject to the risk of damage or injury by mechanical elements in linear or gyrating movement, high voltage electric components and static components under high temperature, due to which, during design and construction of its equipment, ERM Engineering. - Page 6 Use and maintenance manual Timing belt welder Model: LRSE-180 _______________________________________________________________________________________________________________________ It must also be connected to a compressed air supply with input pressure 6 bar. Place the tensioner body aligned with the driver roller to the size of 18 centimeters on the side as shown on the picture.
- Page 7 Use and maintenance manual Timing belt welder Model: LRSE-180 _______________________________________________________________________________________________________________________ NOTE: Depending on the strap length we can distance this tensioning body from the drive head. Connect the air tube of the tensioning body to the driving body. P a g . 7...
-
Page 8: Operation
Use and maintenance manual Timing belt welder Model: LRSE-180 _______________________________________________________________________________________________________________________ - Operation: Preparation Remove the control knob from the support plate of the drive roller. Remove the support from the drive roller to insert the “endless” belts for this, remove the control knob. - Page 9 Use and maintenance manual Timing belt welder Model: LRSE-180 _______________________________________________________________________________________________________________________ NOTE. Do not operate or tighten the belt without this fastening element, could cause mechanical damage. Then we will adjust the tension roller to the size of the tape, loosening the tension cylinder moving it to the size required.
- Page 10 Use and maintenance manual Timing belt welder Model: LRSE-180 _______________________________________________________________________________________________________________________ Once the strap is tensioned adjust the roller guides. To achieve a good centering of the strap, it is recommended to start-up the the drive motor to the highest speed.
- Page 11 Use and maintenance manual Timing belt welder Model: LRSE-180 _______________________________________________________________________________________________________________________ Fix both brakes once the elements are positioned. Select the pulley to the size required and place it in the welding head. Select the milling tool to the size required and assemble it, for this operation we will press the two emergency stops.
- Page 12 Use and maintenance manual Timing belt welder Model: LRSE-180 _______________________________________________________________________________________________________________________ WARNING: Remove the protective cover. Remove the cover and using a 22mm key and 13mm key to break the shaft rotation. NOTE: The nut screw of the milling tool is opposite of the usual way.
- Page 13 Use and maintenance manual Timing belt welder Model: LRSE-180 _______________________________________________________________________________________________________________________ When display stop to blink, minds that Leister is hot and ready to weld. Adjust the belt speed, pressures of winder and unwinder and welder head pressures. Note that any changes made to the temperature will not become effective until a few minutes have elapsed.
-
Page 14: Care And Maintenance
Use and maintenance manual Timing belt welder Model: LRSE-180 _______________________________________________________________________________________________________________________ - Care and maintenance: ➢ Because various chemical components are used during the welding process, there is an accumulation of highly corrosive waste in the welding area (rollers, pulleys, guides, etc. - Page 15 Use and maintenance manual Timing belt welder Model: LRSE-180 _________________________________________________________________________________________________________________________________________________________________________ P a g 1 5...
