ZTE MF79U - 4G USB Modem Manual

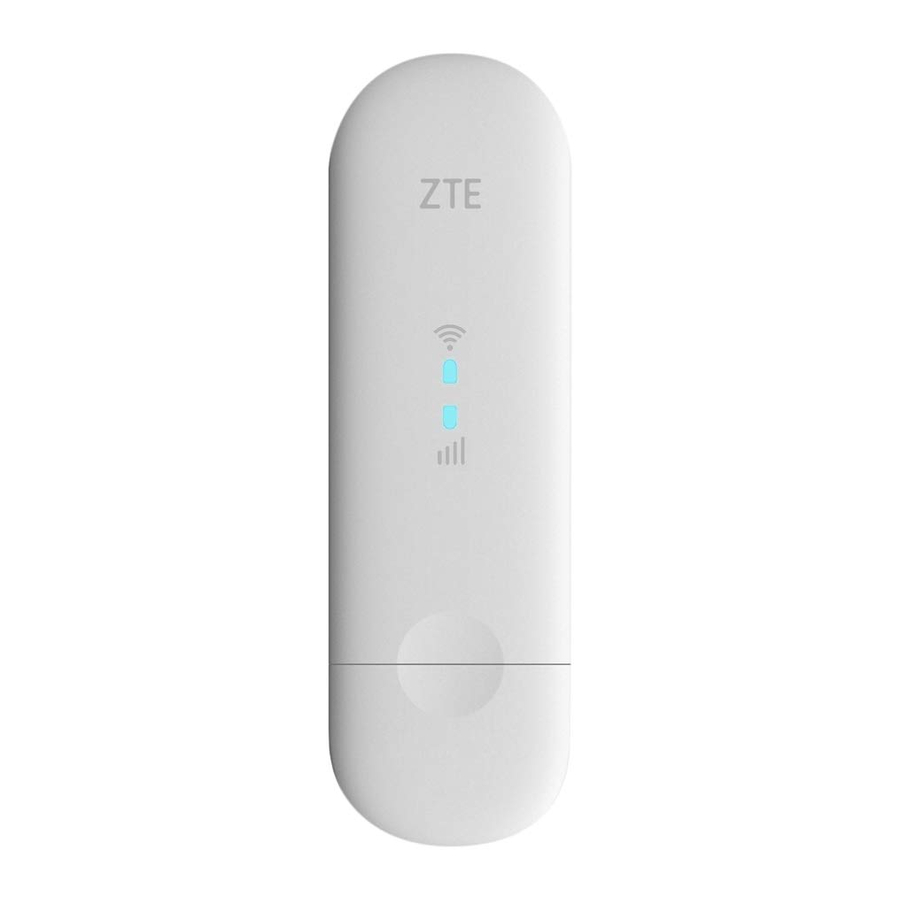

Appearance

The following figure is for your reference only.

1. Device cap
2. Front cover
3. Indicator light
4. External antenna connectors
5. Reset hole
   Press and hold for about 3 seconds to restore your device.
6. micro-SIM card slot
7. microSDHC™ card slot
8. USB connector

NOTE:
microSDHC logo is a trademark of SD3C, LLC.

Getting to Know Your Device

Indicator Light

Indicator	Status	Description
	Red	The device is in error status. The device is not registered to the mobile network. There is no micro-SIM card inserted. There is no network service available.
	Green solid	The device is registered to the 2G/3G mobile network.
	Green blinking	The device is connected to the 2G/3G mobile network and data is being transferred.
	Blue solid	The device is registered to the 4G//LTE network.
	Blue blinking	The device is connected to the 4G/LTE network and data is being transferred.
	Blue blinking	WPS is active.
	Blue solid	Wi-Fi is active.
	LED off	Wi-Fi is off.

Connection Scenarios

The device uses your micro-SIM card to access the Internet. It allows multiple clients to surf on the Internet at the same time. The following figure is for your reference only.

Installing Your Device

1. Open the front cover.


2. Install a micro-SIM card to the micro-SIM card slot.

   Your modem does not support SIM cards and nano-SIM cards. To avoid damage to the modem, do not use those cards or any card holders.


3. Install a microSDHC card to the microSDHC card slot.


4. Close the front cover.


Connecting to Your Device

Using USB Connector

Insert the device into your computer's USB port securely. The operating system automatically detects and identifies your device and starts the installation wizard.

NOTE:
If the system does not automatically launch installation, you can double-click the device installation icon in My Computer > ZTEMODEM to install the software.

The 4G Mobile Hotspot configuration page will open automatically, and then your computer will connect to your device successfully.

Using Wi-Fi

1. Supply power to your device by connecting to your computer or using other accessories.
2. Ensure that your computer or other client devices have enabled Wi-Fi, and search for available wireless networks.
   NOTE:
   Refer to your Wi-Fi-enabled client device manual for further details on how to search for wireless networks. If you use a computer, you need to set your computer to obtain an IP address automatically.

3. Select the Wi-Fi name (SSID) of your device, and click Connect.
4. Enter the Wi-Fi password if necessary, and click OK.
   NOTE:
   Refer to the chapter Getting to Know the Wi-Fi SSID and Password to get the default Wi-Fi SSID and password.

5. Wait until the client device is connected to your device successfully.

Getting to Know the Wi-Fi SSID and Password

You can view the label on the device to get the default Wi-Fi SSID and password.

Logging in to the 4G Mobile Hotspot Configuration Page

1. Ensure that the connection between your device and the client device is correct.
2. Launch the Internet browser and enter http://192.168.0.1 or http://ufi.ztedevice.com in the address bar.
3. Enter the password to log in to the 4G Mobile Hotspot configuration page.

NOTE:
View the label on the device to get the default password.

Changing the Wi-Fi SSID or Password

1. Log in to the 4G Mobile Hotspot configuration page.
2. Select Wi-Fi Settings > Main SSID.
3. Change the Network Name (SSID) or the Password.
4. Click Apply.

Accessing the Internet

After a client device is successfully connected to your device, you can access the Internet in Automatic or Manual. The default mode is Automatic.

NOTES:

• To change the current connection setting, please disconnect from the Internet first.
• To modify the parameters of your device, log in to the 4G Mobile Hotspot configuration page.

Configuring Your PC

The following procedure describes how to configure the Internet Protocol in Windows for your Wi-Fi connection.

1. Right-click Network and select Properties.
2. Select Change adapter settings.
3. Right-click Wireless Network Connection and select Properties.
4. Select Internet Protocol Version 4 (TCP/ IPv4), and click Properties.
5. Select Obtain an IP address automatically and Obtain DNS server address automatically, and click OK.

Troubleshooting

When you insert the device into your computer's USB port, the operating system cannot install the software automatically.

• Install the software manually. Please run the installation program in the path of My Computer > ZTEMODEM.
• If the driver of your device is abnormal, reinstall the software. You need to uninstall the software first.

The connection between your device and a client through Wi-Fi cannot be established.

• Ensure that the Wi-Fi function is enabled.
• Refresh the network list and select the correct SSID.
• Check the IP address, and ensure that your client can automatically obtain an IP address.
• Enter the correct network key (Wi-Fi password) when you connect the client to your device.

The client connected to the device cannot access the Internet.

• Ensure that your micro- SIM card is available.
• Change the location and find a place with good signal.
• Check the settings of the WAN connection mode.
• Contact with your service provider and confirm your APN settings.

The 4G Mobile Hotspot configuration page cannot be visited.

• Enter the correct address. The default address is http://192.168.0.1or http://ufi.ztedevice.com.
• Use only one network adapter in your PC.
• Do not use any proxy server.

Getting More Help

You can get help by:

• Sending an email to mobile@zte.com.cn
• Visiting www.ztedevices.com

Specific Absorption Rate (SAR)

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health. The guidelines use a unit of measurement known as Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg and the highest SAR value for this device when tested at the body was 0.99 W/kg* with 5 mm distance.

As SAR is measured utilizing the device's highest transmitting power, the actual SAR of this device while operating is typically below that indicated above. This is due to automatic changes to the power level of the device to ensure it only uses the minimum power required to communicate with the network.

* The tests are carried out in accordance with EN 50566, EN 62209-2, EN 50665, EN 62479 and EN 50663.

Specification

CE Caution

USB Port

This product shall only be connected to a USB interface of version USB 2.0.

Proper Use

As described in this guide, your device can be used only in right location. If possible, please do not touch the antenna area on your device.
