CrustBuster 4560 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

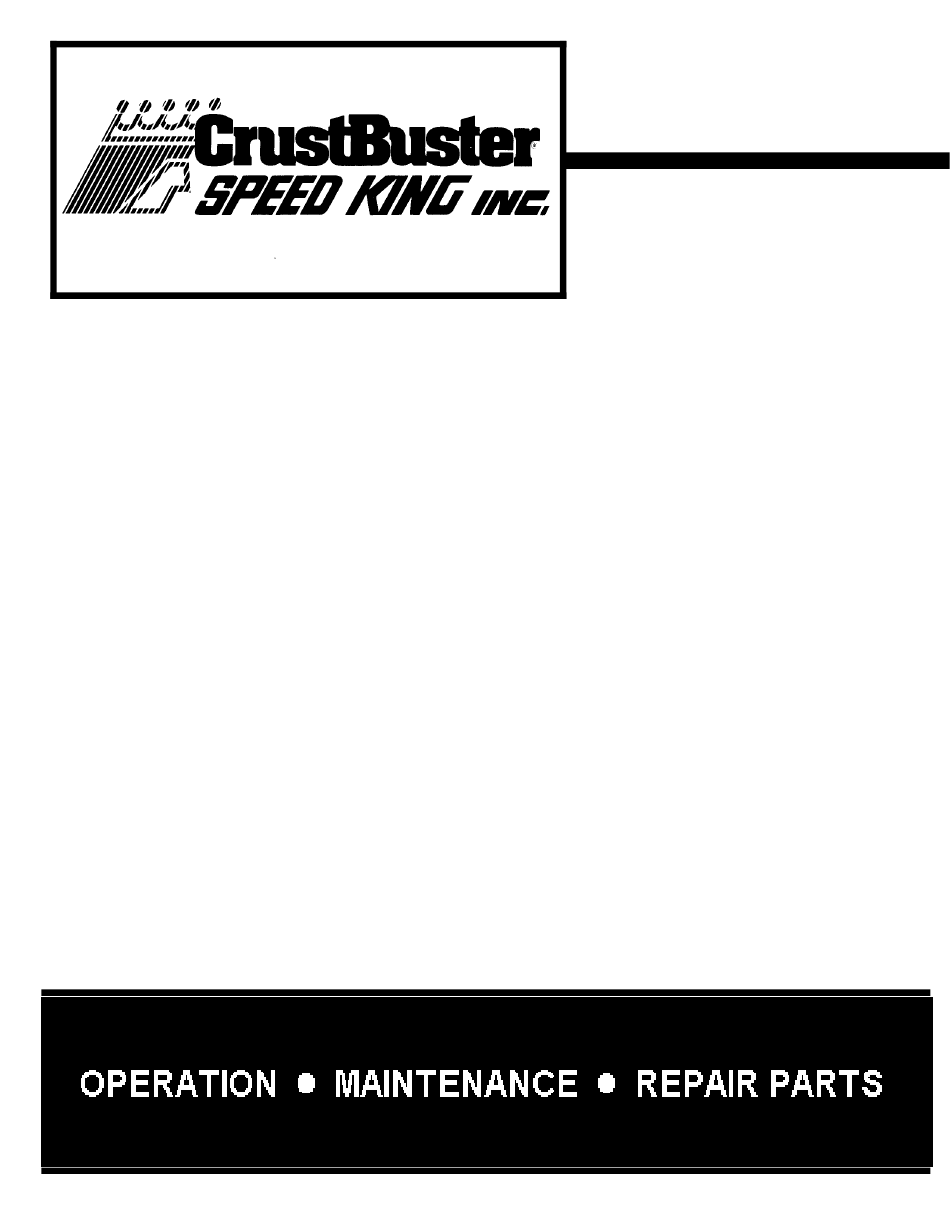

P.O. Box 526 - Spearville, Kansas 67876 - (620) 227-7106
crustbuster.com
4560 Air Drill
OWNER'S MANUAL
#615120-2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4560 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CrustBuster 4560

Summary of Contents for CrustBuster 4560

  • Page 1 P.O. Box 526 - Spearville, Kansas 67876 - (620) 227-7106 crustbuster.com 4560 Air Drill OWNER'S MANUAL #615120-2015...
  • Page 2 WARRANTY: In addition to the implied warranties of fitness and of merchantability, CrustBuster®/Speed King, Inc. warrants new products sold by it to be free from defects in workmanship and material for a period of 12 months, from the date of delivery to the first user customer.

  • Page 3: Table Of Contents

    Table of Contents Identification and Warranty ..... Inside Front Cover Safety ..........2-9 Hitching to Tractor.
  • Page 4 Remember, it is We are proud to have you as a customer and a machine and has been designed and tested feel you will be proud to be a CrustBuster to do an efficient job in most operating condi- owner.

  • Page 5: Safety

    Safety DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING: Indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
  • Page 6 Safety OPERATE SAFELY AVOID TIP-OVERS KEEP RIDERS OFF MACHINE...
  • Page 7 Safety HANDLE FUEL SAFELY - AVOID FIRES PREPARE FOR EMERGENCIES WEAR PROTECTIVE CLOTHING...
  • Page 8 Safety USE SAFETY LIGHTS AND DEVICES USE A SAFETY CHAIN...
  • Page 9 Safety TRANSPORT SAFELY TOW LOADS SAFELY...
  • Page 10 Safety PRACTICE SAFE MAINTENANCE AVOID HIGH-PRESSURE FLUIDS...
  • Page 11 Safety Decals #05328000 #606145 #604512 #607986 #608000 #611087 #608018 #608026 #602151 #602177...

  • Page 12: Hitching To Tractor

    Hitching to Tractor The drill is equipped with a telescoping category II Telescoping Hitch Cylinder draw bar hitch or an optional 2 point hitch (category III). Secure drill clevis to tractor draw bar with an ade- quate size hitch pin (Hitch pin is commonly supplied with tractor.) Never use an unsecured pin in draw bar.
  • Page 13 The drill is equipped with electric powered hydraulic The end 4 place connector is connected to the 4560 brakes. To operate these brakes, push the button drill harness. This plug is next to the 7 pin light plug.

  • Page 14: Fold And Unfold Instructions

    Fold and Unfold Instructions N Folding and unfolding of drill should be done on To Fold: level ground with the tractor transmission in neutral. Raise openers up until they are all the way Note: One of the indicator lights (located above N Stay clear of drill during the fold and unfold the fan) should come on before the operation.

  • Page 15: Walkway Ladder

    Walkway Ladder The lower section of the ladder swings down for switches to select between left and right meter and access. This ladder section is held up by a spring opening and closing. Make sure gate is fully open loaded pin located at the upper right corner of the during calibration and planting.

  • Page 16: Tank And Frame

    Tank & Frame Item Qty Part No. Description 879205 Tank 879023 Frame 331926 Bolt ½" x 2" 331363 Nylock ½" 01071000 Bolt 5/8" x 2" 01572700 Nylock 5/8"...
  • Page 17 Tank...
  • Page 18 Tank #879205 Tank Assembly Item Qty Part No. Description Item Qty Part No. Description 975755 Tank 01252600 Carriage Bolt 5/16" x 1" 975821 Stainless Steel 613000 Rubber Seal 3/4" x 3/4" xFt 01377100 Carriage Bolt 5/16" x 1½" 156950 Lid Handle Stainless Steel 975797 Stair Handrail Right...

  • Page 19: Tank With Auger

    Tank with Auger...
  • Page 20 Tank with Auger #881615 Tank Assembly w/Auger Item Qty Part No. Description Item Qty Part No. Description 975755 Tank 01377100 Carriage Bolt 5/16" x 1½" 975821 Stainless Steel 613000 Rubber Seal 3/4" x 3/4" xFt 03933900 Nylock 5/16" Stainless Steel 156950 Lid Handle 976654...

  • Page 21: Tank Auger And Mount

    Tank Auger & Mount...
  • Page 22 Tank Auger & Mount #881581 Tank Auger & Mount Item Qty Part No. Description Item Qty Part No. Description 975110 Auger Tube -8" 158634 Valve / Handle Adapter 615625 Flighting -7" Poly 980839 Handle Half Band 975136 Valve Mount 157834 Collar 978817 Transport Lock...

  • Page 23: Frame

    Frame #879023 Frame Item Qty Part No. Description Item Qty Part No. Description 879015 Tongue/Center Section 330100 Bolt ½" x 4½" 975490 Wing Mount Left 330357 Bolt 1" x 5½" 975482 Wing Mount Right 330597 Nylock 1" 878926 Pull Bar Slide Assembly 335968 Bolt 1½"...

  • Page 24: Center Frame

    Center Frame #879015 Tongue / Center Section Item Qty Part No. Description 975466 Center Section 975474 Tongue 333823 Bolt 1 1/4" x 4½" 338228 Nylock 1 1/4" #878926 Pull Bar Slide Item Qty Part No. Description 975508 Slide 572313 UHMW Pad 334243 Bolt 3/8"...
  • Page 25 Center Frame #879460 Tandem Axle Right Item Qty Part No. Description 976134 Axle Right 403824 Spindle 3½" x 21 551358 Hub 10 Bolt 02274900 Bolt 5/8" x 5" 01572700 Nylock 5/8" 339200 Pipe Nipple 1/8 x 2 331066 Pipe Coupling 977678 Rotor Mount Item Qty...

  • Page 26: Wings

    Wings #878967 Inside Wing Right w/Weights Item Qty Part No. Description 975532 Inside Wing Right 275040 End Cap 242008 Weight Bar 335919 Carriage Bolt 3/8" x 1 1/4" 330837 Nylock 3/8" #878975 Inside Wing Left w/Weights Item Qty Part No. Description 975540 Inside Wing Left...

  • Page 27: Tool Bars

    Tool Bars Outside Right Item Part No. Description 975870 Tool Bar 871012 Opener Left Short 871038 Opener Left Long 337147 U-Bolt 5/8" x 4" x 5" 330878 Lock Washer 5/8" 330571 Hex Nut 5/8" Outside Left Item Part No. Description 975888 Tool Bar 871004...

  • Page 28: Air Hose

    Tool Bars Inside Right Item Part No. Description 975896 Tool Bar 871012 Opener Left Short 871038 Opener Left Long 337147 U-Bolt 5/8" x 4" x 5" 330878 Lock Washer 5/8" 330571 Hex Nut 5/8" 243857 Opener Spacer 337469 U-Bolt 5/8" x 4" x 7" Inside Left Item Part No.

  • Page 29: Openers

    Openers #871004 Right Short Opener #871012 Left Short Opener #871020 Right Long Opener #871038 Left Long (Shown) Item Part No. Description Item Part No. Description 964692 Opener Mount 964817 Opener -Left Long 964726 Lower Arm 964800 Opener -Right Long 964718 Upper Arm 964791 Opener -Left Short...
  • Page 30 Openers #845917 16" Blade Assembly - Plain #845925 16" Blade Assembly- Notched Item Part No. Description Item Part No. Description 502641 Blade 16" #9 Plain 502633 Blade 16" #9 Notched 980037 Bearing Flange 980037 Bearing Flange 601351 Rivet 601351 Rivet 5/16" x ½" Button Head 5/16"...
  • Page 31 Presswheel Assemblies #878199 -3 x 15 V-Type Item Part No. Description 01572700 Nylock 5/8" 531483 Presswheel 3 x 15 V-Type -Carlisle 954636 Presswheel Arm 338053 Bolt ½" x 5" 335182 Bolt 5/8" x 4½" 148999 Bushing .532 x .747 x 3.594 03223500 Reversible Lock Nut ½"...

  • Page 32: Outside Scraper Assy

    Outside Scraper Assy 883694 & 883686...

  • Page 33: Feed Tube Bars

    Feed Tube Bars Left Outside Wing Shown Item Part No. Description Feed Tube Bar 123695 Center & Outside Wings-86 1/4" 123703 Inside Wings -146 1/4" 243865 Tool Bar Bracket Right 243873 Tool Bar Bracket Left 339275 U-bolt 3/8" x 4 x 2 5/8 275727 Distributor Tower Bracket 879288...

  • Page 34: Feeders

    Feeders #879148 Feeder Assembly -Left Item Qty Part No. Description Item Qty Part No. Description 975722 Feeder 612820 Hydraulic Motor w/controller 313809 Hex Shaft 7/8" x 36" 331363 Nylock ½" 312975 Hex Shaft 7/8" x 35½" 330159 Flat Washer ½" 339010 Roll Pin 5/16"...
  • Page 35 Feeders #879882 Feeder Assembly -Right Item Qty Part No. Description 975722 Feeder 313809 Hex Shaft 7/8" x 36" 312975 Hex Shaft 7/8" x 35½" Item Qty Part No. Description 339010 Roll Pin 5/16" x 2" Stainless 612820 Hydraulic Motor w/controller 238279 Double Flangette Mount 331363...

  • Page 36: Hydraulics

    Hydraulics Solenoid and Lock Valve Item Qty Part No. Description Item Qty Part No. Description 04130100 Solenoid Valve 465278 Adapter Tee ¾ JICM 465104 Lock Valve 465310 Adapter 90 470971 Hose ½" x 30" ¾ JICM x ¾ MOR ¾ FSw x f FSw 474361 Hose ½"...

  • Page 37: Fan

    Hydraulics Item Qty Part No. Description 465385 Coupler Male Pioneer 466912 Adapter Straight ¾ MOR x ½ NPTF 474064 Coupler Male -Flat Face 474668 Hose ¾" x 504" FSw x ½ NPTM Item Qty Part No. Description Hose d" x 504" 474346 462085 Pipe Coupling ½"...

  • Page 38: Fold

    Hydraulics Fold Item Qty Part No. Description 474353 Hose ½" x 76" ¾ FSw x f FSw Hose d" x 129" 474379 FSw x ¾ FSw 471888 Adapter 90 MOR x JICM 471854 Cylinder 1 x 2 00614800 Adapter Tee -f JICM 474254 Hose ½"...

  • Page 39: Openers

    Hydraulics Openers Item Qty Part No. Description 00614800 Adapter Tee -f JICM 00618900 Adapter 90 -f JICM 474353 Hose ½" x 76" ¾ FSw x f FSw 474627 Hose ½" x 24" -f FSw 474403 Hose ½" x 124" -f FSw 468546 Hose ½"...

  • Page 40: Tires

    Hydraulics Tires Item Qty Part No. Description 474254 Hose ½" x 72" ¾ FSw x f FSw 00614800 Adapter Tee -f JICM 00618900 Adapter 90 -f JICM 474296 Cylinder 4 x 10 465310 Adapter 90 ¾ MOR x ¾ JICM 470971 Hose ½"...

  • Page 41: Cylinders

    Hydraulic Cylinders #474221 - 4 x 5 Cylinder #474288 - 5 x 36 Cylinder Base Clevis 467134 Base Clevis 466177 O-Ring 461186 O-Ring 461533 Back Up 461277 Back Up 461590 Piston 461269 Piston 461582 Head 470104 Head 466110 Wiper 460907 Wiper 461160 Tie Rod Nut...

  • Page 42: Electronic And Electrical

    Electronic and Electrical Hopper Sensor 608521 Air Pressure Sensor 613976 Digital Scale 611632 Harness Loop A/B 614065 Astro V GPS Speed Sensor- 4 pin 612390 Mini CAN Terminator 613455 Extension 15' - 3 pin WP 612796 Sensor 32MM -SS Extrusion 613745 Extension 15' - 2 pin WP 12ga 612846...

  • Page 43: Wire Box

    Electronic and Electrical #879361 -Wire Box Item Qty Part No. Description Item Qty Part No. Description 337881 Screw #10 x ½ Self Tap 613455 CAN Terminator 575610 Back Plate 571299 Wire Tie 8½" 976068 Wire Box 02919900 Screw #10-24 x 1 Hex Hd 612705 ACC-WMST2 333393...

  • Page 44: Wiring Harness For Hitch

    Electronic and Electrical #614933 -Wiring Harness -Hitch Item Qty Part No. Description 614958 Trailer Plug 7 Pole 614941 Trailer Cable 7 Conductor 613992 Male Connector 614008 Male Terminal 610006 Wire 14 ga Red xFT 609883 Wire 14 ga White xFT #614966 -Wiring Harness -Tractor Item Qty Part No.

  • Page 45: Switch Box For Tractor

    #63418800-Switch Box for Tractor Item Qty Part No. Description 04470100 Electric Box Weather Proof 03772100 Wire Term Male .25 INS 16-14 W/Cover 03412400 Strain Relief 03693900 Wire #12-3 X Ft Insul SJOOW 03620200 AT Shroud 3 Pole 03917200 Wire 12Ga Red X Ft 03406600 AT Cable Seal Green 18-16Ga 03914900...

  • Page 46: Remote Enclosure

    Remote Enclosure...
  • Page 47 Remote Enclosure #880872 Item Qty Part No. Description Item Qty Part No. Description 03887700 Terminal Connector 03889300 Terminal Block Jumper 03891900 Connector 5 Pin for .25' 03918000 Wire Primary Auto Wire Harness 18ga Blue x FT 03892700 Relay Plug In .25' 03919800 Wire Primary Auto...

  • Page 48: Hitch Options

    Hitch Options #881847 - 2 Point Item Qty Part No. Description 979799 Joint 979781 Mount 979807 Swing Pin 335174 HHCS 3/4" x 2½" 330316 Nylock 3/4" 600346 Zerk 1/4-25 x .531 850792 Hitch Pin 334425 Klik Pin 7/16" w/2" Ring #879841 - Draw Bar Item Qty Part No.
  • Page 49 Hitch Options #880385 - Rear Hitch Item Qty Part No. Description 977249 Rear Hitch 963546 Mono Clevis 337360 HHCS 1 1/4" x 10" 332304 Lock Washer 1 1/4" 331454 Hex Nut 1 1/4" 335174 HHCS 3/4" x 2½" 330316 Nylock 3/4"...
  • Page 50 P.O.Box 526 Spearville Kansas 67876 (620) 227-7106 crustbuster.com...
