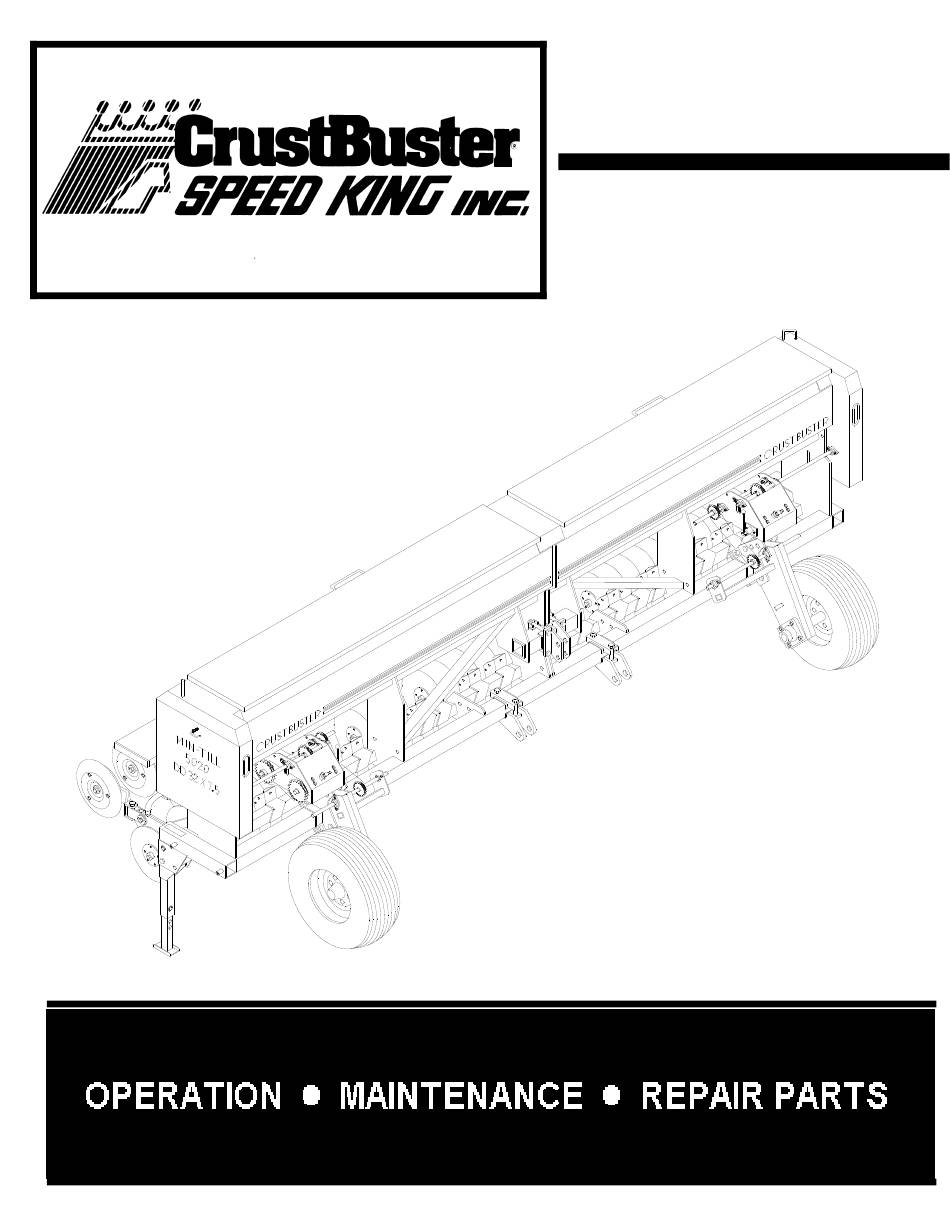

- Page 1 P.O. Box 526 - Spearville, Kansas 67876 - (620) 227-7106 crustbuster.com 5020 Min-Till Drill Owner's Manual 07-98) # 605972...
- Page 2 Identification Your CrustBuster® drill is identified by a Serial Number and Model Number. Record these numbers in the spaces provided in this manual and refer to them when ordering parts or requesting service. Serial Number Model Number Warranty WARRANTY: In addition to the implied warranties of fitness and of merchantability, CrustBuster®/Speed King, Inc.
-
Page 3: Table Of Contents
Table of Contents Identification & Warranty ..... . Inside Cover Safety ......... . . 2-6 Operating Cautions . - Page 4 If special attention is required for some tenance to keep it in top running condition. condition, ask your CrustBuster dealer; he We have attempted to cover all the adjust- will be glad to help and answer any questions ments required to fit most conditions;...
-
Page 5: Safety
Safety RECOGNIZE SAFETY INFORMATION UNDERSTAND SIGNAL WORDS FOLLOW SAFETY INSTRUCTIONS... - Page 6 Safety OPERATE SAFELY AVOID TIP-OVERS KEEP RIDERS OFF MACHINE...
- Page 7 Safety HANDLE FUEL SAFELY - AVOID FIRES PREPARE FOR EMERGENCIES PRACTICE SAFE MAINTENANCE...
- Page 8 EMBLEM ARE EASILY VISIBLE FROM THE REAR. NEVER TRANSPORT THE GRAIN DRILL FASTER THAN 32 KM/H (20 MPH.) REDUCE SPEED WHEN TRAVELING OVER ROUGH GROUND OR WITH THE BOX FULL. (CRUSTBUSTER DOES NOT RECOMMEND TRANSPORTING WITH A FULL GRAIN BOX.)
-
Page 9: Operating Cautions
____ Rotate support stands UP before transporting or operating drill. ____ If transporting drill while box is full, turn drive wheels manually before drilling to assure packing has not stopped seed flow. (CrustBuster does not recommend transporting with full grain box. -
Page 10: Setting Down Pressure & Seed Depth
Min-Till Drill Setting Down Pressure Opener pressure setting is easy and allows separate settings for tire compaction areas to different soil conditions from field to field. Ratchet mechanism allows you to turn the pressure up or down. The locking key rolls up or down the notch gauge and locks to your desired setting from 140# to 250# per opener. -
Page 11: Wobble Slot Seed Cup
Wobble Slot Seed Cup Adjustments and Service The wobble slot seed cups should be checked the gauge to equal the slot width you have just against the slot gauge initially and anytime service measured with the keystock by loosening with a has been performed on the seed shaft or individual screwdriver and sliding in or out. -
Page 12: Calibration & Seed Rates
One method involves catching seed from one or more seed cups and utilizing a density scale to determine actual rates. These scales are com- Sprocket Box mercially available, inexpensive and very easy to use. Information can be obtained from CrustBuster®/Speed King, Inc. -
Page 13: Meter Man Acreage Counter
Proper maintenance will extend the life of your ment calibration factor or refer to the predeter- drill and give you years of excellent performance. mined factors listed when using CrustBuster Refer to the repair part drawings and the illustra- drills. -
Page 14: Sprocket Locations
5020 Sprocket Locations... -
Page 15: Opener Settings
Opener Settings Conventional Low Ridge High Ridge Setting Setting Setting... -
Page 16: Row Set-Ups
30" Row Set-ups Top view is set-up for dual tires or single tires. Bottom view can be set-up for single or dual tires. To get the 30 inch dimension to the center of the wheel, the right wheel arm is mounted on the left, and the left wheel arm is mounted on the right. - Page 17 36" Row Set-ups Top view is set-up for dual tires or single tires. Bottom view can be set-up for single tires only by moving the right wheel arm to the left, and the left wheel arm to the right.
- Page 18 40" Row Set-ups Top view is set-up for dual tires or single tires. Bottom view can be set-up for single tires only by moving the right wheel arm to the left, and the left wheel arm to the right.Row Set-ups...
-
Page 19: Seed Rate Charts
Seed Rate Charts ALFALFA BARLEY Sprockets Slot Width Sprockets Slot Width Derailleur Box End Pounds/Acre Derailleur Box End Pounds/Acre H 1/8" 1/4" H 1/2" 5/8" 3/4"... - Page 20 Seed Rate Charts CANOLA CORN Sprockets Slot Width Sprockets Slot Width Derailleur Box End Pounds/Acre Derailleur Box End Pounds/Acre H 3/16" 1/4" 3/8" H 1/2" 5/8" 3/4"...
- Page 21 Seed Rate Charts COTTON FESCUE Sprockets Slot Width Sprockets Slot Width Derailleur Box End Pounds/Acre Derailleur Box End Pounds/Acre H 1/2" 5/8" 3/4" H 3/8" 1/2" 5/8"...
- Page 22 Seed Rate Charts MILLET MILO Sprockets Slot Width Sprockets Slot Width Derailleur Box End Pounds/Acre Derailleur Box End Pounds/Acre H 3/16" 1/4" 3/8" H 3/16" 1/4" 3/8"...
- Page 23 Seed Rate Charts OATS PINTO BEANS Sprockets Slot Width Sprockets Slot Width Derailleur Box End Pounds/Acre Derailleur Box End Pounds/Acre H 1/2" 5/8" 3/4" 1/2" 5/8" 3/4" 84 101 89 107 94 112 75 100 99 118 79 105 78 104 124 82 110 82 109 130 86 115...
- Page 24 Seed Rate Charts RICE Sprockets Slot Width Sprockets Slot Width Derailleur Box End Pounds/Acre Derailleur Box End Pounds/Acre H 1/2" 5/8" 3/4" 1/2" 5/8" 3/4" 78 100 82 106 87 112 90 105 92 117 95 110 96 123 99 115 78 101 129 83 104 120 82 105 135...
- Page 25 Seed Rate Charts SOYBEANS SUNFLOWERS Sprockets Slot Width Sprockets Slot Width Derailleur Box End Pounds/Acre Derailleur Box End Pounds/Acre H 3/8" 1/2" 5/8" 3/4" H 1/2" 5/8" 3/4" 82 102 87 107 91 113 96 119 75 100 124 79 105 130 77 103 128 82 109 136 87 116 144...
- Page 26 Seed Rate Charts Legume Box Charts WHEAT ALFALFA Sprockets Slot Width Sprockets Slot Width Derailleur Box End Pounds/Acre Gear Box Box End Pounds/Acre H 1/2" 5/8" 3/4" 1/8" 1/4" CANOLA Sprockets Slot Width Gear Box Box End Pounds/Acre 3/16" 1/4" 3/8"...
- Page 27 Notes...
-
Page 28: Frame
5020 3 Point Drill Frame Item Part No. Description 957688 Frame 959908 Jack Stand Slide 959916 Jack Stand Swivel 330449 Clevis Pin 3/4" x 4 1/2" 331215 Clevis Pin 3/4" x 5 1/4" 01299700 HHCS 3/4" x 5" 330456 Klik Pin 7/16"... -
Page 29: Wheel Arm
5020 3 Point Drill Wheel Arm #815175 - Mounted Tire Assembly 530147 Wheel 6B 15 x 10 530287 Valve Stem 530329 Tire 11L x 15 10 Ply 02990000 Decal "Check Wheel Lugs" Item Part No. Description Item Part No. Description... -
Page 30: Grain Box
5020 Grain Box... - Page 31 5020 Grain Box Item Part No. Description Item Part No. Description 864140 Cover Shield Assembly Box Bottom Assembly Right 02889400 Owners Manual Cannister 863977 20' x 7½" 02890200 Cannister Mounting Bracket 863985 20' x 8" 03001500 Bearing 1" 2B Flange 863993 20' x 10"...
-
Page 32: Drive
5020 Drive... - Page 33 5020 Drive Item Part No. Description Item Part No. Description 953299 Wing Wheel Spindle 432872 Chain 2050 x 43 Links 400739 Wheel Bearing 4B Flange 865055 Gear Box Assy Left (Shown) 957696 Wheel Arm Left (Shown) 865063 Gear Box Assy Right...
-
Page 34: Gear Assembly - Left
5020 Gear Left... - Page 35 5020 Gear Left Item Part No. Description Item Part No. Description 309088 Handle Shaft 432708 Sprocket Cluster 604611 Plastic Knob 432542 Chain #40 x 64P 332452 Roll Pin 5/32" x 1 1/4" 330571 Hex Nut 5/8" 860908 Derailleur Clutch Mount...
-
Page 36: Gear Assembly - Right
5020 Gear Right... - Page 37 5020 Gear Right Item Part No. Description Item Part No. Description 309088 Handle Shaft 432708 Sprocket Cluster 604611 Plastic Knob 432542 Chain #40 x 64P 332452 Roll Pin 5/32" x 1 1/4" 330571 Hex Nut 5/8" 860908 Derailleur Clutch Mount...
-
Page 38: Min-Till Opener
5020 Min-Till Opener... - Page 39 5020 Min-Till Opener Item Part No. Description Item Part No. Description Opener Assembly 150508 Spacer Spool 1 27/64" Items #25,#37,#39, #47 are 216747 Cam Washer Plate NOT included in assembly 335422 HHCS 1/2" x 2 1/2" 867374 Right Short 331363 Hex Nylock Nut 1/2"...
-
Page 40: Min-Till Opener Blades
Min-Till Opener Blades 15" Blade Assembly #859090 Item Part No. Description 501973 Blade 15" OD x 3MM 401042 Bearing 603084 Rivet 5/16" x 5/8" Button Head 551234 Bearing Flange 636860 Bearing Flange Assembly (Includes Items 2 & 4) 13½" Blade Assembly #863597 Item Part No. -
Page 41: Feed Tubes
5020 Feed Tubes Cover Shield # 864140 Item Part No. Description 257428 Washer 15/16" x 16 ga 309724 Handle Pin 501205 Quadrant Spring 330936 Cotter Pin 1/8" x 1" 957068 Shield Latch 956789 Cover Shield... -
Page 42: Presswheel Assemblies
Presswheel Assemblies #530667 (Hammer) 2" x 13" Peaked w/Smooth Sides Item Part No. Description HHCS 3/8" x 1 5/8" Gr 5 HHCS 3/8" x 5/8" Gr5 530758 2x13 Smooth Presswheel Side 530766 2x13 Peaked Presswheel 401042 Bearing Hex Locknut 3/8" #530717 (Hammer) 2"... -
Page 43: Lighting System
5020 Lighting System... - Page 44 P.O.Box 1438 Dodge City, Kansas 67801 (620) 227-7106...
