ProDVX GM-75 Glass Mount
instruction manual

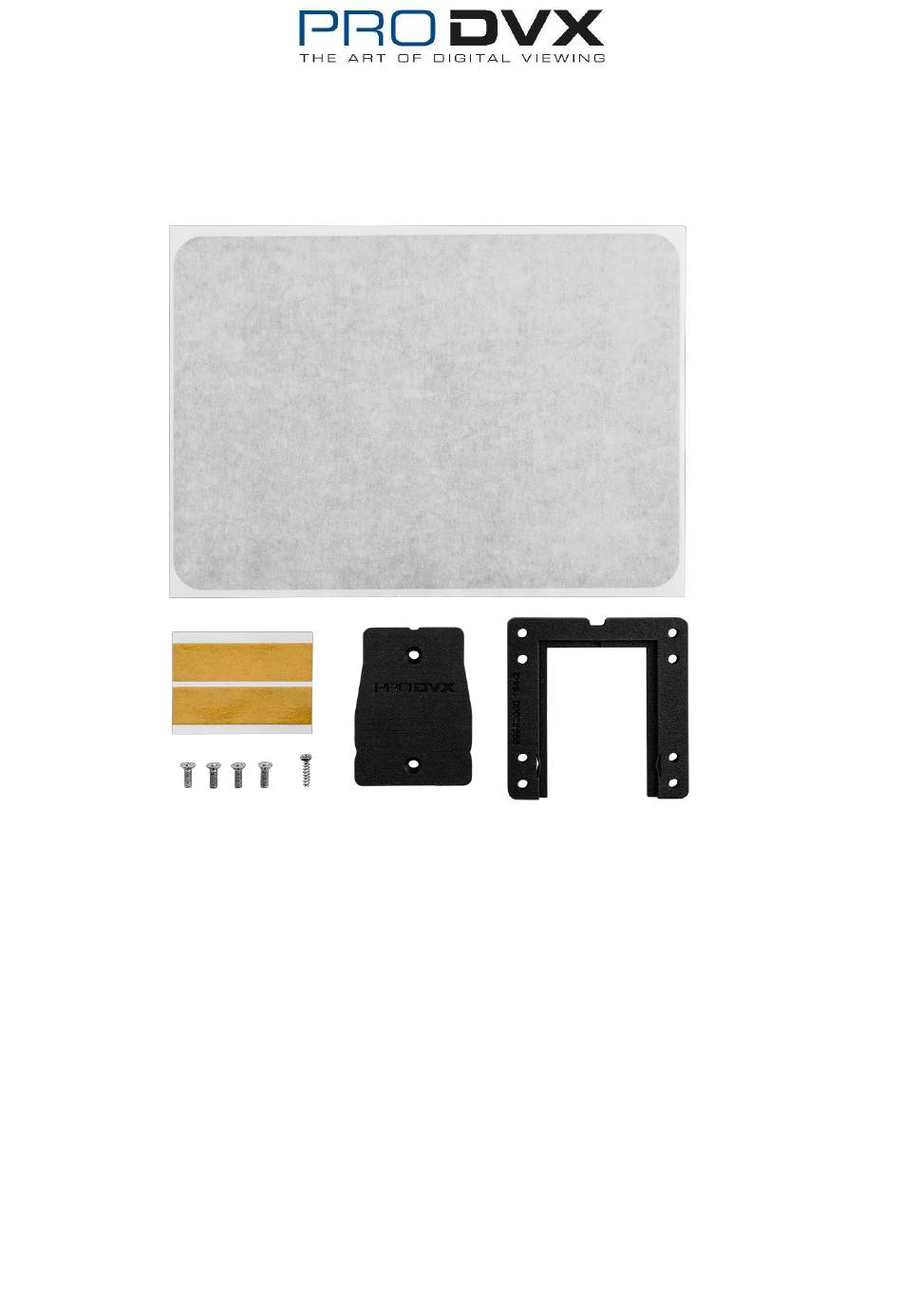

The ProDVX GM-75 Glass Mounts contains the following parts:
1 x 10" foil / sticker
1 x U-frame (8 x VESA holes)
1 x center block
1x sheet with 2 adhesive strips
4 x short VESA screws (M412)
1 x security screw (cross-recess)
Advertisement
Related Manuals for ProDVX GM-75
Summary of Contents for ProDVX GM-75
- Page 1 ProDVX GM-75 Glass Mount instruction manual The ProDVX GM-75 Glass Mounts contains the following parts: 1 x 10” foil / sticker 1 x U-frame (8 x VESA holes) 1 x center block 1x sheet with 2 adhesive strips 4 x short VESA screws (M412)
- Page 2 1) Clean the surface with Pro-Screen Cleaner spray Place the foil with the desired size on the glass surface 3) Hold the foil on the left side and pull the backside paper out...
- Page 3 4) Use a solid straight item to even out the foil 5) Even out big bubbles with the straight item (little bubbles will disappear with time)
- Page 4 6) Gently pull down the paper from the frontside 7) Clean the silver foil/sticker with Pro-Screen Cleaner spray and let it dry for 3 minutes. 8) Add the adhesive strips on the backside of the center block where 7.65 mm is mentioned, and apply good pressure when sticking the tape unto the backside of the center block.
- Page 5 9) Slide the center block with the 2 adhesive strips into the U-frame. Screw the U-frame with the center block in it, on the back of the ProDVX display using the 4 VESA screws 11) Remove the tape from the 2 adhesive strips...
- Page 6 Slide the display (with u-frame) to the top and firmly press the adhesive centre block in the middle of the foil and let the centre block rest for 3 minutes. 14) Slide the ProDVX display top-down on to the center block...
- Page 7 15) Use a Phillips screwdriver to tighten the long security screw on top 16) The ProDVX GM-75 Glass Mount is now successfully installed...
