Summary of Contents for TEH LJS665

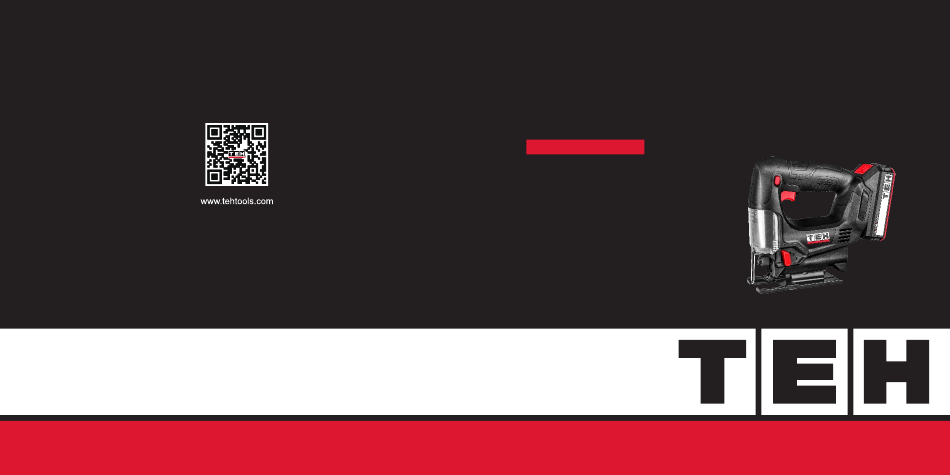

- Page 1 Cordless Jig Saw LJS665 LJS680 Tools for Every Home...
- Page 2 Model LJS665 LJS680 Rated Voltage DC 20V DC 20V Motor Brush Brushless Battery No-Load Speed 0-2900r/min 0-3300r/min Release Max Cutting Depth In Wood Button 65mm 100mm Lock-off Button Max Cutting Depth In Metal 10mm On/Off Switch Compatible Battery LB2.0Ah/LB4.0Ah LB2.0Ah/LB4.0Ah...
-
Page 3: Electrical Safety
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. -
Page 4: Use And Handling Of The Cordless Electrical Power Tool
SPECIAL SAFETY DIRECTIONS FOR BATTERY-OPERATED TOOLS l) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. a) Ensure that the device is switched off before inserting the battery. Inserting a battery into a n) Use the power tool, accessories and tool bits etc. -
Page 5: Residual Risks
e) Connect the charger only to a socket with an earth. Ensure that the mains voltage matches the a) Cuts specifications on the charger rating plate. Risk of electric shock. b) Ear damage if working without ear protection. f) Disconnect the charger from the mains before closing or opening connection to the battery / c) Damage to your health caused by swinging your hands and arms when operating the appliance power tool / device. -
Page 6: Installation Instruction
Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool. NOTE Occasionally lubricate the roller. Hex wrench storage (LJS665) When not in use, store the hex wrench to keep it from being lost. - Page 7 OPERATION INSTRUCTION Cover plate Use the cover plate when cutting decorative veneers, SELECTING THE CUTTING ACTION plastics, etc. It protects sensitive or delicate surfaces from damage. Fit it on the back of the tool base. This tool can be operated with an orbital or a straight line (up and down) cutting action.
-
Page 8: Operation
2. When not operating the tool, depress the lock off button from A side to lock the Turn the tool on without the blade making any contact switch trigger in the OFF position. and wait until the blade attains full speed. Then rest the base flat on the workpiece and gently move the tool To prevent the switch trigger from accidentally pulled, the lock-off button is provided. -
Page 9: Metal Cutting
FINISHING EDGES FRONT FLUSH CUTS To trim edges or make dimensional adjustments, run the blade lightly along the cut edge Loosen the bolt on the back of the base with the hex wrench and slide the base all the way back. Then tighten the bolt to secure the base. - Page 10 GUIDE RAIL ADAPTER SET (ACCESSORY) 2.Circular cuts When cutting circles or arcs of 160 mm or less in radius, install the rip fence as follows. When cutting parallel and uniform width or cutting straight, the use of the guide rail and the guide Insert the rip fence into the rectangular hole on the side of the base with the fence guide facing rail adapter will assure the production of fast and clean cuts.
-
Page 11: Maintenance
1. Limit mark warranty record： To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by TEH Authorized Service Centers, always using TEH replacement parts. post code： IMPORTANT NOTE 1. The invoice and warranty card must be presented at the time of warranty.
