Summary of Contents for TEH LCS165

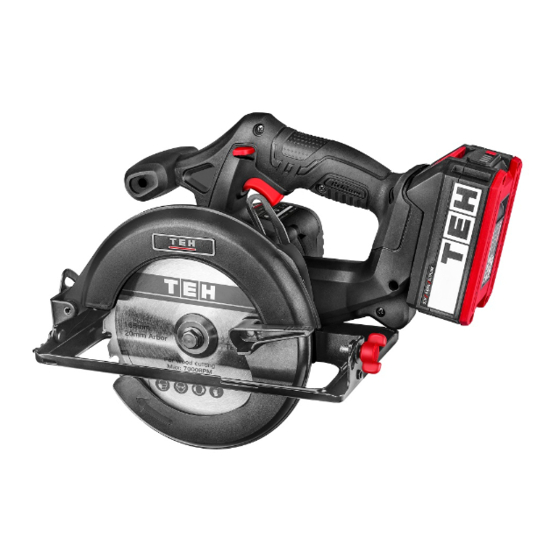

- Page 1 Cordless Circular Saw LCS165 Tools for Every Home...
- Page 2 Model LCS165 On/Off Switch Rated Voltage DC 20V Battery Motor Motor Brush Release Housing Button No-Load Speed 3800r/min Blade Diameter 165mm Lock-off Lever at 0° 55mm Max. Cutting Depth Auxialiary Handle at 45° Bevel 39mm Depth Compatible Battery LB4.0Ah Adjustment...
-
Page 3: Electrical Safety
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. -
Page 4: Use And Handling Of The Cordless Electrical Power Tool
SPECIAL SAFETY DIRECTIONS FOR BATTERY-OPERATED TOOLS l) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. a) Ensure that the device is switched off before inserting the battery. Inserting a battery into a n) Use the power tool, accessories and tool bits etc. -
Page 5: Residual Risks
e) Connect the charger only to a socket with an earth. Ensure that the mains voltage matches the a) Cuts specifications on the charger rating plate. Risk of electric shock. b) Ear damage if working without ear protection. f) Disconnect the charger from the mains before closing or opening connection to the battery / c) Damage to your health caused by swinging your hands and arms when operating the appliance power tool / device. - Page 6 3. Never hold the workpiece in your hands or across your 1. Maintain a firm grip with both hands on the saw and position your arms to resist kickback leg while cutting. Secure the workpiece to a stable forces. Position your body to either side of the blade, but not in line with the blade. Kickback platform.
-
Page 7: Additional Safety Warnings
6. Blade depth and bevel adjusting locking levers must be 5. To check lower guard, open lower guard by hand, then release and watch guard closure. tight and secure before making the cut. If blade adjustment Also check to see that retracting handle does not touch tool housing. Leaving blade exposed is shifts while cutting, it may cause binding and kickback. -
Page 8: Installation Instruction
1. Be sure the blade is installed with teeth pointing marked up at the front of the tool. on the tool. 2. Use only the TEH wrench to install or remove the blade. 15. (For European countries only) Always use the blade which conforms to EN847-1. -
Page 9: Adjusting Depth Of Cut
OPERATION INSTRUCTION SIGHTING For straight cuts, align the A position on the front of the WARNING base with your cutting line. For 45° bevel cuts, align the B position with it. Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool. -
Page 10: Maintenance
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment straight cuts. Simply slide the rip fence up snugly against should be performed by TEH Authorized or Factory Service Centers, always using TEH the side of the workpiece and secure it in position with replacement parts. -
Page 11: Warranty Card
WARRANTY CARD Dear customers, the warranty service for purchasing TEH products is as follows: Under normal use, within one year from the date of purchase. It is guaranteed that the damage is caused by the quality of the tool. The following conditions occur during the warranty period, not covered by the warranty: a.
