BSB Series Industrial Unmanaged Ethernet
BSB Series Industrial Unmanaged Ethernet
Switch with 10/100Base-T(x) Ports and/or
Switch with 10/100Base-T(x) Ports and/or
BPL ( Broadband Power Line Link) User
BPL ( Broadband Power Line Link) User
Manual
Manual
1. About BSB Series Industrial Unmanaged Ethernet Switch
1. About BSB Series Industrial Unmanaged Ethernet Switch

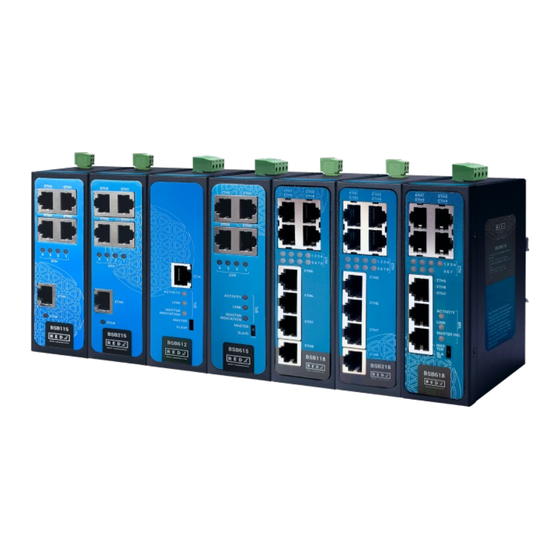

BSB Series Industrial Unmanaged Ethernet Switches are designed for industrial-grade Ethernet, and
particularly for facilities of rugged industry and infrastructure. BSB Series Industrial Unmanaged Ethernet
Switches are tailored to perform various features, such as wide temperature, wide range power input
range... etc. Thus, BSB Series Industrial Unmanaged Ethernet Switches are the best choice for facility
management, sewage treatment, power utility, telecommunication, transportation and all other
applications that require reliable Ethernet connectivity.
BSB Series has models also with REDZ Broadband Power Line (BPL) communication. BPL link allows device
to communicate with full transparent TCP/IP standard over Low Voltage power lines and allows easy
connection between TCP/IP based terminals without use of extra cables.
2. Hardware Features
2. Hardware Features
BSB Series Industrial Unmanaged Ethernet Switches has the versions with and without BPL (Broadband
Power Line) Link.
2.1 Features
2.1 Features
Supports up to 8 x 10/100Base-T(X) ports
AC or DC wide range power options
Supports Full/Half-Duplex, auto MDI/MDI-X on each port
Wide operating temperature range from -25 to 70 °C AC and -40 to 85 °C DC power input versions
Advertisement
Table of Contents
Related Manuals for REDZ BSB Series
Summary of Contents for REDZ BSB Series
- Page 1 Ethernet connectivity. BSB Series has models also with REDZ Broadband Power Line (BPL) communication. BPL link allows device to communicate with full transparent TCP/IP standard over Low Voltage power lines and allows easy connection between TCP/IP based terminals without use of extra cables.
-
Page 2: Installation
Rugged Metal IP-40 housing design DIN-Rail mounting 2.2 Extra Features for Models with BPL 2.2 Extra Features for Models with BPL Supports up to 7 x 10/100Base-T(X) ports + 1 x BPL link Wide range 3 phase AC input Supports up to 30Mbps PHY rate on BPL with Up to 10 hops and 1000 nodes Up to 432 sub-carriers from 2 to 28MHz analog bandwidth Support LDPC-C FEC with 128-bit AES core Plug and play with Master/Slave selection via switch... -
Page 3: Front Panel Description
4. Front Panel Description 4. Front Panel Description 4.1 BSB115 & BSB215 BSB115 & BSB215... - Page 4 10/100Base-T(X) Ethernet ports 1, 2, 3 and 4. ETHERNET Activity LEDs for port 1, 2, 3 and 4. Blinks during ethernet activity. 10/100Base-T(X) Ethernet port 5. ETHERNET Activity LED for port 5. Blinks during ethernet activity. 4.2 BSB118 & BSB218 BSB118 &...
- Page 5 10/100Base-T(X) Ethernet ports 1, 2, 3 and 4. ETHERNET Activity LEDs for port 1, 2, 3 and 4. Blinks during ethernet activity. ETHERNET Activity LEDs for port 5, 6, 7 and 8. Blinks during ethernet activity. 10/100Base-T(X) Ethernet ports 5, 6, 7 and 8. 4.3 BSB612 BSB612 10/100Base-T(X) Ethernet port.
- Page 6 BPL Activity LED. Blinks during BPL & Ethernet activity. BPL Link LED. LED Turns ON if the link can be established. Master Indication LED. LED Turns ON if the device is started as “Master” device. Switch position to select the device as “Master” or “Slave”. Device must be repowered after changing the setting to take into effect.
- Page 7 4.5 BSB618 BSB618 10/100Base-T(X) Ethernet ports 1, 2, 3 and 4. ETHERNET Activity LEDs for port 1, 2, 3 and 4. Blinks during ethernet activity. ETHERNET Activity LEDs for port 5, 6, and 7. Blinks during ethernet activity. 10/100Base-T(X) Ethernet ports 5, 6, and 7. BPL Activity LED.
-
Page 8: Top Panel Description
5. Top Panel Description 5. Top Panel Description 5.1 BSB115 & BSB118 5.1 BSB115 & BSB118 Power Input DC: 5-60V DC. Polarity protected so that the power input can be connected in any direction. Power LED: Turns ON when there is power in device. Reset Button: Reset the device. - Page 9 5.2 BSB215 & BSB218 5.2 BSB215 & BSB218 Power Input AC: 90 - 265V AC (100 – 370V DC), 47Hz to 63Hz AC input. Power LED: Turns ON when there is power in device. Reset Button: Reset the device.
-
Page 10: Ethernet Cables
6. Ethernet Cables 6. Ethernet Cables BSB Series Industrial Unmanaged Ethernet Switches have standard Ethernet ports. According to the link type, the switches use CAT 3, 4, 5, 5e UTP cables to connect to any other network device (PCs, servers, switches, routers, or hubs). -
Page 11: Connection Diagrams
Not Used 7. Connection Diagrams 7. Connection Diagrams BSB Series Industrial Unmanaged Ethernet Switches connections vary based on with and without BPL (Broadband Power Line ) Link versions. 7.1 BSB612 & BSB615 & BSB618 Connection Diagram 7.1 BSB612 & BSB615 & BSB618 Connection Diagram... - Page 12 7.2 BSB115 & BSB118 & BSB215 & BSB218 Connection Diagram BSB115 & BSB118 & BSB215 & BSB218 Connection Diagram 8. System Comparison Between CAT5 and BPL Links 8. System Comparison Between CAT5 and BPL Links CAT5 Based System CAT5 Based System BPL Link Based System BPL Link Based System Media...
-
Page 13: Ordering Information
9. Ordering Information 9. Ordering Information BSB115: BSB115: Industrial Unmanaged Ethernet Switch, 5 x 10/100 T(x) ETH ports, 5-60V DC Power Input BSB118: BSB118: Industrial Unmanaged Ethernet Switch, 8 x 10/100 T(x) ETH ports, 5-60V DC Power Input BSB215: BSB215: Industrial Unmanaged Ethernet Switch, 5 x 10/100 T(x) ETH ports, 90 - 265V AC (100 – 370V DC), 47Hz to 63Hz AC Power Input BSB218: BSB218: Industrial Unmanaged Ethernet Switch, 8 x 10/100 T(x) ETH ports, 90 - 265V AC (100 –...
