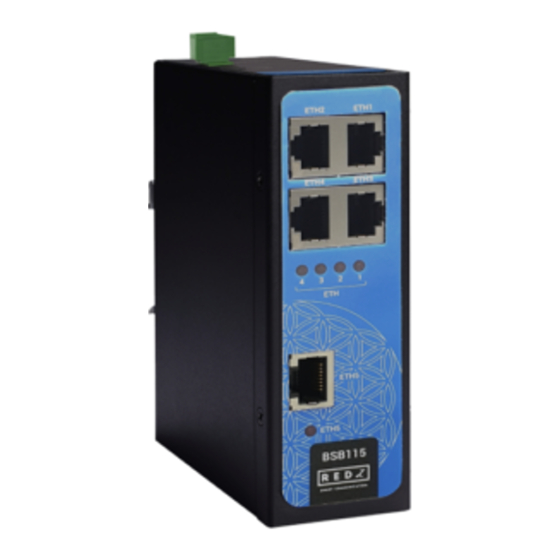

BSB Series Industrial Unmanaged Ethernet Switch
BSB Series Industrial Unmanaged Ethernet Switch
with 10/100Base-T(x) Ports and/or BPL (
with 10/100Base-T(x) Ports and/or BPL (
Broadband Power Line Link) and/or SFP Uplink
Broadband Power Line Link) and/or SFP Uplink
Ports and/or PoE+ Ports User Manual
Ports and/or PoE+ Ports User Manual
1. About BSB Series Industrial Unmanaged Ethernet Switch
1. About BSB Series Industrial Unmanaged Ethernet Switch
BSB Series Industrial Unmanaged Ethernet Switches are designed for industrial-grade Ethernet, and particularly for
facilities of rugged industry and infrastructure. BSB Series Industrial Unmanaged Ethernet Switches are tailored to
perform various features, such as wide temperature, wide range power input range... etc. Thus, BSB Series Industrial
Unmanaged Ethernet Switches are the best choice for facility management, sewage treatment, power utility,
telecommunication, transportation and all other applications that require reliable Ethernet connectivity.
BSB Series has models also with REDZ Broadband Power Line (BPL) communication. BPL link allows device to
communicate with full transparent TCP/IP standard over Low Voltage power lines and allows easy connection
between TCP/IP based terminals without use of extra cables.
BSB Series has models also with SFP ports for Fiber connectivity. BSB Series with SFP ports offers fiber and ethernet
connectivity in same device with plug and play SFP ports. Wide range of SFP modules are available to be used with
BSB series.
BSB Series has models also with PoE+ ports for Power over Ethernet connectivity. BSB Series Industrial Unmanaged
Ethernet Switches with PoE+ ports can power up to 36W device on a single port and total combined power supply is
90W. Additional PoE splitter can be used to separate power and data for field devices.
2. Hardware Features
2. Hardware Features
BSB Series Industrial Unmanaged Ethernet Switches has the versions with and without BPL (Broadband Power Line) Link
and with and without SFP Ports.
2.1 Features
2.1 Features
Supports up to 8 x 10/100Base-T(X) ports
AC or DC wide range power options
Supports Full/Half-Duplex, auto MDI/MDI-X on each port
Wide operating temperature range from -25 to 70 °C AC and -40 to 85 °C DC power input versions
Rugged Metal IP-40 housing design
Advertisement
Table of Contents
Related Manuals for REDZ BSB Series
Summary of Contents for REDZ BSB Series
- Page 1 TCP/IP based terminals without use of extra cables. BSB Series has models also with SFP ports for Fiber connectivity. BSB Series with SFP ports offers fiber and ethernet connectivity in same device with plug and play SFP ports. Wide range of SFP modules are available to be used with BSB series.
- Page 2 DIN-Rail mounting 2.2 Extra Features for Models with BPL 2.2 Extra Features for Models with BPL Supports up to 7 x 10/100Base-T(X) ports + 1 x BPL link Wide range 3 phase AC input Supports up to 30Mbps PHY rate on BPL with Up to 10 hops and 1000 nodes Up to 432 sub-carriers from 2 to 28MHz analog bandwidth Support LDPC-C FEC with 128-bit AES core Plug and play with Master/Slave selection via switch...
-
Page 3: Installation
DIN-Rail mounting 3. Installation 3. Installation Each switch has a Din-Rail kit on rear panel. The Din-Rail kit helps switch to fix on the Din-Rail. Slant the switch and mount the metal spring to Din-Rail. Then Push the switch toward the Din-Rail until you heard a “click” sound. 4. - Page 4 1. 10/100Base-T(X) Ethernet ports 1, 2, 3 and 4. 2. ETHERNET Activity LEDs for port 1, 2, 3 and 4. Blinks during ethernet activity. 3. 10/100Base-T(X) Ethernet port 5. 4. ETHERNET Activity LED for port 5. Blinks during ethernet activity. 4.2 BSB118 &...
- Page 5 1. 10/100Base-T(X) Ethernet ports 1, 2, 3 and 4. 2. ETHERNET Activity LEDs for port 1, 2, 3, 4, 5, 6, 7 and 8. Blinks during ethernet activity. 3. ETHERNET Activity LEDs for SFP Ports 1 and 2. There are 2 LEDs for each port. One Blinks during ethernet activity and one is steady when speed is Gigabit .
- Page 6 2. ETHERNET Activity LEDs for port 1, 2, 3, 4, 5, 6, 7 and 8. Blinks during ethernet activity. 3. 10/100Base-T(X) Ethernet ports 5, 6, 7 and 8. Supports PoE+ on all ports 90 Watt Power Supply combined for all ports Maximum 36 Watt per port 4.5 BSB612 BSB612...
- Page 7 1. 10/100Base-T(X) Ethernet ports 1, 2, 3 and 4. 2. ETHERNET Activity LEDs for port 1, 2, 3 and 4. Blinks during ethernet activity. 3. BPL Activity LED. Blinks during BPL & Ethernet activity. 4. BPL Link LED. LED Turns ON if the link can be established. 5.
-
Page 8: Top Panel Description
3. ETHERNET Activity LEDs for port 5, 6, and 7. Blinks during ethernet activity. 4. 10/100Base-T(X) Ethernet ports 5, 6, and 7. 5. BPL Activity LED. Blinks during BPL & Ethernet activity. 6. BPL Link LED. LED Turns ON if the link can be established. 7. - Page 9 1. Power Input AC: 90 - 265V AC (100 – 370V DC), 47Hz to 63Hz AC input. 2. Power LED: Turns ON when there is power in device. 3. Reset Button: Reset the device. 5.3 BSB268 5.3 BSB268 1. Power Input AC: 100 - 240V AC (120 – 370V DC), 50Hz to 60Hz AC Wide Range Power Input 90Watt Power Supply 2.
-
Page 10: Cable Type And Specifications
6. Ethernet Cables, SFP Module Options BSB Series Industrial Unmanaged Ethernet Switches have standard Ethernet ports. According to the link type, the switches use CAT 3, 4, 5, 5e UTP cables to connect to any other network device (PCs, servers, switches, routers, or hubs). - Page 11 Pin Number Pin Number Description Description Not Used Not Used Not Used Not Used 6.3 SFP Module Options 6.3 SFP Module Options Following SFP modules are available to be used with BSB SFP versons Technical Technical Model Name Model Name Dexcription Dexcription SFP Type...
- Page 12 850nm, 550m, black or beige applications both device Duplex Industrial extraction lever support even higher rates at shorter distances. 1.25G Bidi SFP, 1310nm- CE-GLC-BX- TX/1550nm-RX, 1Gbit/s SFP 3km, SC or LC Port, Industrial 1.25G Bidi SFP, 1550nm- CE-GLC-BX- TX/1310nm-RX, 1Gbit/s SFP BX (officially 3km, SC or LC BX10) –...
- Page 13 1000BASE-T ports integrated into most routers and switches, 1000BASE-T SFPs usually cannot operate at 100BASE-TX speeds. LH – 1310 nm, for a maximum of 10KM at 1.25 Gbit/s (gigabit 1.25G, Dual Single Mode Ethernet). Other Connect 2 x LC-LC SM GLC-LH-SMD Fiber, 1310nm, 1Gbit/s SFP...
- Page 14 - Multi-mode fiber, LC connector, with blue color coding FS – 1300 nm, for a distance up to 5 km. LFX (name dependent on manufacturer) – 1310 nm, for a distance up to 5 km. Available SFP module from REDZ: Model Name Model Name...
- Page 15 - 1 Gbit/s multi-mode fiber, LC connector, with black or beige extraction lever SX – 850 nm, for a maximum of 550 m at 1.25 Gbit/s (gigabit Ethernet). Other multi-mode SFP applications support even higher rates at shorter distances. Available SFP module from REDZ: Model Name Model Name...
-
Page 16: Connection Diagrams
Port, 100M, Industrial 8. Connection Diagrams 8. Connection Diagrams BSB Series Industrial Unmanaged Ethernet Switches connections vary based on with and without BPL (Broadband Power Line ) Link versions. 8.1 Connection Diagram for BPL Versions 8.1 Connection Diagram for BPL Versions... - Page 17 8.2 Connection Diagram for ETH Versions Connection Diagram for ETH Versions 8.3 Connection Diagram for SFP Port Versions Connection Diagram for SFP Port Versions...
- Page 18 8.4 Connection Diagram for PoE+ Versions Connection Diagram for PoE+ Versions 9. System Comparison Between CAT5 and BPL Links 9. System Comparison Between CAT5 and BPL Links CAT5 Based System CAT5 Based System BPL Link Based System BPL Link Based System Media CAT5 Power Line...
-
Page 19: Ordering Information
Installment Cost High Total Cost High 10. Ordering Information 10. Ordering Information BSB115: BSB115: Industrial Unmanaged Ethernet Switch, 5 x 10/100 T(x) ETH ports, 5- 48 (max. 60V) DC Power Input BSB118: BSB118: Industrial Unmanaged Ethernet Switch, 8 x 10/100 T(x) ETH ports, 5- 48 (max. 60V) DC Power Input BSB120: BSB120: Industrial Unmanaged Ethernet Switch, 8 x 10/100 T(x) ETH ports and 2 x SFP Uplink Ports, 5- 48 (max.
