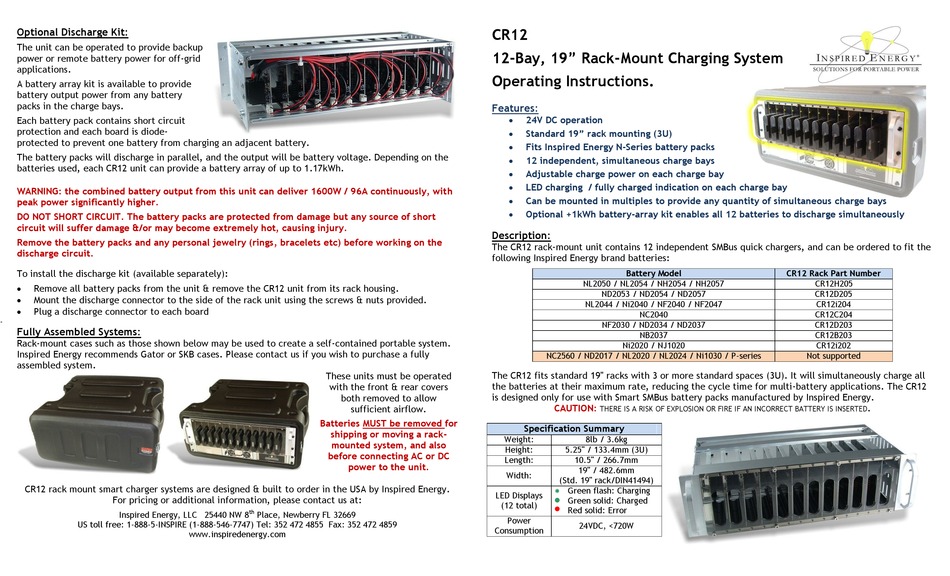

Inspired Energy CR12 Operating Instructions

Optional Discharge Kit:
The unit can be operated to provide backup
power or remote battery power for off-grid
applications.
A battery array kit is available to provide
battery output power from any battery
packs in the charge bays.
Each battery pack contains short circuit
protection and each board is diode-
protected to prevent one battery from charging an adjacent battery.
The battery packs will discharge in parallel, and the output will be battery voltage. Depending on the
batteries used, each CR12 unit can provide a battery array of up to 1.17kWh.
WARNING: the combined battery output from this unit can deliver 1600W / 96A continuously, with
peak power significantly higher.
DO NOT SHORT CIRCUIT. The battery packs are protected from damage but any source of short
circuit will suffer damage &/or may become extremely hot, causing injury.
Remove the battery packs and any personal jewelry (rings, bracelets etc) before working on the
discharge circuit.
To install the discharge kit (available separately):
 Remove all battery packs from the unit & remove the CR12 unit from its rack housing.

Mount the discharge connector to the side of the rack unit using the screws & nuts provided.

Plug a discharge connector to each board
-
Fully Assembled Systems:
Rack-mount cases such as those shown below may be used to create a self-contained portable system.
Inspired Energy recommends Gator or SKB cases. Please contact us if you wish to purchase a fully
assembled system.
CR12 rack mount smart charger systems are designed & built to order in the USA by Inspired Energy.
For pricing or additional information, please contact us at:
Inspired Energy, LLC 25440 NW 8
US toll free: 1-888-5-INSPIRE (1-888-546-7747) Tel: 352 472 4855 Fax: 352 472 4859
These units must be operated
with the front & rear covers
both removed to allow
sufficient airflow.
Batteries MUST be removed for
shipping or moving a rack-
mounted system, and also
before connecting AC or DC
power to the unit.
th
Place, Newberry FL 32669
www.inspiredenergy.com

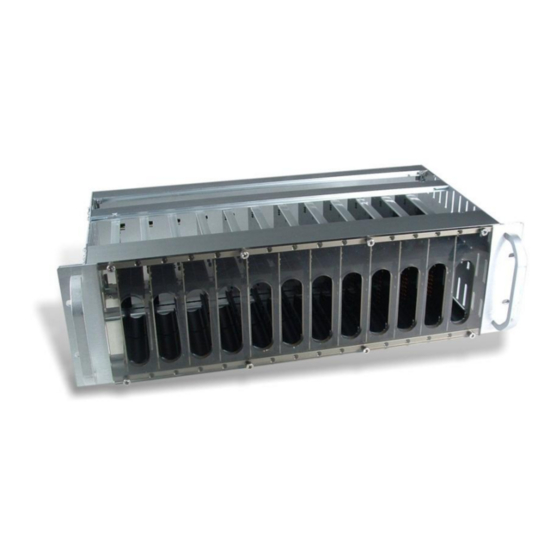

CR12
12-Bay, 19" Rack-Mount Charging System
Operating Instructions.
Features:

24V DC operation

Standard 19" rack mounting (3U)

Fits Inspired Energy N-Series battery packs
 12 independent, simultaneous charge bays

Adjustable charge power on each charge bay
 LED charging / fully charged indication on each charge bay

Can be mounted in multiples to provide any quantity of simultaneous charge bays
 Optional +1kWh battery-array kit enables all 12 batteries to discharge simultaneously
Description:
The CR12 rack-mount unit contains 12 independent SMBus quick chargers, and can be ordered to fit the
following Inspired Energy brand batteries:
Battery Model
NL2050 / NL2054 / NH2054 / NH2057
ND2053 / ND2054 / ND2057
NL2044 / Ni2040 / NF2040 / NF2047
NC2040
NF2030 / ND2034 / ND2037
NB2037
Ni2020 / NJ1020
NC2560 / ND2017 / NL2020 / NL2024 / Ni1030 / P-series
The CR12 fits standard 19" racks with 3 or more standard spaces (3U). It will simultaneously charge all
the batteries at their maximum rate, reducing the cycle time for multi-battery applications. The CR12
is designed only for use with Smart SMBus battery packs manufactured by Inspired Energy.
CAUTION:
THERE IS A RISK OF EXPLOSION OR FIRE IF AN INCORRECT BATTERY IS INSERTED
Specification Summary
Weight: 8lb / 3.6kg
Height: 5.25" / 133.4mm (3U)
Length: 10.5" / 266.7mm
19" / 482.6mm
Width:
(Std. 19" rack/DIN41494)
Green flash: Charging
LED Displays
Green solid: Charged
(12 total)
Red solid: Error
Power
24VDC, <720W
Consumption
CR12 Rack Part Number
CR12H205
CR12D205
CR12i204
CR12C204
CR12D203
CR12B203
CR12i202
Not supported
.
