What's in the box?
1. One PH1000 desktop charger/calibrator unit
2. One 36-38VDC power supply unit.
3. One US mains cable (PH1000A). European Chargers (PH1000E) ship with a European 2-pin mains cord,
UK Chargers (PH1000U) are packed with a UK 3-pin mains cord. PH1000X ships without an AC cord.
Safety
1. Do not expose the charger or power supply to water or conductive liquids.
2. Do not open the charger or power supply case. There are no user serviceable parts inside.
3. Do not cover the charger case, as this could cause overheating.
4. Place the charger in a cool spot, away from external heat sources.
4. Caution - during recalibration the battery connector and the charger will become warm.
Setting up your Charger
Place the charger unit on a flat, level surface away from sources of heat and moisture. Plug the power supply
into the charger unit and into the AC supply using the cable supplied.
Charging
Connect the high power battery connector to the charger connector. The connector is fully seated when the
charger and battery cases touch. The LEDs in the charger status window will provide status information as
detailed below, and the charger will automatically begin to charge the battery. The LCD fuel gauge on the
battery will flash to indicate charging is in process.
LED Indication:
The status of the battery is indicated by the LEDs visible in the status window:
Recharge Time:
Different battery packs will require differing recharge times. The times given below are for a full charge from
0% to 100% state of charge.
908022 PH1000 Instructions 18-03-23 90802222
Green flashing:
Battery charging
Green solid:
Battery fully charged
Blue flashing:
Battery in calibration mode
Blue solid:
Battery fuel gauge calibrated
Red flashing:
Battery fuel gauge in need of recalibration
Red solid:
Error
Battery Model
Full Recharge Time
PB3037HD30
PD3074HD30
PD3077HD30
PH2059HD34
PH3059HD25
PH2054HD34
PH3054HD25

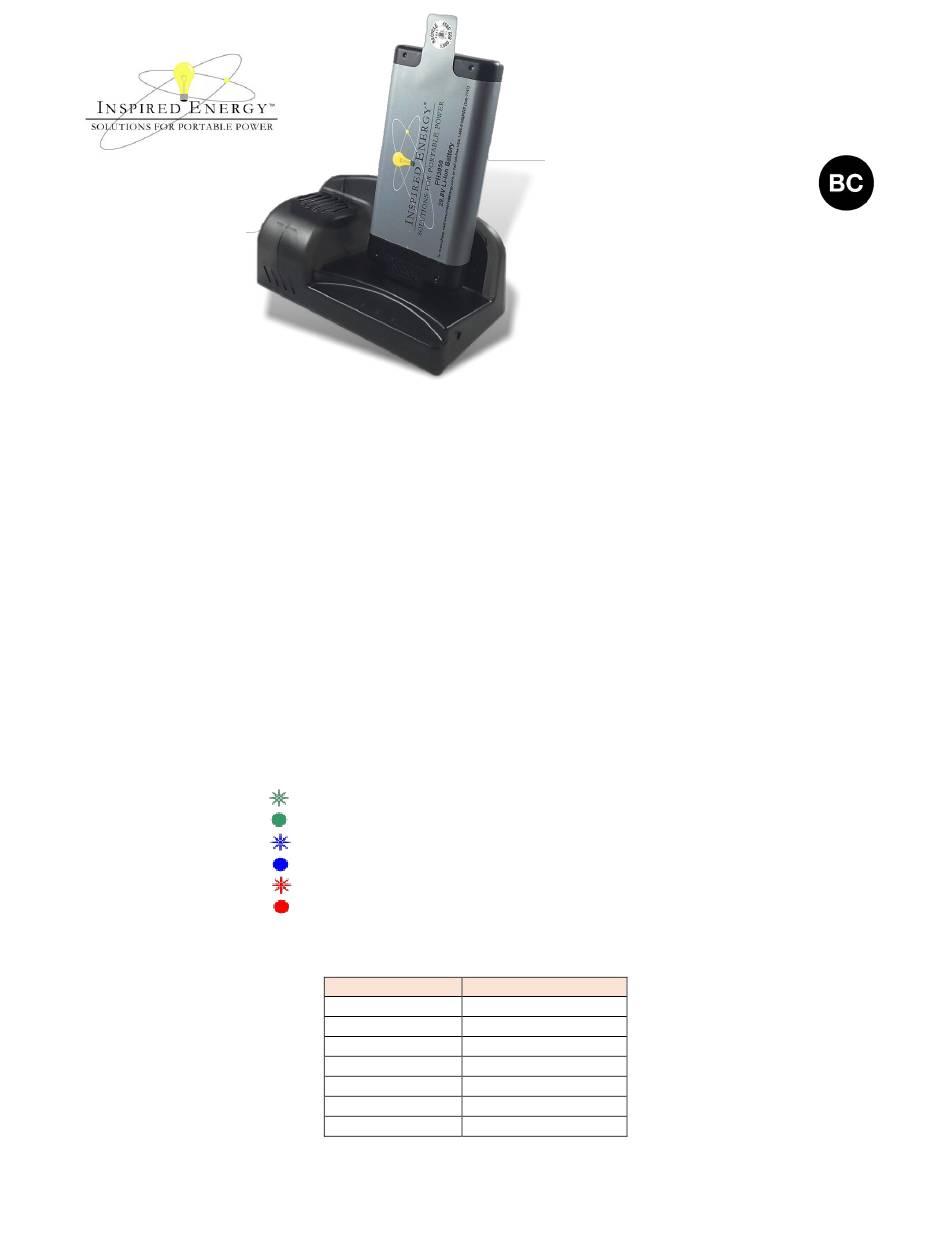

PH1000A/E/U Desktop Smart
Charger/Calibrator
The PH1000 is a standalone desktop
smart battery charger with the
ability to recalibrate the fuel gauge
on all Inspired Energy® "P"-series
high-power, smart battery packs.
2½ hrs
2½ hrs
2½ hrs
4 hrs
1½ hrs
3 hrs
2½ hrs
Instructions
Advertisement
Table of Contents
Related Manuals for Inspired Energy PH1000A
Summary of Contents for Inspired Energy PH1000A
- Page 1 1. One PH1000 desktop charger/calibrator unit 2. One 36-38VDC power supply unit. 3. One US mains cable (PH1000A). European Chargers (PH1000E) ship with a European 2-pin mains cord, UK Chargers (PH1000U) are packed with a UK 3-pin mains cord. PH1000X ships without an AC cord.
- Page 2 PH1000A/E/U Desktop Smart Charger/Calibrator Instructions Recalibration If the battery is in need of fuel gauge recalibration, the red LED will flash upon insertion of the battery. This indicator provides feedback to the user on the accuracy of the fuel gauge and avoids unnecessary battery calibration cycles.
- Page 3 When an Inspired Energy battery achieves a max error of 10% the recalibration bit is set. Some devices use this recalibration bit to trigger a note on the device screen to tell the user to recalibrate the battery.
