Summary of Contents for Forenex FEB710-R39

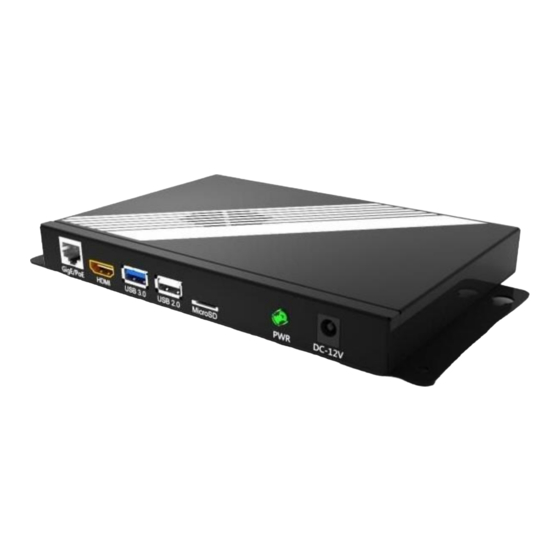

- Page 1 FEB710-R39 User Manual FEB710-R39/K39 ARM BOX PC User Manual (Preliminary) Fanless ultra-compact Dual Core Cortex A72+Quad core Cortex A53 ARM system for Industrial/Advertising Applications Version: V1.0 Document No: doc-FEB710-R39V10 PCB Bare Board: PB7968MV11...
- Page 2 FEB710-R39 User Manual Packing List 1 x FEB710-R39 series BoxPC. 1 x CD includes User Manual/APIs 2 x ANTENNA, 2.4/5Ghz, 2dBi, SMA(ST. PR), bendable, 110mm. 1 x Adaptor, DC-12V/1A. Ordering Information Part Number: FEB710x-R/K39yz-MN • : Operating Temperature Type Commercial (0°...
- Page 3 FEB710-R39 User Manual Revision histories Rev. No. Date Owner Substantial Changes 2019/09 Victor First issue.
-
Page 4: Table Of Contents
FEB710-R39 User Manual Table of Contents General Information ......................6 1-1. Features ..........................6 1-1-1. ARM based System ....................... 6 1-1-2. Ultra compact, Ruggedized and Fanless ................6 1-1-3. The Operating Temperature ....................7 1-1-4. Storage Expansion ......................... 7 1-1-5. Networking Option ....................... 7 1-1-6. - Page 5 FEB710-R39 User Manual 2-11. HDMI®-2.0 port ........................15 2-12. RS232 Debug Port ........................ 16 2-13. GPIOs Port (Option) ......................16 Software and Technical Supports ..................17 3-1. Android Programming Guide ....................17 3-1-1. ADB installation ......................17 3-1-2. To install APK software over the ADB function of PC :..........20 3-1-3.
-
Page 6: General Information
FEB710-R39 User Manual 1. General Information Forenex's FEB710 Box-PC is an ultra-compact solution designed to take full advantage of the lowest power, fanless system design and embed powerful graphic engines provide optimized performance on supporting multi-format video decoders including H.264/H.265/VP9up to4Kx2K, especially, H.264/H.265 decoders support 10bits coding, and also supports H.264/MVC/VP8 encoders by 1080p@30fps, high-quality JPEG... -
Page 7: The Operating Temperature
FEB710-R39 User Manual 1-1-3. The Operating Temperature Provide a wide range from 0°C up to 70°C, suitable for critical environment applications. **Note: The Operating Temperature is a result of the test performed in experimental chamber. It is highly suggested to execute a solid testing under actually application environment. -
Page 8: Product Specifications
FEB710-R39 User Manual 1-2. Product Specifications Processor: Rockchip3399 Arm Cortex®-A72 + Cortex®-A53 System Memory: 1GB/2GB(default) LPDDR3L-1600 SDRAM Storage: 4GB/8GB(default)/16GB eMMC Flash memory Graphics: ARM Mali-T860MP4 (Embedded 3D GPU) Supports completely compatible with OpenGL ES1.1/2.0/3.0/3.1, OpenCL, DX11 ... - Page 9 FEB710-R39 User Manual Front Panel I/O: 1 x DC Power Jack 1 x Power LED 1 x Gigabit Ethernet Port (supports optional IEEE 802.3at, PoE+) 1 x Micro-SD Card Slot 1 x USB 2.0 Type A ...
-
Page 10: Outline Dimensions
FEB710-R39 User Manual 1-3. Outline Dimensions -10-... -
Page 11: Peripherals Port Layout Diagram
FEB710-R39 User Manual 1-4. Peripherals Port layout diagram 1-4-1. Front Panel 1-4-2. Rear Panel -11-... -
Page 12: Peripherals Port Description
FEB710-R39 User Manual 2. Peripherals Port Description 2-1. DC Power Jack On front panel, carries external power input. Pin Assignment: Connector: ( DC Power Jack ) Pin number Description DC12V ~ 24V Sleeve 2-2. Power switch On rear panel. -
Page 13: Usb 2.0 Port
FEB710-R39 User Manual 2-5. USB 2.0 Port On Front panel. The FEB710-RK39 provides a USB 2.0 port gives complete hot plug capability and complies with USB UHCI, Rev. 2.0. Pin Assignment: Connector: ( USB Type A ) -
Page 14: Micro Sd/Sdhc Card Slot
FEB710-R39 User Manual 2-7. Micro SD/SDHC card Slot On Front panel. Micro SD/SDHC card slot without spring and enable the SD storage up to 32GB size. Providing as an extra-storage device. Prevent more frequent and larger data access on eMMC memory makes its lifespan shorter. -
Page 15: Hdmi®-2.0 Port
FEB710-R39 User Manual Sleeve 2-11. HDMI®-2.0 port On front panel. The HDMI port uses an HDMI Type-A receptacle connector. It allows connecting the digital video devices which utilize a high definition video signal without a HDCP. Support HDMI® V2.0, Res. up to 4Kx2K @60fps, HDCP1.4 /2.2 ... -
Page 16: Rs232 Debug Port
FEB710-R39 User Manual 2-12. RS232 Debug Port On rear panel. Pin Assignment. Connector: ( DB-9/Male ) Pin number Description COM-GND Console-RX (SIN), RS232 level Console-TX (SOUT), RS232 level COM-GND 2-13. GPIOs Port (Option) On rear panel. ... -
Page 17: Software And Technical Supports
FEB710-R39 User Manual 3. Software and Technical Supports 3-1. Android Programming Guide 3-1-1. ADB installation Originally, the USB3.0 was defaulted as host mode. Before use function ADB, the USB 3.0 Port have to be set to device mode by following steps. - Page 18 FEB710-R39 User Manual Step3. After finished above action, a new item "Developer Options" will appear in the system block. Step4. Get into the new item "Developer Options" and turn on the USB debugging function. Note: Please do not change the others that you do not understand what it does.
- Page 19 FEB710-R39 User Manual Step5. Scroll to "Settings > USB" ● Then Scroll to "USB > ADB/HOST" ● Set USB3.0 as ADB -19-...
-
Page 20: To Install Apk Software Over The Adb Function Of Pc
FEB710-R39 User Manual 3-1-2. To install APK software over the ADB function of PC : Complete the connectivity between USB3.0 (Type A) port of FEB710-RK39 and USB port of PC. Enter the command string "adb install xxxxx.apk" from pc that will begin user’s APK software installation. -
Page 21: Linux Programming Guide
FEB710-R39 User Manual 3-2. Linux Programming Guide 3-2-1. GPIOs installation GPIOs definition Position PIN name Linux node/Note Direction PIN 1 DIN2 /sys/class/gpio/gpio76/value In PIN 2 DOUT2 /sys/class/gpio/gpio69/value Out PIN 3 DIN0 /sys/class/gpio/gpio74/value PIN 4 DOUT1 /sys/class/gpio/gpio68/value Out PIN 5...
