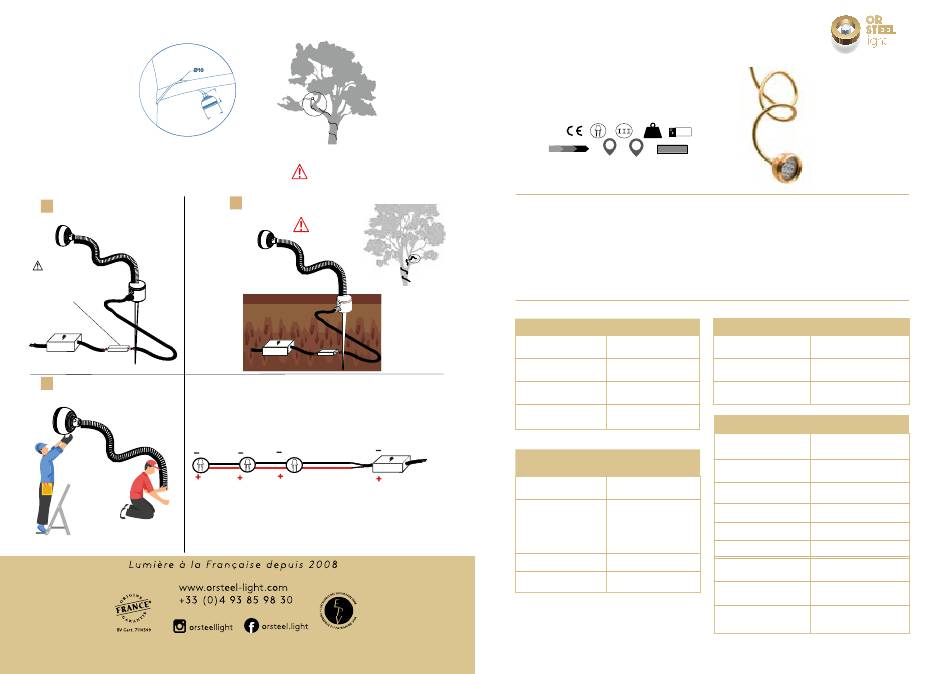

ORSTEEL Light BAIETA 24VDC Technical Manual

TECHNICAL SHEMATICS
INSTALLATION SHEMATICS
1
1
3
Not submerged
4 4
USE A IP68 CONNECTOR
IP67
Connecteur
IP68
3
Parallel wiring 24VDC
3
All data are given for information purposes only. They do not constitute a contractual commitment on our part and are subject
to change at any time.
60 60
64 64
Two people are needed to install the
projector, one person wraps it around
the shaft, while the other holds the
projector head.
2
Never rewind
a projector
already
installed.
3
IP67
Connecteur
IP68
IP68
TECHNICAL MANUAL
BAIETA
24VDC
NGR
2,1
IP68 IK10
A A+ A++
T° max 55°C
The Baieta marker light is magnificent. The upper part of the shaft of this top
of the range marker light is flexible, so you can turn the head towards a specific
object.
It uses 7 high power LED lights to illuminate driveways, pathways, stairs,
landscaped gardens, small trees, etc.It has been designed particularly for
landscape architects and will blend perfectly into all your green spaces.
Electrical features
POWER 7x2,5W
SUPPLY 24VDC
POWER Not included
SUPPLY
WIRING Parallel
Characteristics
lighting techniques
AVERAGE LIFE OF THE 60 000 hours
LED Certificated L90 B10
2700K - 3000K -
COLOUR EMISSION
4000K - 6000K
RED - GREEN
BLUE - AMBER
BEAM 10°-25°-40-115°
INITIAL OUTFLOW 1757lm at 3000k
Mechanical characteristics
3000x64x60
SIZE
WEIGHT 2.1kg
MATERIAL Brass -Bronze
General characreristics
OPERATING - 20°c ~+ 60°
TEMPERATURE
PROTECTION RAITING IP68
RESISTANCE INDEX IK10
A / A+ / A++
ENERGY CLASS
APPLICANCE CLASS CLASS III
WALKOVER FIXTURE NO
DRIVE-OVER FIXTURE NO
POWER SUPPLY Supply wire 2x0,5
CABLES mm2 in IP68
PHOTOBIOLOGICAL Risk group I
SAFETY
