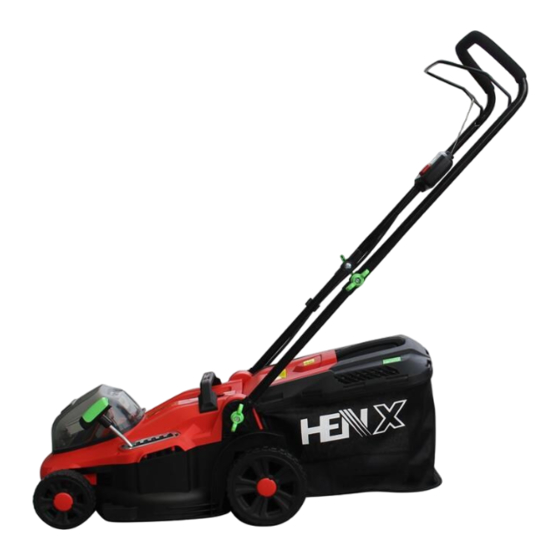

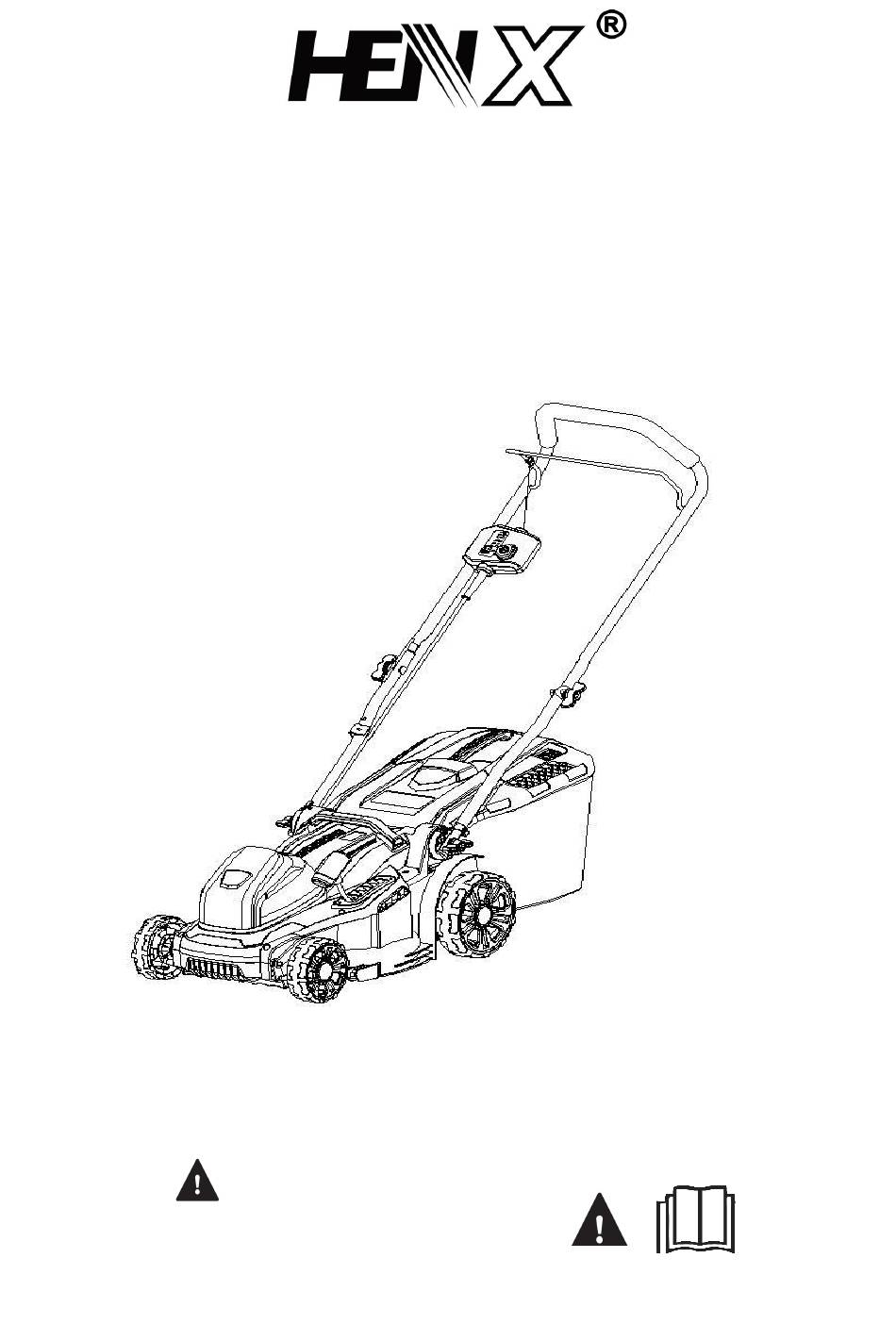

- Page 1 40-Volt Cordless Lawn Mower A40GC14B01 OPERATOR’S MANUAL Original Instructions WARNING: Read all safety rules and instructions carefully before operating this tool. Improper use can cause serious or fatal injury.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Symbols............................3-5 Safety Instructions........................5-10 Introduction............................11 Specifications..............................11 Assembly............................12 Description..........................13-14 Operation............................15-21 Maintenance..........................22-25 Troubleshooting..........................26-27 Warranty............................28 Part List..................................29-30 IMPORTANT Read and understand this manual before assembling or operating this appliance. Improper use of this appliance can cause severe injury or death. Keep this manual for future reference. -
Page 3: Safety Symbols
SAFETY SYMBOLS This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Safety Alert Indicates a potential personal injury hazard. Always wear safety goggles or safety glasses with side shields and a Eye Protection full face shield when operating this product. - Page 4 Blades continue to rotate after the motor is switched off-Remove Beware of sharp blades disabling device before maintenance. This product complies with applicable EC directives. This product uses lithium-ion (Li-ion) batteries. Local, state, or federal laws may prohibit disposal of batteries in ordinary trash. Consult your Recycle Symbols local waste authority for information regarding available recycling and/or disposal options.
-
Page 5: Safety Instructions
Alternating Current Type of current Direct Current Type or a characteristic of current No Load Speed Rotational speed, at no load ... /min Per Minute Revolutions per minute WARNING: To ensure safety and reliability, all repairs should be performed by a qualified service technician. SAFETY INSTRUCTIONS WARNING: Read these instructions carefully, be familiar with the controls and the proper use of the machine. - Page 6 reach of children. 9) Maintain Lawn Mower With Care – Keep cutting edges sharp and clean for best and safest performance. 10) Keep guards in place and in working order. 11) Keep blades sharp. 12) Keep hands and feet away from cutting area. 13) Objects struck by the lawn mower blade can cause severe injuries to persons.
- Page 7 While mowing, always wear substantial footwear and long trousers. Do not operate the machine when barefoot or wearing open sandals, always wear substantial footwear and long trousers. Thoroughly inspect the area where the machine is to be used and remove all stones, sticks, wires, bones and other foreign ...
- Page 8 Never operate the mower with damaged safety devices. Failure to do so can result in personal injury. If situations occur that are not covered in this manual, use care and good judgment. Contact HENX Customer Service for ...
- Page 9 Ensure replacement cutting means of the right type are used. If the mower’s built-in overload protection switch frequently trips, contact HENX Customer Service or your Closest service center. Do not wash the mower with a hose; avoid getting water in the motor and electrical connections.
- Page 10 Never remove or tamper with safety devices. Regularly check their proper operation. Never do anything to interfere with the intended function of a safety device or to reduce the protection provided by a safety device. Always stop the motor before making adjustments to a wheel or a cutting-height adjustment. ...
-
Page 11: Introduction
866-6788989 Should you experience any problem you cannot easily remedy, please contact HENX customer service center This manual contains important information on the safe assembly, operation and maintenance of your mower. Read it carefully before using the mower. -
Page 12: Assembly
APPROXIMATE RUNNING TIME Battery pack type Lithium-ion A40B25B01 30min NOTICE: The actual running time will vary with grass condition: species, density, moisture, etc. ASSEMBLY WARNING: To prevent accidental starting that could cause serious personal injury, always remove the battery pack from the tool when assembling parts. -
Page 13: Description
LIST OF CONTENTS PART NAME QUANTITY Lawn mower Grass bag Side Discharge Chute Operator’s manual Accessories DESCRIPTION A40GC14B01 Handle Bail switch Control panel Start button Side rail(upper) High/low speed button Locking knob(upper) Rear discharge door Wire clamp Side rail(lower) Handle... - Page 14 Before use of this product, familiarize yourself with all operating features and safety rules. START BUTTON A40GC14B01 The start button must be pressed down before the motor can be started. WARNING: The bail switch and the safety button are safety devices.
-
Page 15: Operation
OPERATION ADJUSTING THE HEIGHT OF HANDLE WARNING: Do not attempt to start the mower until the handle has been locked at one of the three preset operating positions (lower/middle/higher). 1. LOCKED STORAGE POSITION: Your mower is shipped with the upper and the lower side rails in the compact, locked position (Fig. - Page 16 ATTACHING/REMOVING THE GRASS BAG WARNING: Do not at any time make any adjustment to the lawn mower without first stopping the motor, removing the battery pack and waiting for the blade to stop rotating. NOTICE: Remove the side discharge chute before attaching the grass bag on the mower; 1.
- Page 17 height. The mower can be set to 6 cutting heights between 30mm and 80mm. Choose the proper cutting height according to the type and condition of the grass. To raise the blade height 1. Grasp the cutting height adjustment lever, and move it outwards. 2.
- Page 18 TO ATTACH/DETACH THE BATTERY PACK (Fig. 6) CHARGE BEFORE FIRST USE. A40GC14B01 WARNING: If any parts are broken or missing, do not attempt to Battery release button attach the battery pack to the mower or operate the mower until the broken or missing parts are replaced.
- Page 19 STARTING/STOPPING THE MOWER (Fig. 7 & 8)（A40GC14B01） WARNING: The operation of any lawn mower can result in foreign objects being thrown into your or others’ eyes, which can damage eyes severely. Always wear safety glasses while operating the mower or while performing any adjustments or repairs on the mower.
- Page 20 MOWER OVERLOAD PROTECTION To prevent overload conditions, do not try to remove too much grass at one time. Slow down your cutting pace or raise the cut height. Your mower has built-in overload circuit protection. When the mower is overloaded, the motor will stop and the power indicator on the mower will flash red.
- Page 21 Sight and hold the line level with a vertical tree… Sight and hold the line level with a pole… or a corner of a building… or a fence post...
-
Page 22: Maintenance
MAINTENANCE WARNING: To avoid serious personal injury, always remove the battery pack from the mower before cleaning or performing any maintenance. WARNING: When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. - Page 23 A worn or damaged blade can break, causing blade pieces to be thrown from the mower. If the blades are found to be bent, take the lawn mower to an authorized HENX service center for inspection.
- Page 24 SHARPING FREQUENCY Sharpening the blade twice during a mowing season is usually sufficient under normal circumstances. Sand causes the blade to dull quickly; if your lawn has sandy soil, more frequent sharpening may be required. WHEN SHARPENING THE BLADE: Make sure that the blade remains balanced. ...
- Page 25 STORING THE MOWER The following steps should be taken in order to prepare the lawn mower for storage. 1. Remove the battery pack from the mower and store it at room temperature in a dry location. 2. Clean the mower as described earlier in the maintenance section. 3.
-
Page 26: Troubleshooting
TROUBLESHOOTING WARNING: Always remove the battery pack when servicing or transporting the mower. Always protect your hands by wearing heavy gloves or wrapping the cutting edges with rags or other materials when performing any maintenance on the mower blade. Problem Cause Solution The battery pack is depleted. - Page 27 Problem Cause Solution Wet grass clippings are sticking to the Wait until the grass dries before mowing. The mower does not mulch underside of the deck. Raise the deck to a higher cutting height properly The mower is set to cut too much grass at ...
-
Page 28: Warranty
FOR 2 YEAR from the date of original retail purchase, this HENX product is warranted against defects in material or workmanship. Defective product will receive free repair. FOR 2 YEAR from the date of original retail purchase, the HENX battery pack and charger are warranted against defects in material or workmanship. Defective product will receive free repair. -
Page 29: Part List
PARTS LIST 40V LITHIUM-ION CORDLESS LAWN MOWER MODEL NUMBER The Model Number will be found on the Nameplate attached to the rear-discharge door of the lawn mower. Always mention the Model Number when ordering parts for this tool. EXPLODED DRAWING A40GC14B01... - Page 30 PARTS LIST Part Name Quantity Grass Bag Side Discharge Chute Wire clamp Bolt sleeve Locking knob Cutting-height adjustment lever Wave washer Rear wheel Flat washer Split pin Hubcap Front wheel Blade adapter Blade Flat washer Spring washer Hex bolt To comply with European Directive 2012/19/EU concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g.
- Page 31 Bring Power to Your Garden. www.henxpower.com...
