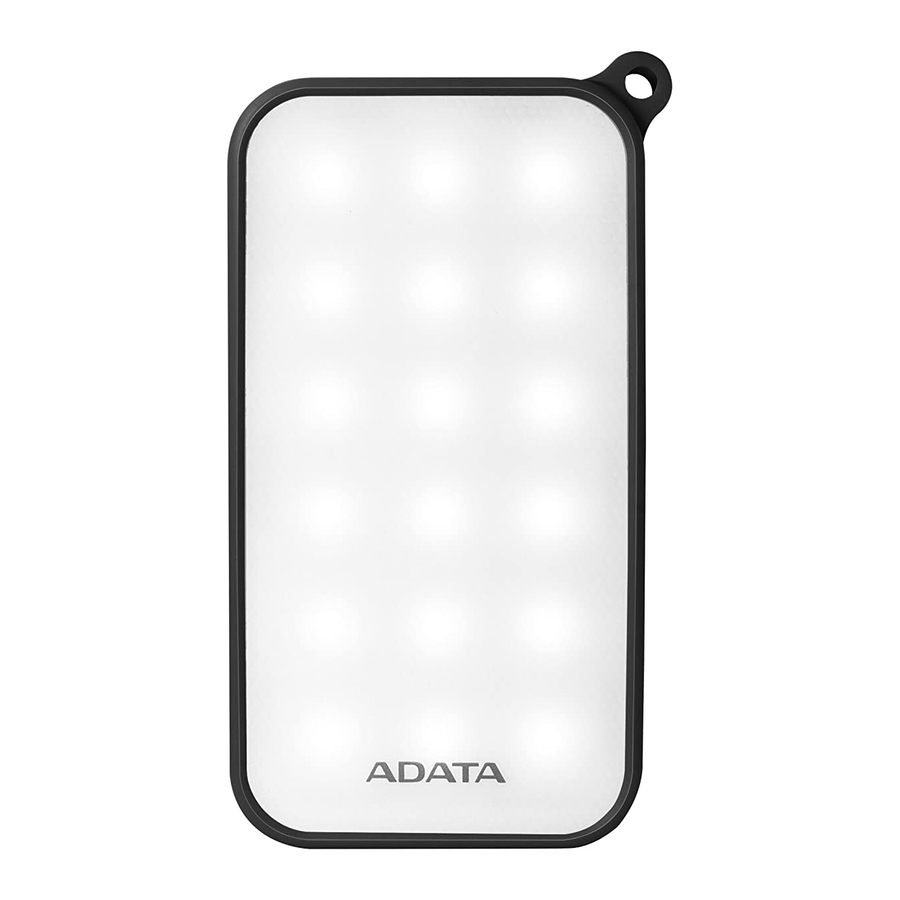

Adata D8000L - Power Bank Manual

Overview

1. Strap Ring
2. Power On/Off Key
3. LED Indicator
4. LED Panel
5. Input: 2.0A
6. Output 1&2: 2.1A max.

Product Features

• Battery Capacity: 8000mAh
• Input: DC 5V 2.0A
• Output 1&2: DC 5V 2.1A max.
• Charging Time: 5-6 hours (when using a compatible DC 5V 2.0A adapter)
• Lighting Time: 17 hours
• Lumens: 100-200lm
• Color Temperature: 6000K (Cool White) or 3000K (Warm White)
• Dimensions: 154 x 23.3 x 75mm / 6 x 2.9 x 0.9inch
• Weight: 270g / 9.52oz
• Temperature:
  Operating Temperature: 0°C to 40°C
  Storage Temperature: -10°C to 45°C
  Storage Humidity: 10% to 70% RH

LED Flashlight Modes

* D8000L lighting have " Cool White" and " Warm White" 2 models.

Note 1: Press the Power On/Off key for 2 seconds to turn on or off the LED Flashlight.

Note 2: The Power Bank remembers the last mode you used when shutting off the LED Flashlight. When you turn on the LED Flashlight again, it will power up in this same mode.

Power Display

Press the Power On/Off to display the power status.

Indicator	Status
Light on	Power On Indicator – Charge Level
Flashing	Power bank is charging Low battery warning Short Circuit Protection
Dim light	If the LED indicator lights are dim after pressing the power key, please charge the Power Bank immediately.

Operation

Charge Your Mobile Device

Use USB output ports to charge your device

Plug in the USB cable into the Power Bank and press the power key to charge your device.

Charge the Power Bank

Use the microUSB port to charge the Power Bank from a computer or a compatible charging device.

The LED indicator blinks while the Power Bank charges.

Cautions

1. Use the microUSB cable to charge the Power Bank. The cable is for charging only, not for data transfer.
2. Do not leave this product in an enclosed vehicle. Extreme heat and sunlight may damage the power bank.
3. Do not expose the product to high temperatures or humid environments.
4. Do not insert metal or foreign objects into the product, so as to avoid short-circuits and damage.
5. Do not disassemble, damage, jolt, or burn the product. Do not subject it to heavy weight.
6. Do not arbitrarily discard this product; recycle used batteries in accordance with local laws.
7. If not used long-term, charge the device once every three months in order to maintain the battery lifespan.
8. If the Power Bank is out of power (after pressing the power key and the LED indicator remains dim), to avoid of battery damage, immediately charge the Power Bank.
9. Output current will vary depending on the input charge.

Recycle old batteries properly

For more information, visit the ADATA website www.adata.com/login
