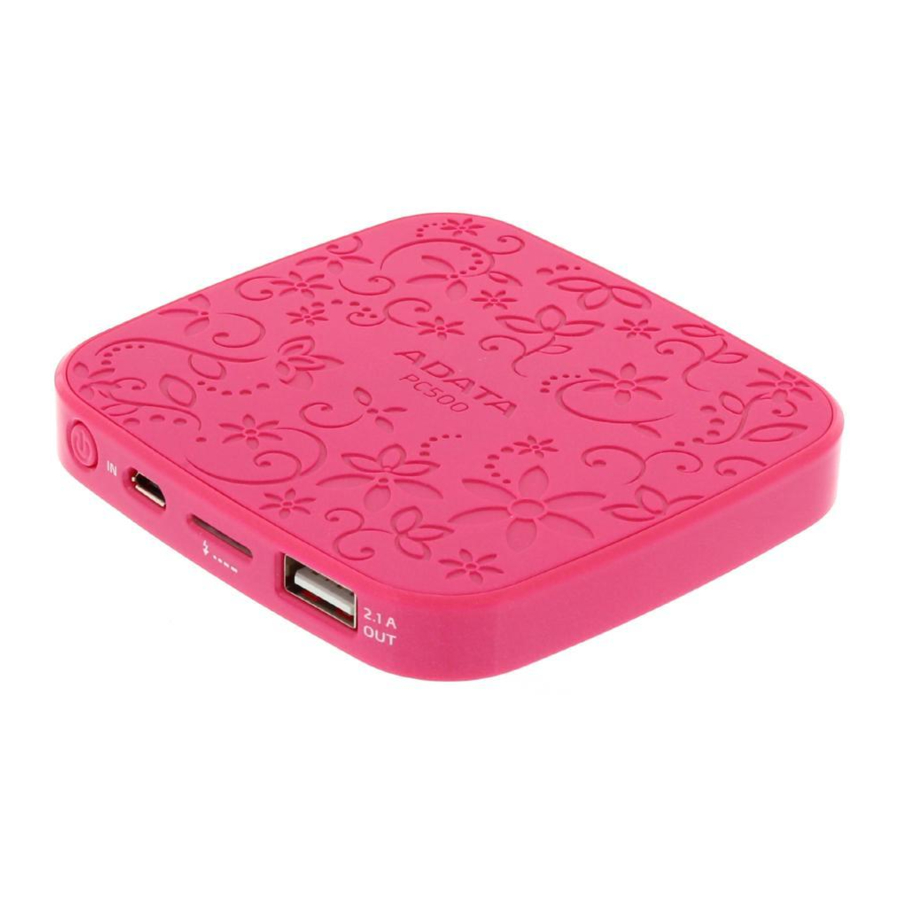

Adata PC500 - Power Bank Manual

Overview

Product Features

• Six layers of circuit protection (overcharge protection / over-discharge protection / over-temperature protection / short circuit protection / over voltage protection / over-current protection)
• Textured pattern surface
• Elegant carry pouch
• 2.1 Ampere output for fast charging
• Intelligent fast charging device identification
• Power saving automatic shut down
• LED power indicator

Specifications

• Battery capacity: 5000mAh (Lithium polymer rechargeable battery 18.5Wh )
• Rated voltage:
  Input DC 5V/1A (Micro-USB)
  Output DC 5V/2.1A (Type-A USB)
• Charging time: 5~7 hours
• Dimensions: 88 x 83 x 15mm / 3.5 x 3.3 x 0.6in
• Weight: 130g / 4.6oz
• Operating Temperature: 0°C~45°C

Note: Rated capacity for this product is: 3350mAh (16.75Wh)

Power Display

Press the Power ON/OFF to display the power status.

Indicator	Status
Light on	Power display
Flashing	Power bank is charging Low battery warning
Dim light	Standby / No power

Operation

Charging your mobile device

Use USB output for charging

• Press and hold the power switch for 2 seconds to begin charging of the mobile device.
• The power bank will automatically shut down after 10 seconds of non-use, to save power.

Charging the power bank

Charge through a computer or other device that supplies USB power.
The LED will automatically start to blink while the power bank is charging.

Cautions

1. Use either the microUSB cable that comes packaged with this product, or a high-performance USB travel charging cable.
2. Do not leave this product in an enclosed vehicle. Extreme heat and sunlight may damage the power bank.
3. Do not expose the product to high temperatures or humid environments.
4. Do not insert metal or foreign objects into the product, so as to avoid short-circuits and damage.
   Recycle old batteries properly
5. Do not disassemble, damage, jolt, or burn the product. Do not subject it to heavy weight.
6. Do not arbitrarily discard this product; recycle used batteries in accordance with local laws.
7. If not used long-term, charge the device once every three months in order to maintain the battery lifespan.
8. Do not remove or replace the internal battery, doing so may lead to risk of explosion.

Warranty

ADATA warranty policy applies to all customers who purchased ADATA products through authorized agents.
ADATA provides replacement or repair services for defective products within the applicable warranty period.

Please note that ADATA is not responsible for providing free repairs if the product defect is caused by any of the following factors:

1. Damage caused by natural calamity or any inappropriate usage.
2. Product has been repaired or taken apart by unauthorized technicians.
3. The warranty label is altered, damaged or missing.
4. Product serial number does not conform to our original system or the label has been damaged.

For more information, visit the ADATA website http://www.adata.com/login
