NEC ME401W, ME361W, ME331W, ME301W, ME401X, ME361X, ME331X, ME301X Quick Setup Guide
![]()
Quick Setup Guide

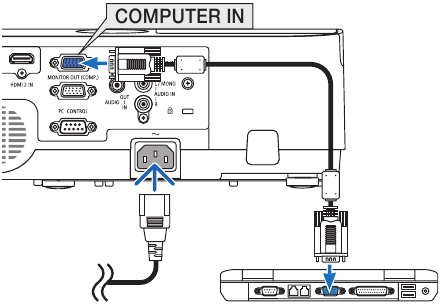

- Connect your computer to the projector using the supplied computer cable (VGA).
- Connect the supplied power cord.

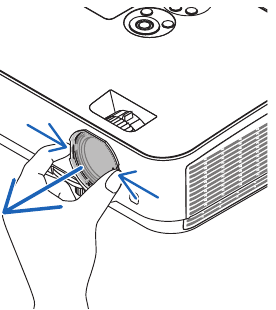

- Remove the lens cap.
- Turn on the projector.
Press the
(POWER) button on the projector cabinet or the POWER ON button on the remote control.

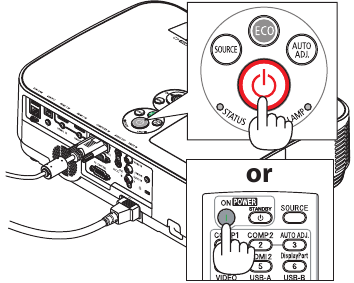

![NEC - ME401W - Turning on the projector Turning on the projector]()
NOTE: The color of the POWER indicator
![NEC - ME401W - Turning on - The color of the POWER indicator Turning on - The color of the POWER indicator]()
- Select a source.

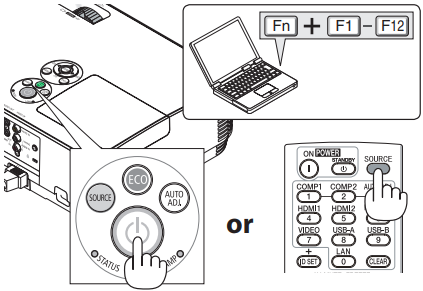

![NEC - ME401W - Selecting a source Selecting a source]()
TIP: Press the AUTO ADJ. button to optimize an RGB image automatically.
![]()
- Adjust an image size and position.
[Throw angle (Tilt foot)]
- Lift the front edge of the projector.
- Push up and hold the Adjustable Tilt Foot Lever.
- Lower the front of the projector to the desired height.
- Release the Adjustable Tilt Foot Lever.
TIP: Automatic Keystone Correction function is turned on at the time of shipment.
[FOCUS]
Turn the focus ring.
![]()
[ZOOM]
Turn the zoom lever.
![]()
- Turn off the projector.
- Press the
(POWER) button on the projector cabinet or the STANDBY button on the remote control.

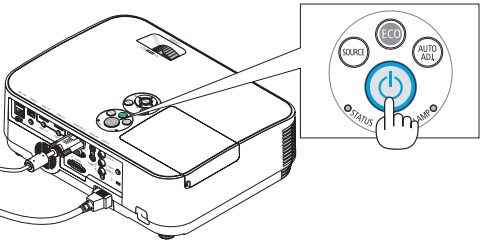

![NEC - ME401W - Turning off the projector - Using the POWER Button Turning off the projector - Using the POWER Button]()

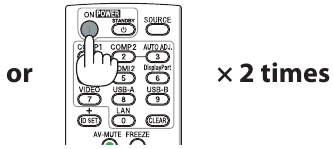

![NEC - ME401W - Turning off the projector - Using a standby Button Turning off the projector - Using a standby Button]()
- Press either the
(POWER) or the STANDBY button again. - Mount the lens cap.
- Disconnect all the cables.
NOTE: The color of the POWER indicator
![NEC - ME401W - Turning off - The color of the POWER indicator Turning off - The color of the POWER indicator]()
![]()
