Furitek TEGU Manual

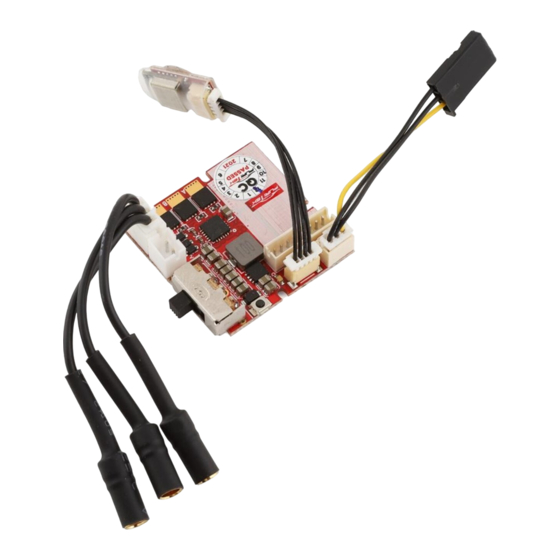

FURITEK TEGU 3S MAIN BOARD FOR AXIAL SCX24
WITH FOC TECHNOLOGY

Features:

- Built-in ESC FOC 20A, LED controller, Bluetooth (optional)
- Support brushless DC and brushed DC motor (config via app, default is brushless)
- FOC technology for very low speed in crawler mode with brushless motor
- Work with external receiver
- Built in BEC 5V-1.5A
- Super easy to use programing via App on Android and IOS
- Firmware update available
- Real-time telemetry up 10Hz
- Support 2S liPo

Specifications:

- Dimension (mm): 30.6(L)x30.6(W)
- Weight: about 5.2g
- Voltage support: 2s-3s lipo
- Motor type: Sensorless Brushless DC / Brushed DC
- BEC output: 5V/2A
- Const Current (A): 20A
- Brust Current (A): 40A

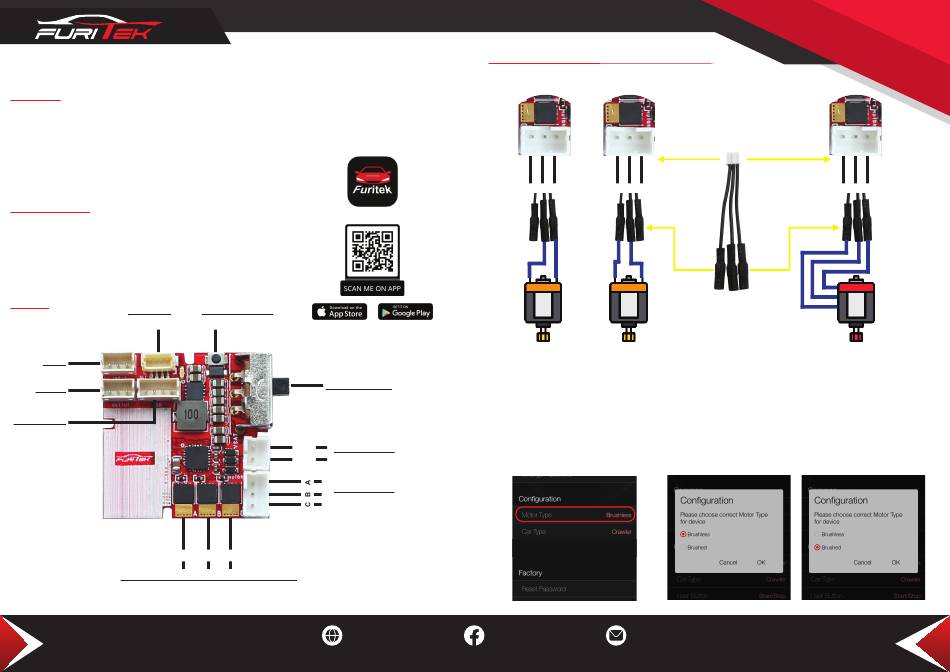

Pinout:

Bluetooth
(configure page 2)
Inupt
(ESC signal)
Output
(Servo out)
LED control
C
Motor output: Default (Brushless motor)
Brushless or brushed motor (configure page 1)
*The "Servo" and "LED" port does'not support in this version.
FURITEK TEGU Manual V1.0
FURICAR
Calibrate button
(configure page 2)
Switch ON/OFF
Bat+
Battery input:
Support 2s-3s liPo batteries
Bat-
Motor output:
Default (Brushless motor)
B A
www.furitek.com
Connect Brushed/Brushless motor to ESC:
C B A
x
OR
Brushed motor to ESC
*DEFAULT configuration is Brushless motor, if you use BRUSHED motor, please
configure it as below:
- Step 1: Please make sure to plug your battery to esc and open FURICAR app on android or IOS device
- Step 2: Please Click the Setting icon (see picture)
- Step 3: Please click "Motor Type" menu, a new window pops up, select "Brushless" or "Brushed"
and then click "OK"
www.facebook.com/furitekelectronics
JST to banana
cable
C B A
x
C B A
sales@furitek.com
C B A
Brushless motor to ESC
