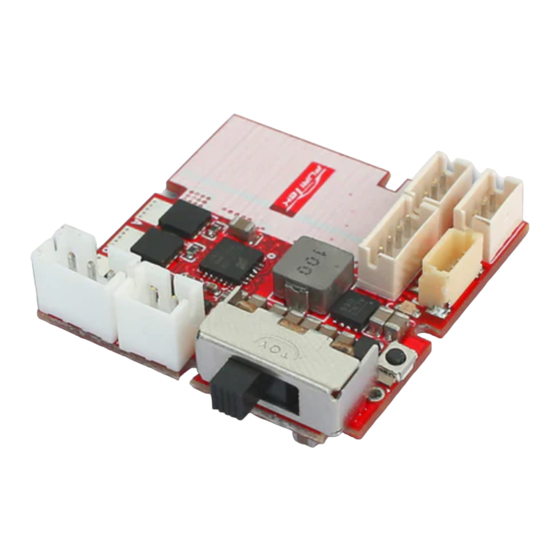

FURITEK TEGU 3S MAIN BOARD FOR AXIAL SCX24
WITH FOC TECHNOLOGY
Features:
- Built-in ESC FOC 20A, LED controller, Bluetooth (optional)
- Support brushless DC and brushed DC motor (config via app, default is brushless)
- FOC technology for very low speed in crawler mode with brushless motor
- Work with external receiver
- Built in BEC 5V-1.5A
- Super easy to use programing via App on Android and IOS
- Firmware update available
- Real-time telemetry up 10Hz
- Support 2S liPo
Specifications:
- Dimension (mm): 30.6(L)x30.6(W)
- Weight: about 5.2g
- Voltage support: 2s-3s lipo
- Motor type: Sensorless Brushless DC / Brushed DC
- BEC output: 5V/2A
- Const Current (A): 20A
- Brust Current (A): 40A

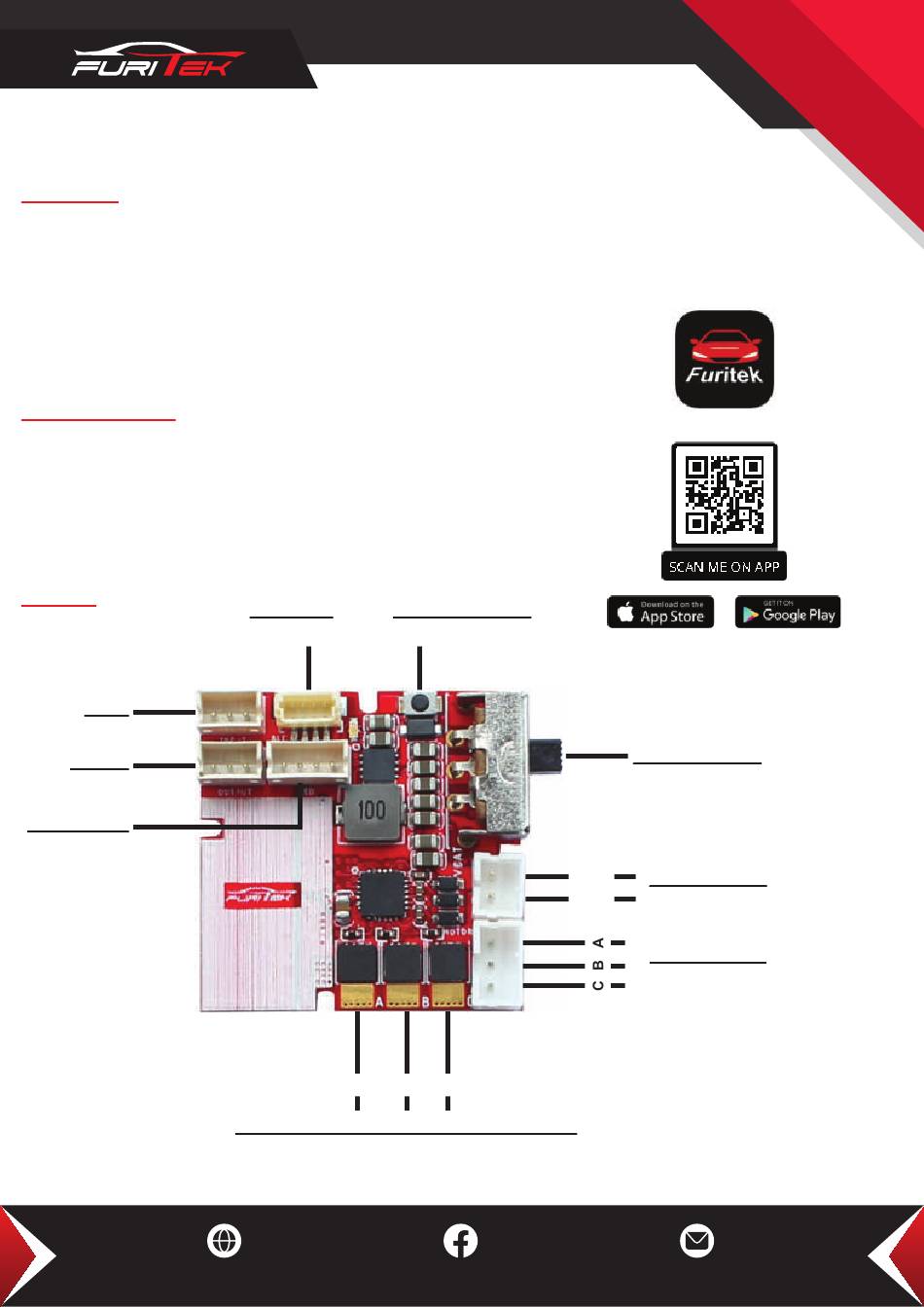

Pinout:
Inupt
(ESC signal)
Output
(Servo out)
LED control
*The port "Servo" and "LED" does'not support in this version.
www.furitek.com
TEGU Manual V1.0
(configure page 3)
C
Motor output: Default (Brushless motor)
Brushless or brushed motor (configure page 2)
www.modellmarkt24.ch
www.facebook.com/furitekelectronics
Calibrate button
(configure page 3)
B
A
FURICAR
Switch ON/OFF
Bat+
Battery input:
Support 2s-3s liPo batteries
Bat-
Motor output:
Default (Brushless motor)
