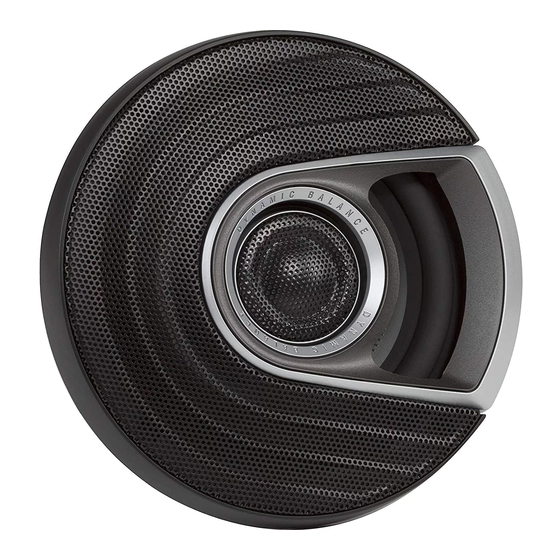

- Page 1 OWNER’S MANUAL MM522, MM572, MM652, MM692, MM6502...
- Page 2 ONLINE MANUAL MOUNTING DIAGRAMS Figure 3 Crossover mounting allows for proper ventilation. Tweeter Figure 3 WIRING DIAGRAMS Attenuation Switch located outside crossover box, move to desired tweeter level setting. Figure 1 Basic coaxial connection Coaxial Speaker Amplifier Tweeter Attenuation Switch Figure 1 Figure 4 Installing MM522, MM652, MM692, &...
- Page 3 ONLINE MANUAL Figure 6 Flush mount tweeter mounting 1. Check for proper clearance: The flush mount kit is 1” (26mm) deep. 2. Mark the center of the spot and cut a 2” (50.8mm) diameter hole using a hole saw, drill bit or razor knife. 3.
- Page 4 ONLINE MANUAL Figure 7 Surface mount tweeter mounting 1. Using the base of the surface mount cup as a template, mark the screw hole and drill them using a 1/8” (3mm) drill bit. Drill a second hole (for the speaker wire) using a 3/16” (5mm) drill bit. 2.
- Page 5 MM1 Series Coaxial and Component Systems Specifications MM522 MM572 MM652 MM692 MM6502 5.25˝ 5˝x 7˝ 6.5˝ 6˝x 9˝ 6.5˝ Type Coaxial Coaxial Coaxial Three Way Component System 5.25˝ 5˝x 7˝ 6.5˝ 6˝x 9˝ 6.5˝ Driver Complement (inches & mm) 133.35 mm 127 mm x 177.8 mm 165.2 mm 152.4 mm x 228.6 mm...
