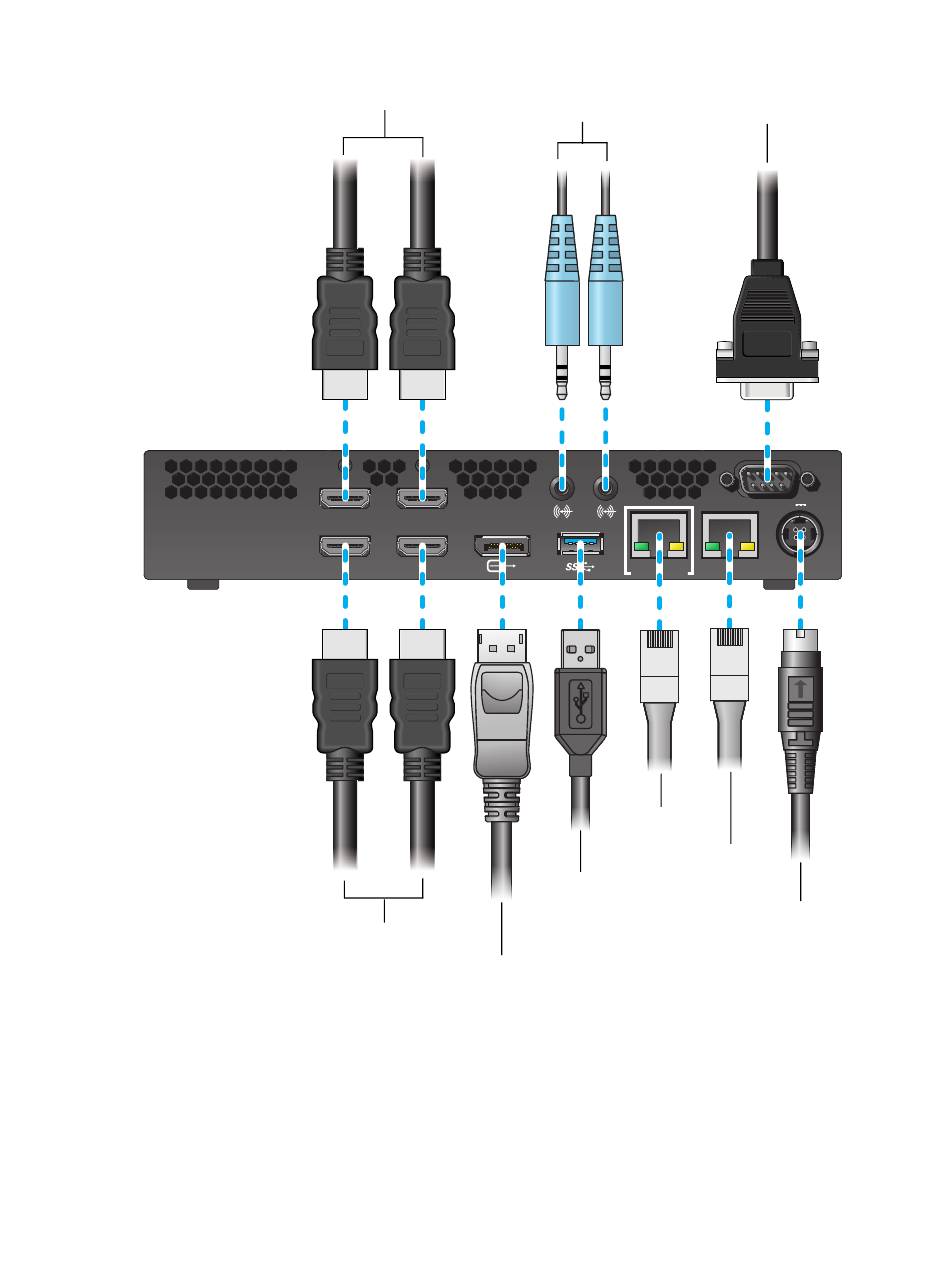

Maevex 6122 encoder (Back)
HDMI In
(source)
HDMI IN 1
HDMI IN 2
HDMI OUT 1 HDMI OUT 2
DisplayPort
HDMI Out
(monitor)
DisplayPort
(console display)
Line In
(source)
(RS232 device)
1 2
LAN 2
LAN 1
CTRL / STREAM STREAM
LAN1
(network)
LAN2
(network)
USB 3.0
(external
storage)
Matrox Maevex Series – User Guide 27
RS232
RS 232
12V 5A
12V d.c. power
