Brannan 13/482/0 User Manual

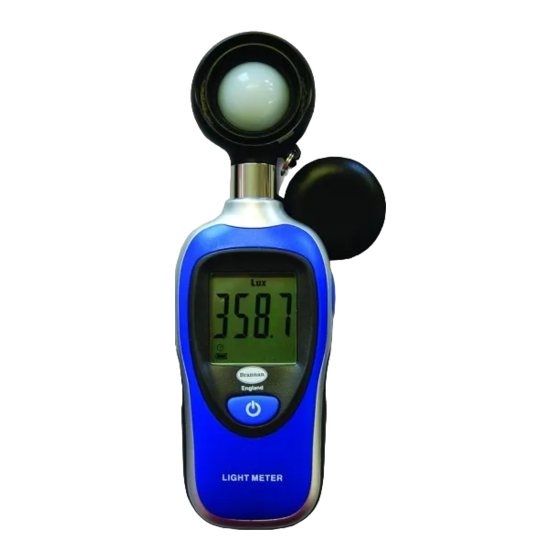

Mini Light Meter – 13/482/0
Please read this user manual thoroughly before use
and keep it safe for future reference.
1. General Description
This Light Meter is designed to meet the measurement requirements of safety Engineers, Health, Industrial safety
offices and light quality control in various environments like factory, school, construction, etc.
2. Features
◆ Measuring range: 0Lux~200Klux/0Fc~20KFc (Measurement repeatability)
◆ Automatically revise parameters for nonstandard illumination
◆ Selectable measurement units LUX/FC
◆ MAX/MIN record
◆ Large LCD display
◆ Backlight LCD display, facilitating the operation in the dark places.
◆ Automatic measurement
◆ Low battery indication
◆ Meter automatically shuts down after approx. 15 minutes of inactivity
User's Manual 3. Basic User Maintenance
Repairs or servicing not covered in this manual should only be performed by qualified personnel.
Wipe the unit with a dry soft cloth. Do not use abrasives or solvents on this instrument.
4. Safety
Read the following safety information carefully before attempting to operate this meter.
Use the meter only as specified in this manual, otherwise the readings produced by the meter may be impaired.
Suitable conditions for Use:
RH≤90％（Non-Condensation）
Operating Temperature: -20℃ ～ 60℃
Storage Temperature: -20℃ ～ 60℃
Comply with EMC
5. Specifications
Display 4 digits LCD display
Measuring range 0 Lux～200K Lux, 0Fc～20KFc
Spectral response CIE photopic（CIE human eye response curve）
Over range indication LCD displays "-OL-" or "-LO-"
CIE Vλfunction (f1'≦6%, f2'≦ 2%)
Spectral accuracy
Accuracy ±3%rdg±0.5%f.s.(<10,000Lux)±4% rdg±10dgts.(>10,000Lux)
Sampling rate 2 times per second
Photo detector Silicon photo-diode with spectral response filter
Battery life at least 60 hours
Operating conditions Temperature:-20~60℃
Storage conditions Temperature: -20~ 60℃
Power supply One 9V battery, 006P, NEDA1604 or IEC6F22
Dimension(L*W*H) 172 * 55 * 38mm
Weight 88g
Humidity: 10%~90%RH
Humidity: 10%~75%RH
