- Page 1 User's Manual Professional Anemometer – 13/460/0 Please read this user manual before using this device and keep it safe for future reference.
-
Page 2: Table Of Contents
Contents Introduction ................ 1 Application ................1 Safety .................. 1 Maintenance ................ 1 Specifications ..............2 Meter Description ............... 3 LCD Display Description ............ 5 Changing the Battery ............5 Operating Instructions ............6 10. Supplementary Items ............7... -
Page 3: Introduction
Introduction This anemometer is can provide fast, easy and accurate measurements of air velocity, air flow and temperature. It’s extra-large and easy to read backlit LCD displays air flow and temperature readings simultaneously. Application These units are widely used in manufacturing, construction, environmental, meteorological and marine applications, as well as the education and leisure sectors. -
Page 4: Specifications
Specifications Circuit Fast and high accuracy MCU design Display Extra-large LCD Sampling rate 1 reading per second Temperature measuring High accuracy NTC resistance Temperature range -30°C to 60°C / -22°F to 140°F Temperature accuracy ±1.5℃ / ±2.7℉ Air velocity range 0.3m/s to 45.0m/s Operation Temperature -10℃... -
Page 5: Meter Description

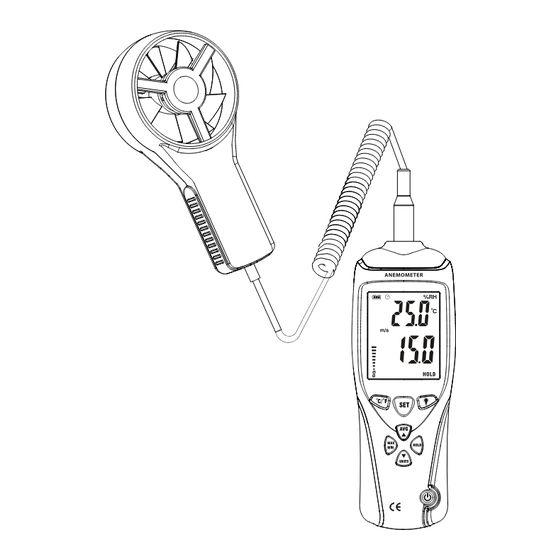

Meter Description... - Page 6 ① Air Velocity Sensor ② Sensor Interface ③ LCD display ④ SET Button ⑤ Backlight Button ⑥ HOLD Button ⑦ Velocity Units / DOWN ⑧ Power ON/OFF ⑨ MAX/MIN ⑩ AVG / UP ⑪ Temperature °C / °F ⑫ Battery cover ⑬...
-
Page 7: Lcd Display Description
LCD Display Description ① Battery Power Indicator ② Auto Power OFF icon ③ Temperature readings ④ Temperature units ⑤ Air Velocity Units: ⑥ Air Velocity readings ⑦ Air flow & Area units ⑧ HOLD Icon ⑨ MAX/MIN Icon ⑩ AVG Icon ⑪... -
Page 8: Operating Instructions
Operating Instructions Power ON：Assuming there is a suitable battery inserted, turn the meter on by pressing the " " button until the LCD screen is activated, then release the button. Power OFF：Turn the meter off by pressing and holding the " "... -
Page 9: 10. Supplementary Items
" button. If the set area is above 9999 m , the actual area=displayed data x100 as shown above. 10. Supplementary Items ◆ User's manual ◆ 9V battery Brannan Thermometers & Instrumentation Cleator Moor, Cumbria, UK. CA25 5QE www.brannan.co.uk BRAN.2015.Rev0...
