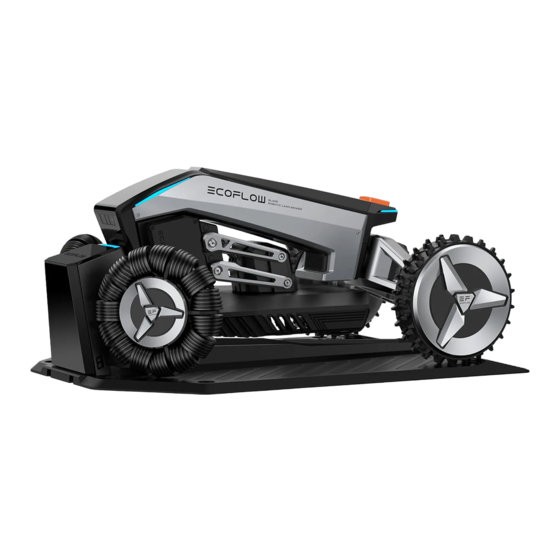

EcoFlow Blade
User Manual
V2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blade and is the answer not in the manual?

Questions and answers

Related Manuals for EcoFlow Blade

Summary of Contents for EcoFlow Blade

  • Page 1 EcoFlow Blade User Manual V2.0...
  • Page 2 Disclaimer Thanks for purchasing EcoFlow Blade (hereinafter referred to as "the mower"). This is a battery- powered robotic lawn mower. Any other usages not clearly approved in this user manual may damage the automatic lawn mower and could result in serious consequences or danger to the user.

  • Page 3: Table Of Contents

    Product Overview Select Locations Installation Install the GNSS antenna Install the charging station Seeking a signal and fixing antenna/charging station Download EcoFlow App Seeking a signal Antenna kit location Charging station location Set up the working area Before setup Working area...

  • Page 4: Safety Warnings

    Replace all three blades and screws at the same time. Only use the right type of screws and original blades as approved by EcoFlow. When replacing the blade, make sure that the mower completely stopped and remove the battery temporarily. We recommend that you wear heavy work gloves in case of sharp blades.
  • Page 5 5. During manual control, stay close to the mower and maintain balance at all times. Always wear long trousers and work shoes. 6. Do not run while operating the mower or its peripherals. 7. In the case of unusual vibrations, please turn off the mower, place it on level ground for about 30 seconds and then restart it.

  • Page 6: Symbols And Decals

    Symbols and Decals WARNING-Read instruction WARNING-Keep a safe manual before operating distance from the machine the machine. when operating. WARNING-Do not ride on Keep hands and feet away the machine. from the rotating blades. WARNING - Remove the disabling device before working on or lifting the machine (The disabling device means battery pack) *Make sure the battery is removed before working on or lifting the machine.

  • Page 7: What's In The Box

    (peg for short) (nail for short) ×9 Antenna extension Power cable Accessory kit GNSS antenna kit cable (extension cable (spare blade ×9) for short) M4 × 8 (× 9)) Please do not remove stickers printed with "A1/B1/A2/B2". Save them for future use.

  • Page 8: Product Overview

    EcoFlow Blade ❸ Rear Front ❾ ❶ ❺ ❹ ❷ Fig. 1 Side view of EcoFlow Blade Front 1. Headlight 3. Battery compartment cover 2. Front wheel (omni-wheel) Rear 4. Back wheel (drive wheel) 8. Recharge button 5. Tail light 9.
  • Page 9 5. Handle Fig. 2 Underbody view of EcoFlow Blade 1. Blades and M4×8 are preinstalled onto the blade disc, the accessory kit is for a spare use. 2. Ensure that the mower is completely turned off if you need to turn it over.

  • Page 10: Select Locations

    Charging station ❸ ❷ ❶ ❺ ❹ Fig. 4 Charging station 1. LED indicator 4. Extension cable connector 2. Charging pad 5. Power cable connector 3. Holes for nails Select Locations To improve performance, do not place your GNSS antenna or charging station in the pink areas shown below.
  • Page 11 1. Do not put the antenna or charging 2. Do not keep the antenna or charging station between walls. station under trees. < 4m/13 ft 3. Keep the antenna/charging station 4. Keep the antenna/charging station at least 2 m (6.6 ft.) from nearby away from water.

  • Page 12: Installation

    Installation Install the GNSS antenna There are a couple of ways to install the antenna, here are the two most common options for your reference. Option 1 1. Attach tube 1 to the fork and then 2. Slide the extension cable through the attach tube 2 to tube 1.
  • Page 13 Option 2 1. Attach tube 1 to the fork and then slide 2. Attach tube 2 to tube 1, and then slide the extension cable through tube 1. the extension cable through tube 2.
  • Page 14 3. Connect the antenna to the extension 4. Secure the antenna and tube 2. cable, and secure the connectors. Please carefully align the notch on the antenna with the groove of the extension cable.
  • Page 15 5. Secure the extension cable into the groove at the bottom of fork. Do not insert the antenna kit into the ground yet before you find a proper satellite signal.

  • Page 16: Install The Charging Station

    Install the charging station 1. Connect the extension cable to the charging station. Secure the cable connectors tightly to prevent the cable f r o m l o o s e n i n g during use. 2. Connect the power cable to the charging station.
  • Page 17 3. Connect the power cable to the power adapter. 4. Plug in the power adapter. Power adapter placement suggestions 1. Away from rain or direct sunlight. 2. In a well-ventilated place. 3. At least 30 cm (1 ft) above the ground.

  • Page 18: Seeking A Signal And Fixing Antenna/Charging Station

    Seeking a signal and fixing the antenna/ charging station Download the EcoFlow App Control, monitor, and customize your EcoFlow Blade from afar with the EcoFlow app. Download at: https://download.ecoflow.com/app Privacy Policy By using EcoFlow Products, Applications, and Services, you consent to the EcoFlow Term of Use and Privacy Policy, which you can access via the “About”...
  • Page 19 2. Push the mower onto the charging station, and the mower will turn on automatically. 3. Log in to the app and make sure you have completed step 1 "Assemble Product".
  • Page 20 4. After step 1, select "Search device positioning satellite signal" and follow the instructions to "start searching signal". Ensure that the signal strength is "strong", so that you'll get better performance later.

  • Page 21: Antenna Kit Location

    Antenna kit location Once you have found a spot with a strong signal, you can fix the antenna kit in that spot. 1. Take off the protective covers. 2. Insert the antenna into the ground. 1. Please be aware of sharp fork prongs to avoid an accident. 2.

  • Page 22: Charging Station Location

    Charging station location After you have fixed the position of the antenna, you can learn how to control the mower before finding a charging station location. 1. Follow the instructions and select 2. Turn the mower around by using the "start practicing".
  • Page 23 4. Fix the charging station with nails. 5. Secure the extension cable and power cable with pegs. 1. We suggest that you secure the cables with pegs when you put the cables within the working area. 2. When fixing the cables, please pull them straight and along the surface of the ground. 3.

  • Page 24: Set Up The Working Area

    Set up the working area Before setup Clean your lawn Remove all the obstacles inside the working area, including toys, wires, stones, etc. Make sure that kids and pets are not near the mower. < 76mm/3 in...
  • Page 25 Power on/off - Scenario 1 Normally, the mower will power on automatically when it's connected to the charging pads of the charging station. Once it's turned on, you'll hear the voice prompt "Power on, let's start a new journey". - Scenario 2 When the mower is not on the charging station, you can turn it on by holding the power button for at least 3 seconds until the tail light pulses blue.

  • Page 26: Working Area

    Working area 1. On the "Guide to EcoFlow Blade" page, 2. Follow the instructions and proceed to select "Create mower work map". select "Start mapping". 3. Select "Mapping working area".
  • Page 27 4. The mower activates and leaves the charging station automatically, manually control the mower to the proper position then choose "Start". 6. When the mower approaches the starting 5. Now map out the working area by point, tap "finish" to end the process. using the direction keys.
  • Page 28 1. Always keep the distance from the lawn 2. While mapping out the working area, make sure that the turning angle is more than 90°. edge about 15 cm (5.9 inches). 3. Make sure the slope of the lawn edge does not excceed 15°. <15°...

  • Page 29: Restricted Zones

    Restricted zones 1. After setting up the working area, the 2. Map out the restricted zone by using the app will guide you to the "Restricted direction keys. zone" setting. Tap "Mapping restricted zone" to proceed. 1. We suggest that you move the mower near the area where you want to set up the "restricted zone", then tap the "start"...

  • Page 30: Creating Paths

    Creating Paths Make sure you have created more than two working areas (see steps in working area). 1. Select "Mapping path" on the guide 2. Draw a path between two or more working page. areas by using the direction keys. LED Indicators Light Color...
  • Page 31 The left side of the light beads flow upward, the right side of the front OTA upgrade light beads flow downward Blue Solid Works normally Presents a circular forward flow like a drop of water, then slowly displays halo light effect. The Green power progress bar, according to Charging + state of charge...

  • Page 32: Settings

    Settings Start/Pause After "Guide to EcoFlow Blade", you can choose "Start working". 1. Tap "Start", and the mower will start 2. Tap "Pause" to pause the mower, and mowing. then tap again to resume the work. Recharge/Return to the charging station...
  • Page 33 Device sharing If you need to share this mower with someone else, please follow the steps below: 1. Tap the icon in the upper right. 2. Select "Device sharing". 1. If the mower is bonded with an account, then the new operators cannot connect to the mower unless the original account shares the device.
  • Page 34 Unlink 1. Tap the icon in the upper right and tap 2. Tap "Account binding reset". "Mower Settings". Mowing height 1. Tap the icon in the lower right. 2. Tap "Mower settings".
  • Page 35 3. Slide your finger to adjust the mowing height. Firmware upgrade Online upgrade 1. Tap the icon in the upper right and then tap "Firmware".
  • Page 36 2. Tap “Upgrade Online” and wait for the process to complete. Offline upgrade 1. Tap “Offline Upgrade” and wait for the process to complete.
  • Page 37 2. Connect to the device's Wi-Fi, and the app will automatically send the firmware package to the device after connecting to a hotspot. The EcoFlow app may get updated from time to time, please refer to the latest release.

  • Page 38: Lawn Sweeper Kit

    Lawn Sweeper Kit The mower can be used together with the Lawn Sweeper Kit to collect leaves and grass clippings. For more details, please refer to the Lawn Sweeper Kit manual or quick start guide. Maintenance Cleaning 1. Ensure that the mower is powered off, and remove the battery before cleaning. 2.
  • Page 39 1. Wear protective gloves when you inspect or replace the blades. 2. Do not reuse the screws. 3. Use the original spare blade and screws supplied by EcoFlow. 1. Turn off the mower 2. Turn the mower over and put it on a soft and flat surface.
  • Page 40 Battery Remove 1. Open the battery compartement cover and lift the antenna cover. ❶ ❷ 2. Hold the button (as in fig. ) and then lift up the battery. Install the battery 1. Align the battery with the grooves in the mower.
  • Page 41 2. Push back the antenna cover. 3. Install back the battery compartment cover by aligning it with grooves in the mower. 4. Lightly push the battery compartment cover until you hear a "click".
  • Page 42 If the extension cable is defective, please replace it with the 10-meter-long cable as approved by EcoFlow. 2. DO NOT connect a damaged cable to the power supply or touch a damaged cable or extension cable before it is disconnected from the power socket.

  • Page 43: Specifications

    Specifications Name EcoFlow Blade Brand EcoFlow approx. 660 × 440 × 310 mm (26 × 17 × 12 in.) Mower Dimensions Basic Charging Station Dimensions approx. 715 × 501 × 205 mm (28 × 20 × 8 in.) information Mower Weight 16.2 kg (35.7 lbs)
  • Page 44 1. The above data was measured in a laboratory and is for reference only. 2. The noise emission declarations conform to EN 50636-2-107 and ANSI/OPEI 60335-2-107. 3. The manufacturer reserves the right to make modifications without notice, please go to www.ecoflow.com for the latest specifications or related documents.

  • Page 45: Faq

    1. The robotic lawn mower cannot return to the charging station automatically. Why? It may not return to the charging station in the following cases: 1. The satellite signal is weak due to walls, trees or other obstacles within the range of 2m (6.56ft) around the antenna.
  • Page 46 down the robotic lawn mower after it is fully charged, and disconnect the power supply of the charging station. It is not necessary to disconnect the charging station and the robotic lawn mower. If the mower will be stored for a long time, you are recommended to charge it every six months.
  • Page 47 16. Why does the blade disc vibrate abnormally when mowing? Check the blade disc and the spare blades. If a spare blade is damaged or falls off, please replace it or install a new one. If the blade disc is damaged, please contact the after-sales service department for maintenance.
  • Page 48 25. How is the cutting height defined? The cutting height refers to the height from the blade disc to the tire. The actual height of cut grass will be larger than the set value as the grass is soft.
  • Page 49 Information on Disposal for Users of Waste Electrical & Electronic Equipment This symbol on the product or on its packaging indicates that used electrical and electronic products should not be mixed with unsorted municipal waste. For proper treatment, it is your responsibility to dispose of your waste equipment by arranging to return it to designated collection points.
  • Page 50 FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
