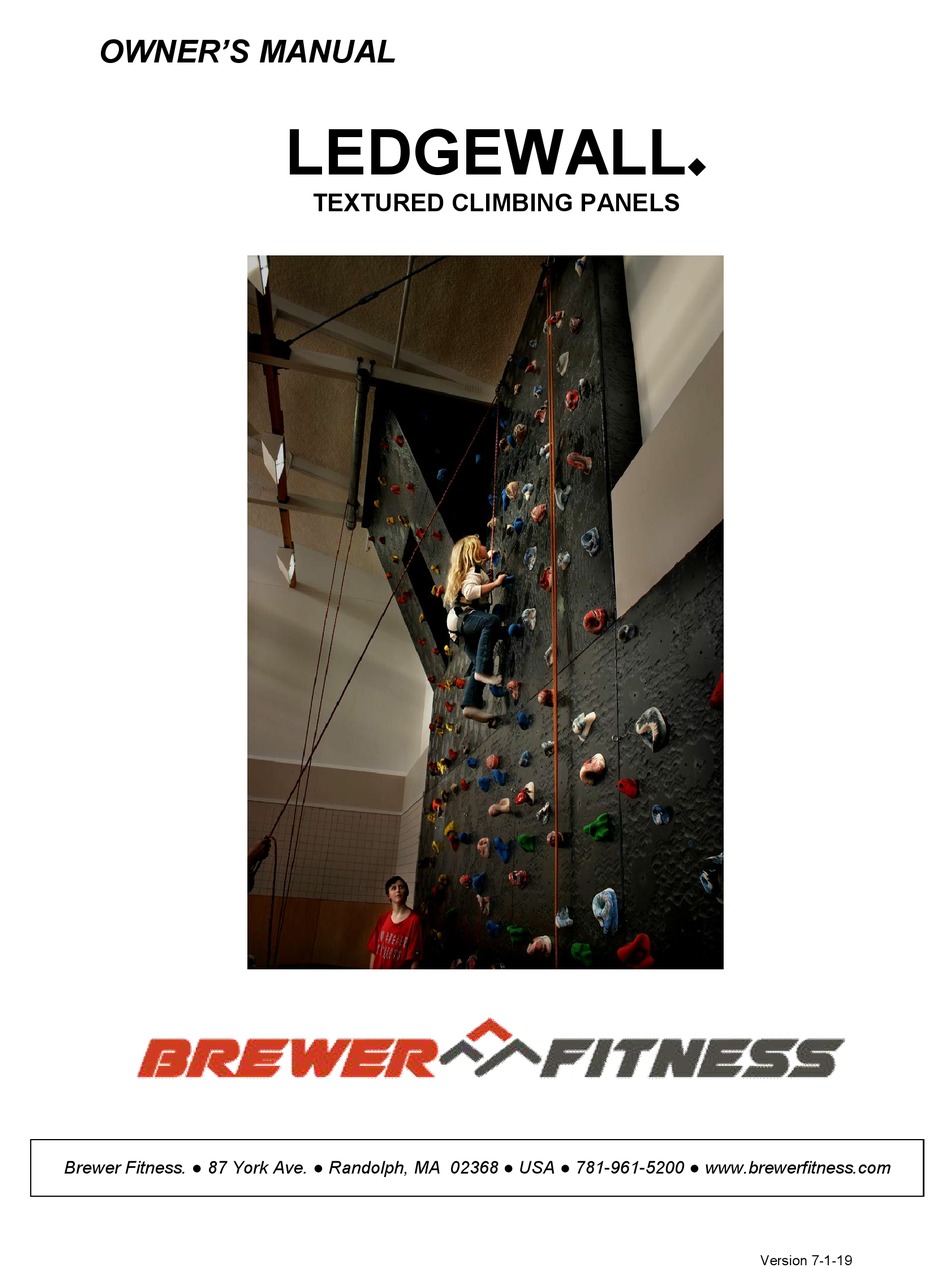

- Page 1 OWNER’S MANUAL LEDGEWALL TEXTURED CLIMBING PANELS Brewer Fitness. ● 87 York Ave. ● Randolph, MA 02368 ● USA ● 781-961-5200 ● www.brewerfitness.com Version 7-1-19...
- Page 3 PLUS PANELS: Pre framed panels for direct mounting to CMU, cement or other “hard” surfaced walls. MODULES: Modular pre-framed units for simple bolt-together construction for creating cost effective bouldering areas. Brewer Fitness 87 York Ave. Randolph MA, 02368 781-961-5200 www.brewerfitness.com...
- Page 4 Rev 7-1-19 Copyright 2019 Brewer’s Ledge Inc. Standard Panels LedgeWall panels are designed for a variety of uses. They can be mounted directly on existing framing, used on custom framing, and can be used inside or outside with full coating.
- Page 5 The framing must be carefully constructed to fit the panels with attention to the corners where panels meet and accommodating the thickness of panels where they overlap. To make full use of LedgeWall panels it is best to design in 4-ft. increments, and this generally insures good “climbable-sized”...
- Page 6 Panels - General Install Notes Ledgewall panels The LedgeWall panels are a textured MDO ¾” plywood with a charcoal (1/2 black - 1/2 gray) water-based urethane finish. There are materials enclosed for staff: an Owner’s Manual and a 5/16” Allen wrench for installing the holds. The following are some notes relating to installation.
- Page 7 Rev 2-13-13 General LedgeWall Work Plan & Mat Notes Carry in materials Find and mark studs in wall area Block and level first panel, making sure 24" line is down, and panel is @ 2 1/2" off ...
- Page 8 6) Put up ALL the panels temporarily before fastening the remainder of the Tapcons. This allows you to make sure entire wall is good. 7) Go back and finish installing all Tapcons. Brewer Fitness 87 York Ave. Randolph MA, 02368 781-961-5200 www.brewerfitness.com...
- Page 9 Number: 19 per 4 x 4 panel 38 per 4 x 8 panel * The LedgeWall Plus panels come pre-drilled with beveled holes to locate each of the Tapcons. Tips for using Tapcons: For exterior use, purchase Stainless Steel Tapcons.
- Page 10 Colors: All our flooring options are available with color choices and install without special tools. Please call for the colors available. Brewer Fitness 87 York Ave. Randolph MA, 02368 781-961-5200 www.brewerfitness.com...
- Page 11 Copyright 2019 Brewer’s Ledge Inc. Installing the LedgeWall Mat Hanging System LedgeWall™ mats have loops so that the mats can be stored by hanging against the wall. This secures the wall, prevents damage, and provides a padded surface for other activities in the area.
- Page 12 The colorful Ledgewall holds do more than give a cheerful appearance to the wall. The colors can be used to set a “route” along the wall for greater challenge. As climbers get more experience and become stronger, they enjoy doing the “red route”...
- Page 13 Use hands on one color, feet on another – decision making Use one finger lightly on the user’s back – build confidence without assisting Brewer Fitness 87 York Ave. Randolph MA, 02368 781-961-5200 www.brewerfitness.com...
- Page 14 Normal wear and tear is excluded from this warranty. b. No warranty shall be provided in the event of damage to the LedgeWall™ panels or modules incurred by negligence by the Original Purchaser. The sale of instructional materials to the Original Purchaser by Brewer's Ledge Inc.
- Page 15 4. WORKING WITH TEE-NUTS The tee nuts used on the Ledgewall are premium industrial tee nuts used on commercial climbing walls. They are designed to minimize/eliminate cross threading and stand up to repeated use. However, is it always important not to force a bolt into a tee-nut.
-
Page 16: Spare Parts
The following items are available: holds - visit our site at http://www.brewerfitness.com/store for a full selection. paint (US only) tee nuts mats mat hanging equipment Brewer Fitness 87 York Ave. Randolph MA, 02368 781-961-5200 www.brewerfitness.com...
