Summary of Contents for Random*Source JHaible VC POLY RESONATOR

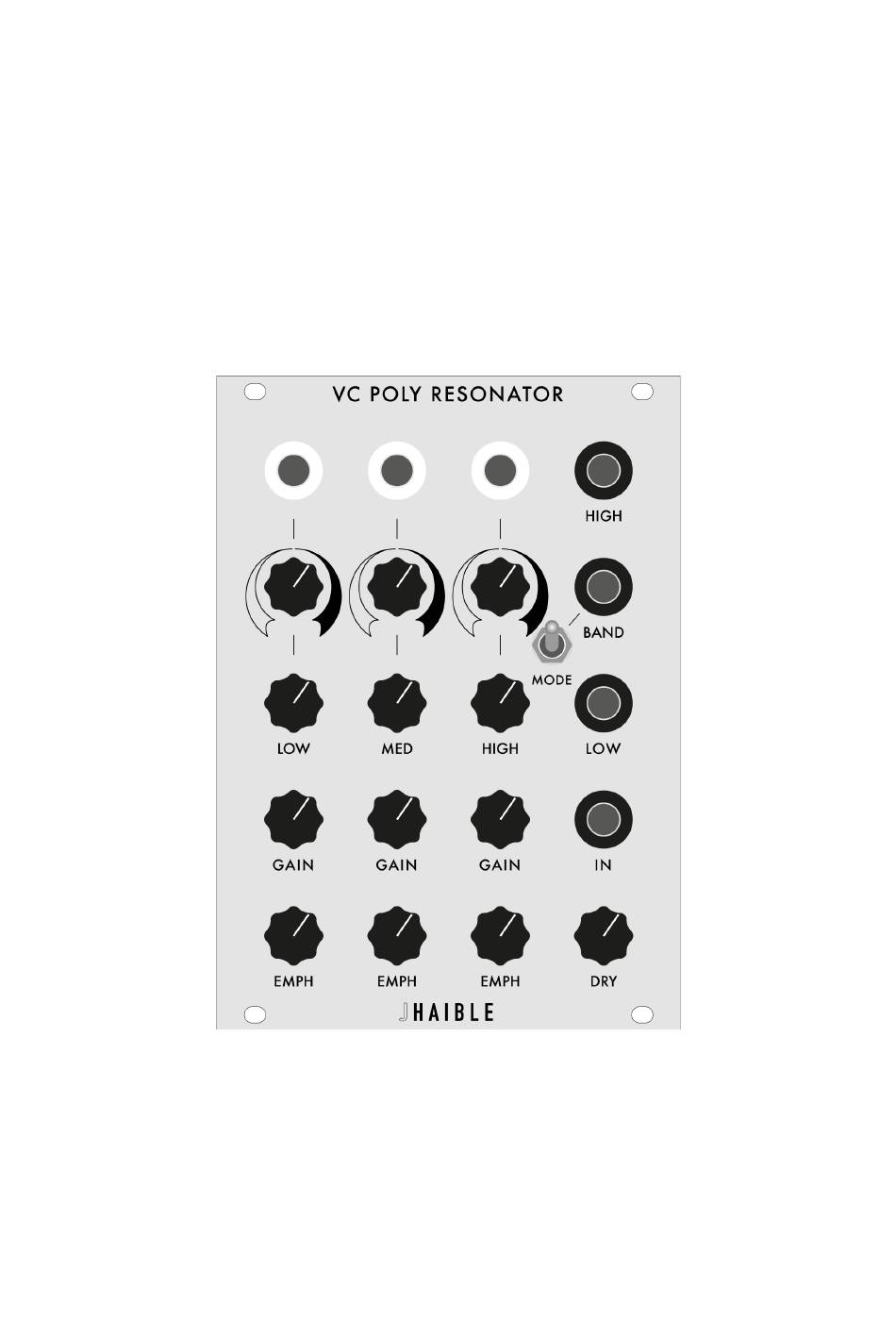

- Page 1 H A I B L E VC POLY RESONATOR F O R E U R O R A C K U S E R M A N U A L V 1 . 0 R A N D O M * S O U R C E...
- Page 2 H A I B L E VC POLY RESONATOR Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Overview .
- Page 3 H A I B L E VC POLY RESONATOR Installation Always turn the eurorack case off and unplug the power cord before plugging or unplugging any eurorack power cable . Do not touch any electrical terminals when attaching any eurorack power (bus board) cables . The Haible Resonator is an electronic music module requiring 50mA of +12VDC and 50 mA of -12VDC regulated voltages and an appropriate power connector to operate .
- Page 4 H A I B L E VC Resonator - Basic Operation Send a audio signal into the IN (#1), make sure all three GAIN knobs (#10) (or at least one) are not set fully CCW and listen to either output (#2, #3 or #4) . The DRY knob (#6) determines how much of the (dry) input signal is added to the processed signal, i .e .
- Page 5 H A I B L E Outputs LOW, BAND and HIGH (#2, #3, #4) LOW and HIGH provide a combination of the three LOW and HIGH outputs of each filter band . Of course, if the GAIN of any band is turned down completely (and EMPHASIS also), a band may not be present at all . The BAND output has a MODE switch (#5) that allows you to select whether the MED band is actually added to or subtracted from the other two frequency bands, providing an additional Band pass “notch”mode .
- Page 6 H A I B L E VC Resonator - Patch Ideas Basic Pinging - using the Resonator as a sound source Letting the Resonator resonate on a Using both sides combined as one tracking oscillator . • Feed a click signal into the IN, e .g . a single spike (sawtooth form from a DSG) or a pulse (that will gener- ate 2 clicks, one on each flank) .
