Summary of Contents for Perfectaire ProAire 1PRNC6000

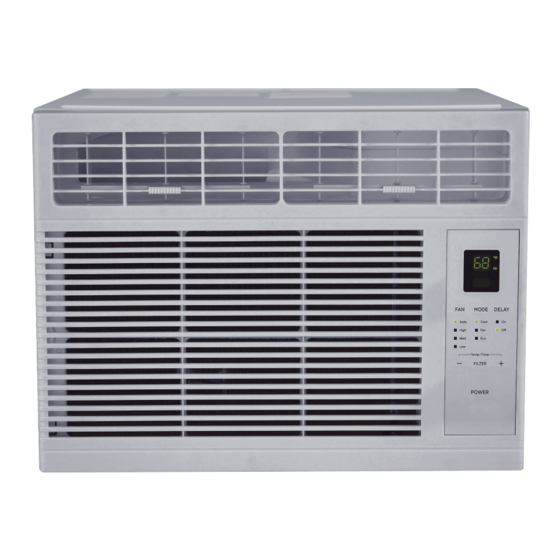

- Page 1 OWNER’S MANUAL ROOM AIR CONDITIONER MODEL 1PRNC6000...
-
Page 2: Table Of Contents
CONTENTS Safety Information ..........................3 Using the Air Conditioner Controls ............................5 Remote Control ..........................6 Cool Mode .............................6 Energy Saver Mode ........................6 Air Direction ...........................7 Care and Cleaning Grille and Case ..........................8 Air Filter ............................8 Outdoor Coils ..........................8 Install Batteries in Remote ......................8 Installation Instructions Before You Begin ...........................9 Electrical Requirements .........................9... -
Page 3: Safety Information
IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE WARNING For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury. ■ Use this appliance only for its intended purpose as ■... - Page 4 IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE WARNING USE OF EXTENSION CORDS ■ DO NOT use surge protectors or multi-outlet adaptors RISK OF FIRE. Could cause serious injury or death. with this Window Air Conditioner. ■ DO NOT use an extension cord with this Window Air Conditioner.
-
Page 5: Controls
Controls Features and appearance will vary. Lights below the touch pads on the air conditioner control panel indicate the selected settings. Unit power ON/OFF on/off MODE Mode select SPEED Fan speed DELAY Delay 1–24hr TEMP/TIME Temperature set/Delay Timer TEMP/TIME Increase and Decrease Remote Control Air Conditioner Controls... -
Page 6: Remote Control
Using the Air Conditioner Do Not Operate in Freezing Outdoor Conditions This cool-only air conditioner was not designed for freezing outdoor conditions. It must not be used when the outdoor temperature is below freezing (32°F). Remote Control ■ To ensure proper operation, aim the remote control at the ■... -
Page 7: Air Direction
Using the Air Conditioner Auto Fan Mode Set to Auto for the fan speed to automatically set to the speed needed to provide optimum comfort settings with the set temperature. If the room needs more cooling, the fan speed will automatically increase. -
Page 8: Care And Cleaning
Care and Cleaning Grille and Case Turn the air conditioner off and remove the plug from the To clean, use water and a mild detergent. Do not use wall outlet before cleaning. bleach or abrasives. Air Filter The air filter behind the front grille should be checked CAUTION DO NOT operate the air conditioner and cleaned at least every 30 days or more often if... -
Page 9: Installation Instructions
Installation Instructions BEFORE YOU BEGIN TOOLS YOU WILL NEED Read these instructions completely and carefully. IMPORTANT – Save these • instructions for local inspector’s use. IMPORTANT – Observe all • governing codes and ordinances. Phillips head screwdriver Note to Installer – Be sure to leave these •... -
Page 10: Parts Included
Installation Instructions PARTS INCLUDED Side Curtain Frame (Appearance may vary) Foam top window gasket Right Left Top mounting rail Side Curtain (2) conditioner Remote Control ON/OFF MODE SPEED DELAY TEMP/TIME Temp / Delay Hrs TEMP/TIME Window locking Type A (3) Side Brackets Type B (9) bracket (1) -
Page 11: Window Requirements
Installation Instructions 1. WINDOW REQUIREMENTS 3. PREPARE THE AIR CONDITIONER • These instructions are for a standard A. Install the top mounting rail with Type A screws double-hung window. You will need to modify from the outside of the case. them for other types of windows. -
Page 12: Install The Air Conditioner
Installation Instructions 4. INSTALL THE AIR CONDITIONER 5. SECURE AIR CONDITIONER IN THE WINDOW A. Loosen the screw on the right hand side of the air conditioner near the bottom. A. Mark the center of the window. Set the air conditioner in the window so that is it centered. - Page 13 Installation Instructions 6. INSTALL WINDOW LOCK BRACKET AND FOAM TOP WINDOW GASKET Use Type B Screw to install the window lock bracket on top of the bottom window. CAUTION To prevent broken glass or damage to windows, on vinyl or other similarly constructed Vinyl windows, attach the window locking bracket to the...
-
Page 14: Troubleshooting Tips
Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service. Problem Possible Cause What To Do Make sure the air conditioner plug is pushed completely Air conditionerdoes not The unit is unplugged. -
Page 15: Normal Operating Sounds
Normal Operating Sounds ■ You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the humidity is high. This design feature helps remove moisture and improve efficiency. ■ You may hear the thermostat click when the compressor cycles on and off. ■... - Page 16 Distributed by Perfect Aire, LLC 5401 Dansher Road Countryside, IL 60525 www.perfectaire.us 844-4PA-AIRE 844-472-2473 Printed in China 0221_M698...
