Kroks Arinst SSA-TG R3 Manual

A complete instruction manual for the device is available on the website www.kroks.ru
Warranty
The manufacturer warrants that this product will meet the specifications in this document. The warranty period is 12 months
from the date of purchase. During this period, the manufacturer provides free warranty service.
Warranty obligations do not apply to the following cases:

the warranty period of the product has expired from the date of sale;

there are no documents confirming the date and fact of purchase of the product;

the product intended for personal needs was used for commercial activities, as well as for other purposes that do not
correspond to its intended purpose;

Violation of the rules and operating conditions set forth in the Operating Instructions and other documentation
transferred to the Buyer complete with the product;

if there are traces of unskilled repairs or attempts to open the Product outside an authorized service center, as well as
due to unauthorized interference with the software;

damages (shortcomings) of the Goods are caused by exposure to virus programs, software interference, or the use of
third-party software (non-original);

the defect is caused by force majeure (for example, earthquake, fire, lightning strike, instability in the electrical
network), accidents, intentional or careless actions of the consumer or third parties;

mechanical damage (cracks, chips, holes) that occurred after the transfer of the product to the Buyer;

damage caused by exposure to moisture, high or low temperatures, corrosion, oxidation, ingress of foreign objects,
substances, liquids, insects into the product;

the defect arose due to the supply to the input connectors, terminals, signal housing or voltage or current exceeding
the values allowed for this Product;

the defect is caused by natural wear of the Goods (for example, but not limited to: natural wear of connectors due to
frequent connection/disconnection of adapters).
Warranty obligations apply only to defects caused by the fault of the manufacturer. Warranty service is performed by the manu-
facturer or an authorized service center.
Date of sale____________________ seller________________________________________
Familiar with the instructions and operating rules ____________________________
Версия документа от 19.07.2022
(store name or stamp)
(buyer's signature)
2425

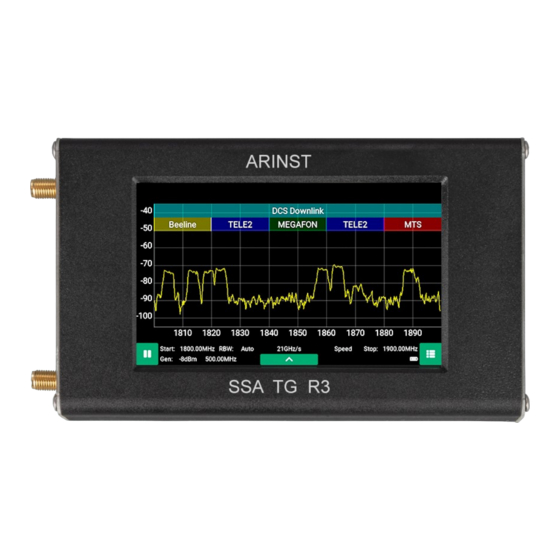

Arinst SSA-TG R3 portable spectrum analyzer with tracking generator
Manual. Passport products.

1. Purpose

Arinst SSA-TG R3 is a portable panoramic spectrum analyzer with a built-in tracking generator and demodulator de-
signed to display the spectral components of signals in the frequency range from 24 MHz to 12 GHz. High scanning
speed makes it possible to detect impulse signals of digital communication standards: Wi-Fi, 2G, 3G, 4G, LTE, CDMA,
DCS, GSM, GPRS, GLONASS, etc. The built-in tracking generator allows you to measure the frequency response of
passive or active devices, such as filters, amplifiers. Software demodulator of WFM/FM/AM signals is intended for
listening to the air and tuning analog radio transmitters. Setting the regional coverage frequencies of cellular operators
allows you to match the displayed signal with the corresponding operator. For convenience, the built-in software of the
device allows you to sign and highlight frequency ranges on the screen. For example, sign the names of radio stations,
Wi-Fi channels or frequency bands of mobile operators.

2. Device structure

Due to the constant improvement of the device and software, the manufacturer reserves the right to make
changes to its technical characteristics and completeness.
Kroks Plus LLC
394005, Voronezh, Moskovsky pr. 133-263
+7 (473) 290-00-99
info@kroks.ru
www.kroks.ru
1. Tracking generator output (TG OUT)
2. Headphone jack
3. Analyzer input (RF IN)
4. Touch screen
5. Status LED
6. On/off button
7. Battery charging LED
8. Mini-USB connector
9. Connector for external power supply
10. Speaker
