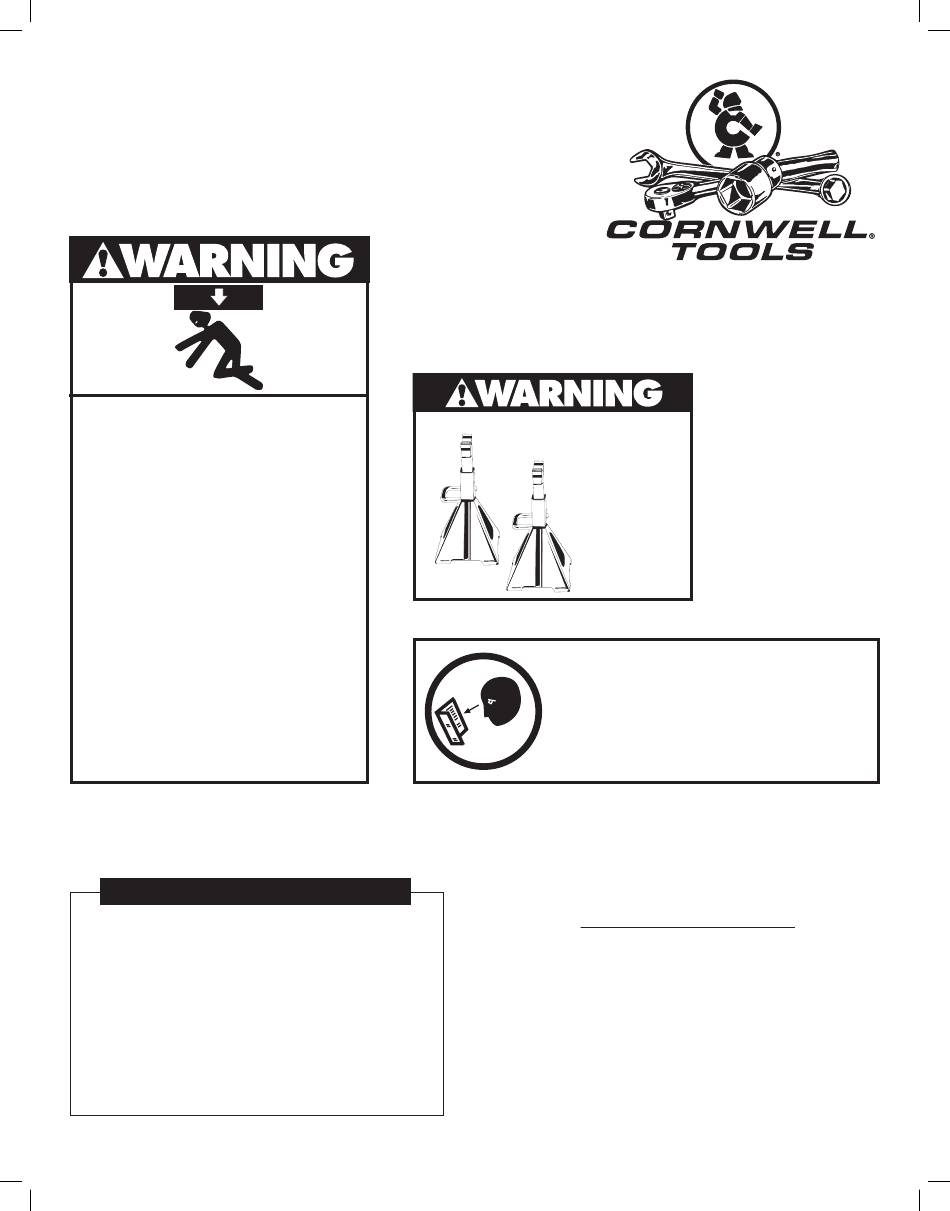

Operating Instructions • Warning Information
Meets or exceeds ASME PALD-1997
standards for performance & safety.
THE USE OF THIS JACK IS LIMITED TO THE REMOVAL,
INSTALLATION, AND TRANSPORTATION IN THE LOWERED
POSITION, OF TRANSMISSIONS AND DIFFERENTIALS.
IT MAY BE USED WITH APPROPRIATE ADAPTERS
MANUFACTURED SPECIFICALLY FOR THE JACK TO HANDLE
OTHER COMPONENTS, SUCH AS REAR AXLE UNITS AND
TRANSFER CASES, WITHIN THE WEIGHT LIMITATIONS
SPECIFIED. NO ALTERATION TO THE JACK OR ADAPTERS
SHALL BE MADE.
BE SURE THE VEHICLE IS APPROPRIATELY SUPPORTED
BEFORE STARTING REPAIRS.
DO NOT OVERLOAD. OVERLOADING CAN CAUSE DAMAGE
TO OR FAILURE OF THE JACK.
ONLY ATTACHMENTS AND/OR ADAPTERS SUPPLIED BY THE
MANUFACTURER SHALL BE USED.
THIS JACK IS DESIGNED FOR USE ONLY ON HARD LEVEL
SURFACES CAPABLE OF SUSTAINING THE LOAD. USE ON
OTHER THAN HARD LEVEL SURFACES CAN RESULT IN JACK
INSTABILITY AND POSSIBLE LOSS OF LOAD.
READ, STUDY AND UNDERSTAND THE OPERATING MANUAL
PACKED WITH THIS JACK BEFORE OPERATING.
FAILURE TO HEED THESE WARNINGS MAY RESULT IN LOSS
OF LOAD, DAMAGE TO JACK, AND/OR FAILURE RESULTING
IN PROPERTY DAMAGE, PERSONAL OR FATAL INJURY.
SPECIFICATIONS
Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000 Lbs .
Low Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43-5/8"
Raised Height . . . . . . . . . . . . . . . . . . . . . . . . . . 73-1/4"
Saddle Tilt Forward . . . . . . . . . . . . . . . . . . . . . . . . . 23°
Saddle Tilt Backward . . . . . . . . . . . . . . . . . . . . . . . 16°
Saddle Tilt Side to Side . . . . . . . . . . . . . . . . . . . . . . . 7°
Max . Lifting Head Size . . . . . . . . . . . 18-1/2" x 18-1/2"
Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . 134 Lbs .
CTJ-1000PPJ
CTJ-1000PPJ_manual_072507.indd 1
• Parts Breakdown
FOR YOUR SAFETY AND TO PREVENT INJURY:
Use jack for lifting
purposes ONLY.
Always support
vehicle with
jack stands.
THIS OPERATING MANUAL CONTAINS
IMPORTANT SAFETY INFORMATION .
READ CAREFULLY AND UNDERSTAN ALL
INFORMATION BEFORE OPERATING THIS TOOL .
SAVE THIS MANUAL FOR FUTURE USE .
CTJ-1000PPJ
1
1000 Lb.
Pedestal Pit
Transmission
Jack
Rev. 07/25/07
7/25/07 5:06:07 PM
Advertisement
Table of Contents
Related Manuals for Cornwell Tools CTJ1000PPJ
Summary of Contents for Cornwell Tools CTJ1000PPJ
- Page 1 Operating Instructions • Warning Information • Parts Breakdown Meets or exceeds ASME PALD-1997 standards for performance & safety. THE USE OF THIS JACK IS LIMITED TO THE REMOVAL, FOR YOUR SAFETY AND TO PREVENT INJURY: INSTALLATION, AND TRANSPORTATION IN THE LOWERED POSITION, OF TRANSMISSIONS AND DIFFERENTIALS.
- Page 2 Owner/User respOnsibility beFOre Use The owner and/or user must have an understanding of the Air may become trapped in the hydraulic system during manufacturer’s operating instructions and warnings before transit. To purge air: using the transmission jack. Personnel involved in the use 1.
- Page 3 parts breaKDOwn - CtJ-1000ppJ ITEM NO. PART NO. DESCRIPTION QTY. RS6645BL2 Hydraulic Unit RS779501BL2 RS6644W Saddle Assembly RS6645PABL2 Pump Assembly RS6645FPABL2 Foot Pedal Assembly RS664406W Finger RS7700CH Chain RS6645RRABL2 Release Rod with Knob RSSC301A Caster RS305004WK Wheel Kit (8 bolts & nuts) Not Shown: RS779502 Bolt Kit...
- Page 4 warranty COVeraGe Cornwell Quality Tools Company (“Cornwell”) warrants against defects in material and workmanship on this product for a period of TWO (2) YEARS from the date of original retail purchase. Subject to the conditions and limitations set forth below, Cornwell will, at its option, either repair or replace any part of the product(s) that proves defective by reason of improper workmanship or materials.
