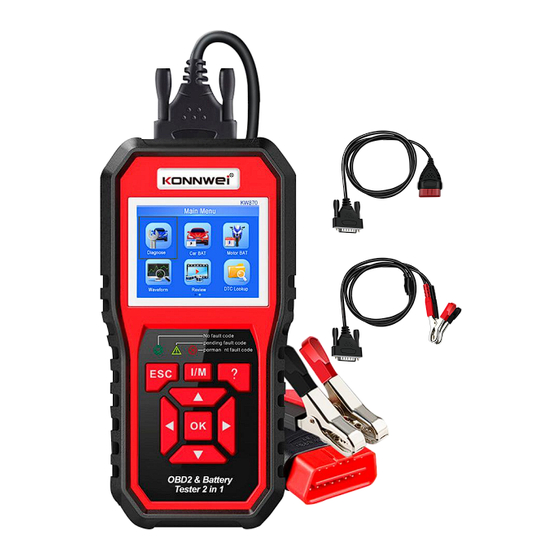

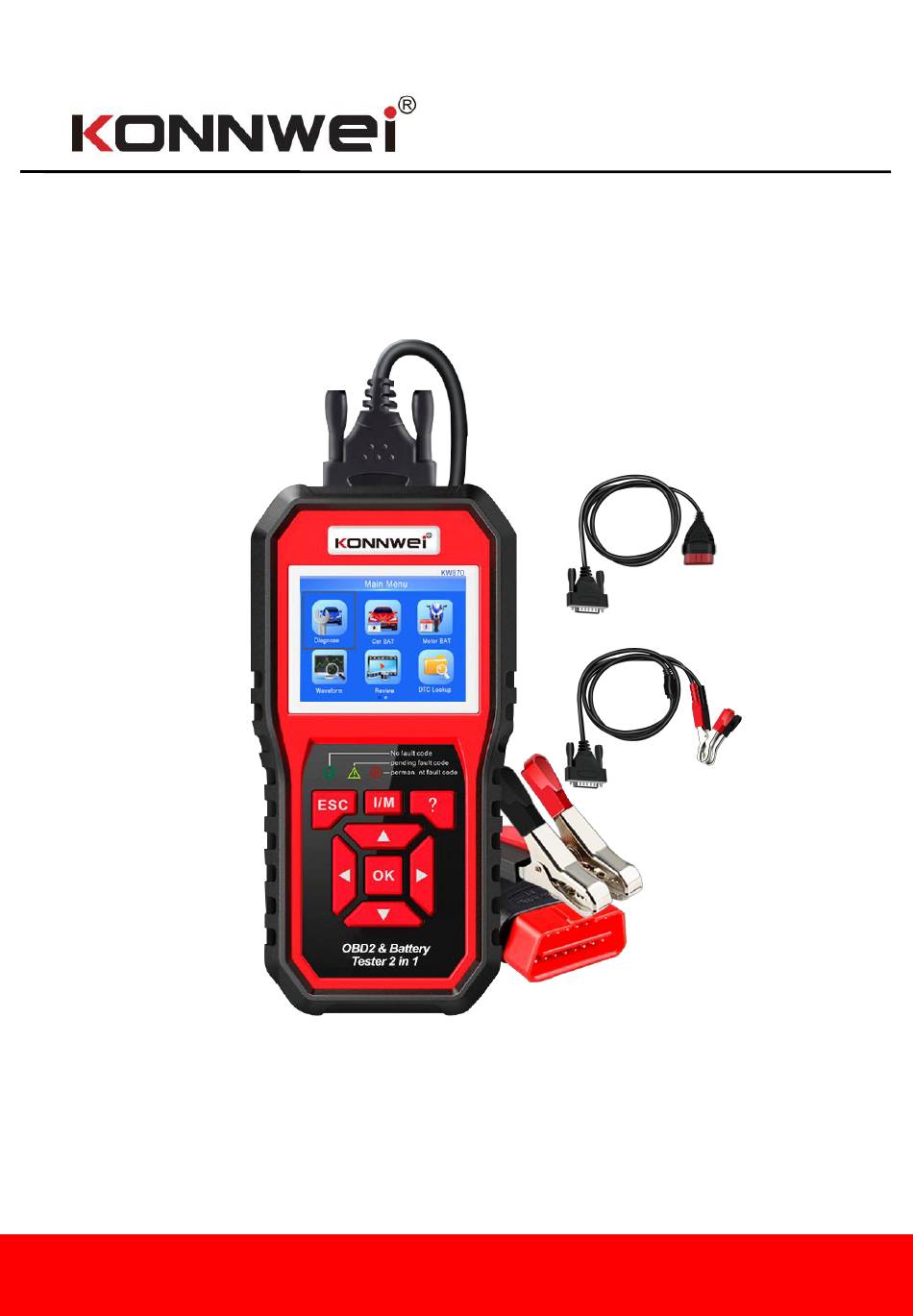

- Page 1 KW870 User's Manual Car & Motorcycle Battery Tester OBDII Diagnostic Scanner...
-
Page 2: Product Profile
KW870 Car battery tester & car OBDII Diagnostic Tool 2 in 1. KW870 Works on all 1996 and newer 12V gasoline and diesel that are OBD II compliant.It can identify the cause of your CHECK ENGINE and perhaps fix it without going to see your dealer. -
Page 3: Main Menu Description
3 . Main Menu Description OBDII Diagnostic Menu Car Battery Tester Menu Motorcycle Battery Tester Menu Main Menu Main Menu Diagnostic Car BAT Motorcycle BAT Print Data Tool Setup Help Waveform Review DTC Lookup 3.1 Choose “ Diagnostic “ For OBDII Diagnosis . Monitor Status MIL Status DTCs in this ECU... - Page 4 3.3 Read Codes: Check The Car Fault Problem:Select [Read Codes] and press OK button in Diagnostic Menu. If there are some codes, the screen will display the codes as shown below: Read Codes Current DTCs($03) P0010 1/11 Pending DTCs($07) A camshaft Position Actuator Circuit/Open Bank 1 Permanent DTCs($0A) Record DTC...
- Page 5 3.6 Data Stream: Press UP or DOWN button to select Data Stream in Main Menu interface and then press OK button to confirm，the screen will display the interface as shown below: Datastream 1/17 View Graphic Items -24.2 -89.2 Fuel system 1 status Fuel system 2 status Calculated LOAD Value 9.0%...
- Page 6 3.9 On-board monitoring: This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems. Diagnostic Menu On- Board Monitoring Read Codes Catalyst Monitor B1 Erase Codes Sensor Heater B1 - S1 I/M Readiness Sensor Heater B1 - S2 Data Stream Freeze Frame O2 Sensor Test...
- Page 7 After entering car battery test program, tester displays Main Menu, Tester “ Battery In-vehicle or Out-of-Vehicle” Press UP/DOWN key to select battery location, vehicle or out vehicle, then press ENTER key to confirm Main Menu Battery Location In - Vehicle Out - Of - Vehicle Diagnostic Car BAT...
- Page 8 Measurement Standard Measurement Range 100-2000 100-2000 100-2000 100-2000 26A17-245H2 100-1400 100-1400 100-2000 100-2000 CCA: Cold Cranking Amps, specified by SAE&BCI, most frequently used value for starting battery at 0°F(-18 °C) BCI: Battery Council international standard CA: Cranking Amps standard, effective starting current value at 0°C MCA: Marine Cranking Amps...
- Page 9 Recharge / Replace / Bad cell, Replace / Charge, Retest ) For Example ,Select “ Battery in- vehicle” , Then show below data Battery Location In - Vehicle In- Vehicle Battery Test Out - Of - Vehicle Cranking Test Charging Test For example , Select “...
-
Page 10: Start Engine
Battery Test Cranking Test Charging Test Please turn off the engine before pressing Enter to enter the test Cranking Test Cranking Test TIME: 580ms MAX: 12.69V MIN: 10.26V START ENGINE CRANKING NORMAL There will be a prompt after entering, please proceed to the next step according to the prompt. - Page 11 37mvV 13.38v Charging Test Charging Test Loaded 14.44V Unloaded 14.0V Increase RPM to 2500 r/min and keep it Ripple 153mV 10 seconds, Press ENTER to continue CHARGING NORMAL There will be a prompt after entering, please proceed to the next step according to the prompt.
- Page 12 Main Menu Diagnostic Car BAT Motorcycle BAT Waveform Review DTC Lookup CUR: Current Voltage MAX: Maximum Voltage during Ignition MIN: Minimum Voltage during Ignition waveform will stay static until there's changes in the voltage changes detected Various vehicle voltage analyses •...
- Page 13 Battery Status corresponding with Battery Voltage (After Ignition) Battery Voltage Battery Status Effects and Measures Battery not be charged; Too Low 12.8V-13.2V Check alternator or other electrical load 13.2-14.BV Normal Normal May damage battery, >14.BV High Voltage Check alternator stabilizer Notice: If the current detected battery voltage 11.9V, after a...
- Page 14 Setup : Select language English, French, German, Dutch, Spanish, Russian,Portuguese, Italian,Polish Tool Setup Main Menu Language Unit of Measure Beep Device self - Test Print Data Tool Setup Help Language Language English Dutch Français Español Deutsch Pусский Italiano Português Polski Help: ...
-
Page 15: Service Procedures
2. A PC or laptop with USB ports 3. USB cable Step : 1)Downloading the applications from our website www.konnwei.com 2)Run uplink.exe in your computer(Mac OS and linux does not compatible) 3)Press and hold any button until the USB cable is connected with computer and release it after the tool display a message "Update Mode"...
