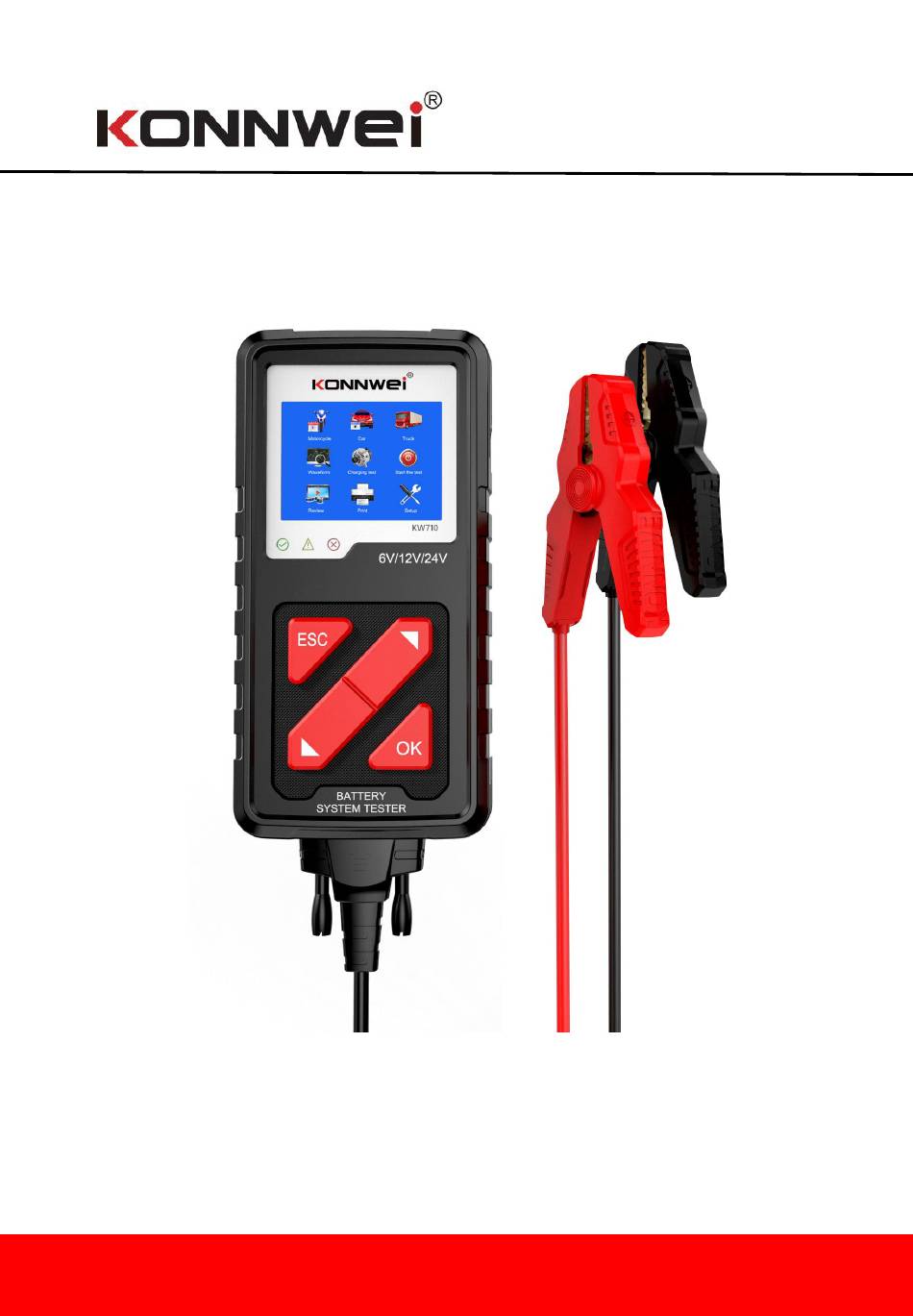

- Page 1 KW710 User's Manual 6V, 12V, 24V battery tester...
- Page 3 KW710 KW710 Battery Tester can test all 6V, 12V, 24V automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, etc. it adopts the state-of-the -art conductance testing technology in the word to easily, quickly and accurately measure the actual...
-
Page 4: Menu Selection
KW710 Noted : If test on the vehicle, please make sure to disconnect all loads, and don't out the key in the ignition position and must close the door . Connect the red clip to the positive (+) terminal of the battery and the black clip to the negative (-) terminal. - Page 5 KW710 Set Battery Rating 51814 51913 12N10-3A 53030 SOH 100% 12N10-3A-1 12N10-3A-2 GOOD-RECHARGE 12N11-3A-1 1210-3B 12N14-3A 12N12A-4A-1 mΩ CCA: 131A R:23.01 12N16-3B 12N24-3 VOL: 12.19V STD: 12N9-4B-1 12N24-3A 12N5.5-3B Car menu After entering car menu , Tester will display the following contents in a sequence, select accordingly:“...
- Page 6 KW710 Select Type Select Standard Regular Flooded AGM Flat Plate AGM Spiral Truck menu After entering Truck menu , Tester will display the following contents in a sequence, select accordingly: “ Battery In-vehicle or Out-of-Vehicle” Press UP/DOWN key to select the battery location, in vehicle or out of vehicle, then press ENTER key to confirm.
-
Page 7: Waveform Menu
KW710 Waveform menu press WAVEFORM FUNCTION button, The screen will display the interface as shown below: CUR: Current Voltage MAX: Maximum Voltage during Ignition MIN: Minimum Voltage during Ignition;The waveform will stay in static u ntil there's changes in the voltage changes detected Battery Test 1.Battery location: select inside or outside the car. - Page 8 KW710 usually uses one or more standard systems. KW710 battery tester each battery according to the selected system and rating. Use UP/DOWN key to select according to the actual system standard and rating marked on the battery. Battery Description Range Standard Cold Cranking Amps, specified by SAE&BCI, most...
- Page 9 KW710 Set Battery Rating Test Result SOH 100% Actual Battery Rating GOOD BATTERY Resistance mΩ CCA: 1415A R： 2.12 VOL:14.10V STD: 900A Test Voltage Value Standard Battery Rating Battery Tester Result Result Description The battery is without any problem, please be relaxed to use.
-
Page 10: Cranking Test
2.Press the enter key to do cranking system test. 3. The tester will prompt to start the engine. 4. The KW710 tester will displays the test results : the max cranking voltage, the min the cranking voltage, and the cranking time in milliseconds, cranking lower / higher etc. -
Page 11: Charging Test
KW710 Cranking Test Result in conclusion Description Normal cranking The cranking voltage is normal and the battery is fully charged. Cranking low The cranking voltage is lower than the normal value, and the starter malfunction is diagnosed. The battery must be The battery state of charge is too low for the starter test. - Page 12 KW710 In - Vehicle Charging Test Battery Test Cranking Test Charging Test 108mV 14.34V Charging Test Charging Test Loaded 14.44V Unloaded 14.0V Increase RPM to 2500 r/min and keep it Ripple 153mV 5 seconds, Press ENTER to continue CHARGING NORMAL...
- Page 13 KW710 rotate. Otherwise, replace the damaged or smooth belt and re- test. √ Check the connection between the generator and the battery. If the connection is loose or severely corroded, clean or replace the cable and retest. in conclusion Description The voltage output from the generator to the battery exceeds the normal limit of the normal voltage regulator.
- Page 14 2．A PC or laptop with USB ports; 3．USB cable Step : 1)Downloading the applications from our website www.konnwei.com 2)Run btlink.exe in your computer( Windows 7 /8/10 /xp) Noted ： Mac OS and linux does not compatible 3)Press and hold any button until the USB cable is connected with computer and release it after the tool display a message "Update...
-
Page 15: Service Procedures
KW710 5)Wait for the update process finished, the scanner will be ready to go! we will update to latest version before shipping out, normally there is no need to update for a long while. 6)Restart tester tool finish the whole update . - Page 16 KW710...
