advanced mobular stair system
MC
Code MD.K.007
Rev
00
Edition 11.2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STILO 70 and is the answer not in the manual?

Questions and answers

Related Manuals for ehleva STILO 70

Summary of Contents for ehleva STILO 70

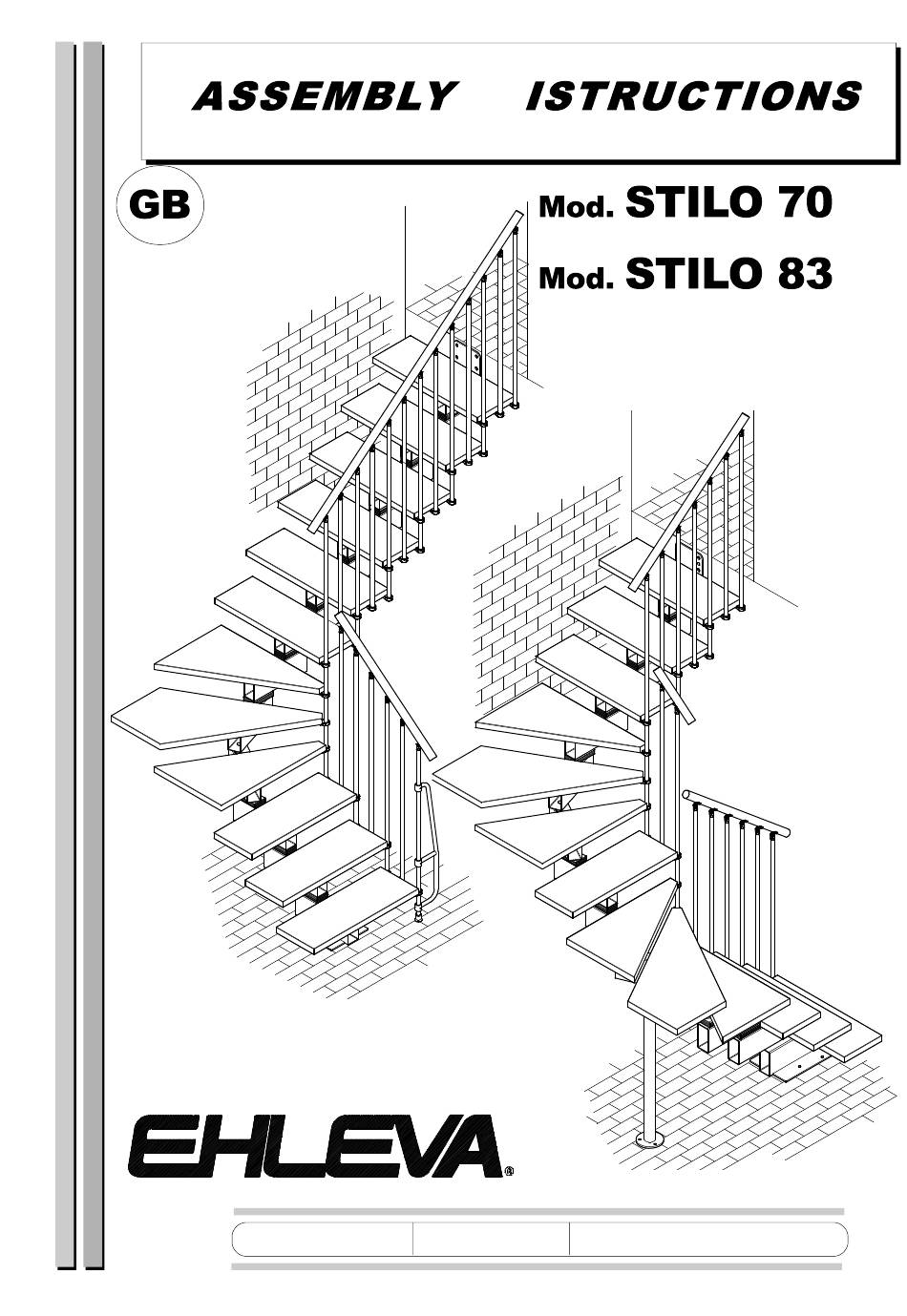

  • Page 1 advanced mobular stair system Code MD.K.007 Edition 11.2008...

  • Page 2: Table Of Contents

    - STILO 70 - STILO 83 - advanced mobular stair system CONTENTS Structure of the manual .......... Pag. 2 PART 1..............Pag. 3 Wooden components VECTOR 70 - VECTOR 83. “ Components VECTOR 70 - VECTOR 83..... “...

  • Page 3: Part 1

    - STILO 70 - STILO 83 - advanced mobular stair system WOODEN COMPONENTS Mod. VECTOR 70 - VECTOR 83  Before proceeding to the various assembly stages, empty the cardboard package and arrange all parts on a flat surface to check that all components included in the list attached are present, that the number of components matches the indications of both the “L”...

  • Page 4: Components Vector 70 - Vector 83

    - STILO 70 - STILO 83 - advanced mobular stair system COMPONENTS Mod. VECTOR 70 - VECTOR 83 Rif. Dis. N. pz. Rif. Dis. N. pz. 19 15 30 30 K133 4.2x19 30 30 Via C.Colombo, 22/A - 42046 - Reggiolo - Reggio Emilia - Italy - 4 - Tel.
  • Page 5 - STILO 70 - STILO 83 - advanced mobular stair system Rif. Dis. N. pz. Rif. Dis. N. pz. K101 10 10 K121 K102 K420 K103 K421 K120 K126 11 11 M16x30 K127 K104 K125 20 15 Ø 22 mm K119 Via C.Colombo, 22/A - 42046 - Reggiolo - Reggio Emilia - Italy...
  • Page 6 - STILO 70 - STILO 83 - advanced mobular stair system Rif. Dis. N. pz. Rif. Dis. N. pz. K129 B207 B301 B200 P105 23 23 P106a K130 22 22 x 10 P106 K131 143 143 P107 31 31 P110...

  • Page 7: Part 2

    These are called “modular stairs” because the rise “A” and tread “P” may be adjusted according to the availabe space “STILO 70” label identifies the stair model having a 700 mm step width The “STILO 83” label identifies the stair model having a 830 mm step width.

  • Page 8: Useful Height Measurement

    - STILO 70 - STILO 83 - advanced mobular stair system USEFUL HEIGHT MEASUREMENT  The measures that need to be assessed are reported in fig. 1. “A” Rise size to be defined based on “Table “A” on pages 9-10-11 “P”...

  • Page 9: Calculating The Tread

    J tread. Consequently, two different tread sizes may emerge, one for the J and Q stretches and one for the W stretch. Please notice that the values of the STILO 70 model must range between 200 mm min and 230 mm max, whereas those of the STILO 83 model must range between 220 mm min and 250 mm max.

  • Page 10: Calculating The Rise

    - STILO 70 - STILO 83 - advanced mobular stair system CALCULATING THE RISE (table “A”)  The “table A” below shows the values for the rise according to the “H” height measured previously. Moreover the number of K106 spacers to be mounted is reported, also with reference to the height.
  • Page 11 - STILO 70 - STILO 83 - advanced mobular stair system Spacer number Spacer number Rise “A” Rise “A” Alzata Alzata 2845 3115 2850 3120 2855 3125 2860 3130 2865 3135 2870 3140 2875 3145 2880 3150 2885 3155 2890...
  • Page 12 - STILO 70 - STILO 83 - advanced mobular stair system Spacer number Spacer number Alzata Rise “A” Alzata Rise “A” 3380 3645 3385 3650 3390 3655 3395 3660 3400 3665 3405 3670 3410 3675 3415 3680 3420 3685 3425...

  • Page 13: Configuration

    - STILO 70 - STILO 83 - advanced mobular stair system CONFIGURATION  The available configurations and their relevant sizes are reported below. Please notice that, for brevity’s sake, only right-climbing staircases are illustrated. Each of the drawings presented is matched by its left-climbing counterpart.

  • Page 14: Configuration "U

    - STILO 70 - STILO 83 - advanced mobular stair system CONFIGURATION “U” STILO 70 STILO 70 STILO 70 L=740 L=740 L=740 X 1740-1890 X 1940-2120 X 1540-1660 1440 1440 1440 Z 1180-1210 STILO 83 STILO 83 STILO 83 L=870...
  • Page 15 - STILO 70 - STILO 83 - advanced mobular stair system STILO 70 L=740 Y 840-1900 Z 1580-1670 STILO 83 STILO 70 STILO 83 STILO 70 STILO 83 L=870 L=740 L=870 L=740 L=870 X 1140-1200 1310-1370 940-970 1090-1120 Y 2140-2200...

  • Page 16: Traking

    Position the D03 template on the floor slab, make sure it is aligned with the floor (use a level) and comply with the following references: value V = 260mm min. for the STILO 70 model (side without banister) 325mm min. for the STILO 83 model (side STILO 70= min.

  • Page 17: Preparing Columns And Steps

    - STILO 70 - STILO 83 - advanced mobular stair system PREPARING COLUMNS AND STEPS  Before proceeding to assemble the steps, mount the P107 P107 banister column support fig. 7 -8 - 9 - 10. Ø4 Drill a hole by means of a wood drill in the points identified on the step and achieve a 30 mm depth as shown in fig.

  • Page 18: Assembling The Steps

    - STILO 70 - STILO 83 - advanced mobular stair system ASSEMBLING THE STEP P107 B205 Fig. 11  At this point form the P106 - P106a spacer package which will determine the size of the rise set previously. To define the number of spacers to be used, refer to the “table A”...
  • Page 19 - STILO 70 - STILO 83 - advanced mobular stair system  Having formed a unit, insert the projecting part of the pin into the hole placed under the step support module mounted previously. Insert the K119 plate into the pipe of the unit described above and anchor everything by means of the K127 screw and the K126 washer.
  • Page 20 - STILO 70 - STILO 83 - advanced mobular stair system  Insert the K63 column into the P107 support mounted previously. By means of a level check that it is vertical and lock it temporarily in the position illustrated in fig. 16.
  • Page 21 - STILO 70 - STILO 83 - advanced mobular stair system  Continue assembling the following steps P Max according to the same procedure until the first STILO 70= 230 mm L21 is achieved where the staircase starts STILO 83= 250 mm turning.
  • Page 22 - STILO 70 - STILO 83 - advanced mobular stair system P Min  STILO 70= 200 mm Similarly, proceed to mount the L22 turning step by STILO 83= 220 mm following the same procedure described above. Also in this case, the step must be positioned in the furthest backward possible tread position (P min) (fig.
  • Page 23 - STILO 70 - STILO 83 - advanced mobular stair system  After having reached the ground, the K102 element must be used as the last step. Assemble the module as described above without tightening fully and adjust its position according to the tread.
  • Page 24 - STILO 70 - STILO 83 - advanced mobular stair system  The last column must be cut before being assembled. The cutting length T is calculated according to the formula reported in figure 29. Where A is the rise value (fig. 29) T = A - 146 (mm) Ø10...

  • Page 25: Mounting The Column And Bracket

    - STILO 70 - STILO 83 - advanced mobular stair system MOUNTING THE COLUMN AND/OR BRACKET WARNING!!! It is strictly prohibited to use and climb on the stairs before having carried out the stiffening and support operations.  Moreover, the point where to insert the k121 support Column must be identified. The drawings on 12-13-14 report the points where the staircase may be adequately supported SEE symbol.
  • Page 26 - STILO 70 - STILO 83 - advanced mobular stair system  Cut the K122 Column according to the H1 - 10 mm . (fig. 33) Fig. 33  To complete the operation, cover all anchoring screws (arrival and departure modules) with their relevant K131 caps.
  • Page 27 - STILO 70 - STILO 83 - advanced mobular stair system  In certain cases, no support column may be added, as shown above; in such cases it is advisable to support the staircase by means of a K121 support bracket to be inserted by drilling a min 150 mm deep hole in the wall closer to the staircase and embed the bracket as described in fig.

  • Page 28: Intermediate Column Assembly

    - STILO 70 - STILO 83 - advanced mobular stair system INTERMEDIATE COLUMN ASSEMBLY  An intermediate column may be mounted on the step. It shall be positioned between the two columns mounted previously. Measure the distance between the two supports, position the P110 support between them and trace the position of the holes, as shown in figure 39.
  • Page 29 - STILO 70 - STILO 83 - advanced mobular stair system CHECKING AND MOUNTING ADDITIONAL COLUMNS  Now the correct position of the columns assembled needs to be checked. Check that they are vertical and that the cable supports face outside the staircase, as shown in fig. 36 ...

  • Page 30: Assembling The Handrail

    - STILO 70 - STILO 83 - advanced mobular stair system ASSEMBLING THE HANDRAIL  Place the handrail on the first support approx. 40-50 mm far from the first column (fig. 37) By referring to the housing, drill a Ø3 preliminary hole to anchor the handrail in its K65 housing.

  • Page 31: Assembling Handrail Cables

    - STILO 70 - STILO 83 - advanced mobular stair system  After having assembled the handrail the K68 plug must be mounted at both ends. Place the plug at one hand and trace the position of the anchoring holes.

  • Page 32: Completion And Checks

    - STILO 70 - STILO 83 - advanced mobular stair system COMPLETION AND CHECKS Ø Tass. Fig. 40  Mount the P105 plugs both in the front and back side of the step support modules (fig. 41) P105 P105 Fig. 41 Via C.Colombo, 22/A - 42046 - Reggiolo - Reggio Emilia - Italy...
  • Page 33 - STILO 70 - STILO 83 - advanced mobular stair system  After the assembly operations have been completed, check and test that the staircase is stable and all components are firmly anchored. As regards the wall anchoring points, refer to the drawings reported on page 12-13-14.

This manual is also suitable for:

Stilo 83
