Summary of Contents for socomec MASTERYS BC+ 10

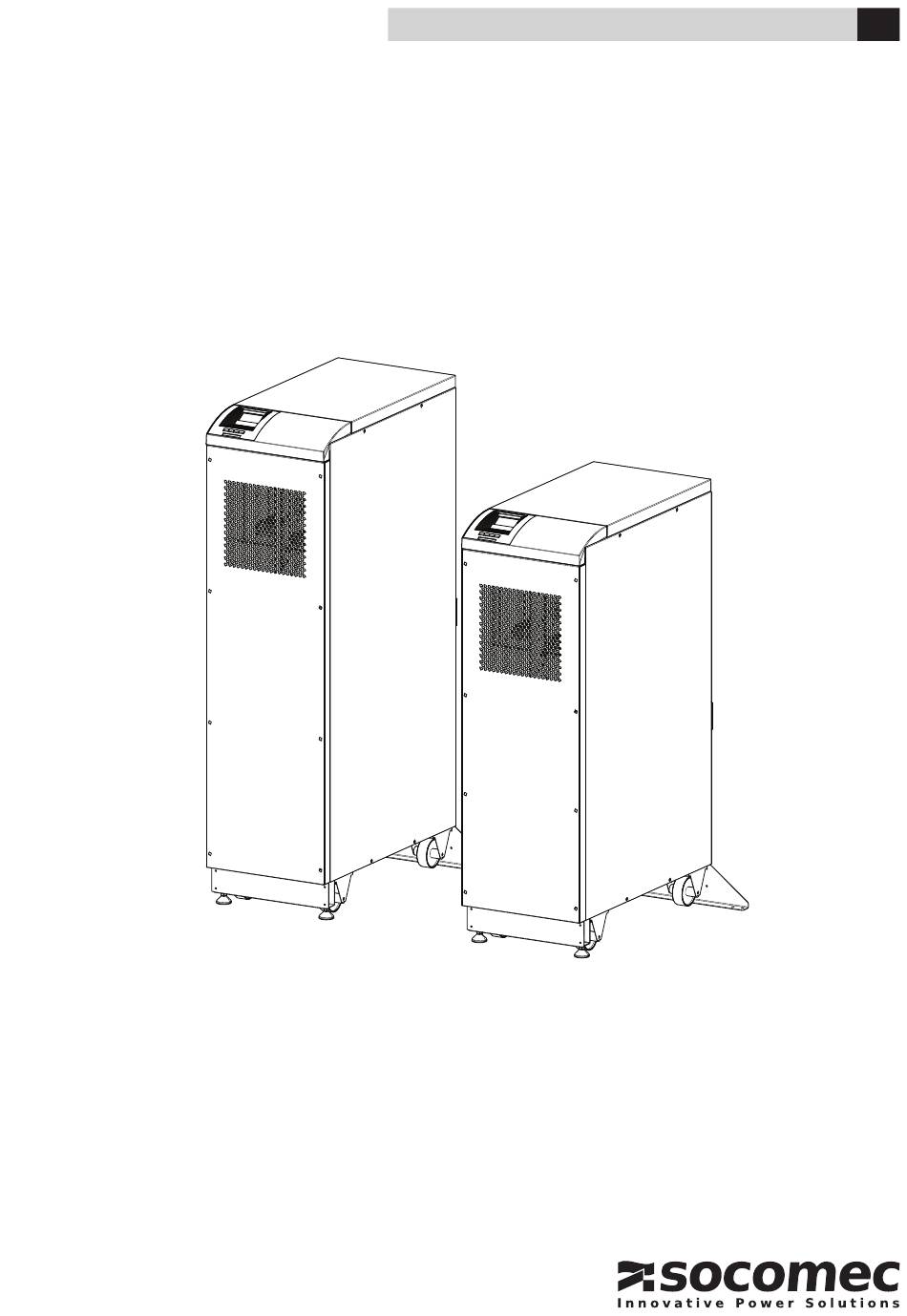

- Page 1 INSTALLATION AND OPERATING MANUAL MASTERYS BC+ 10-20 kVA...
- Page 2 Ask your Socomec dealer for your activation code. Visit us at www.socomec.com for more info. (tool page). This Application is meant to support the User when installing the relevant SOCOMEC products in tutoring the installation step by step. The Application shall in no way substitute the installation and user manual provided with this SOCOMEC product, which remains the sole accurate instructions in terms of safety, handling, connection and use of SOCOMEC products.
-
Page 3: Table Of Contents
OPERATION WITH MOTOR GENERATOR (GENSET) ........43 MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... - Page 4 FANS & CAPACITORS ............57 14. SAFEGUARDING THE ENVIRONMENT 15. TECHNICAL SPECIFICATIONS MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC...
-
Page 5: Certificate And Conditions Of Warranty
UPS inactivity. SOCOMEC may, at its own discretion, opt for the repair of the product or the replacement of faulty or defective parts with new parts, or with used parts of equivalent quality to new parts with regard to function and performance. -
Page 6: Safety Standards
CAUTION! If the unit is found to be damaged externally or internally, or any of the accessories are damaged or missing, contact SOCOMEC. Do not operate the unit if it has suffered a violent mechanical shock of any kind. NOTE! Install the unit in accordance with clearances in order to prevent access to handling devices and guarantee sufficient ventilation (refer to 'Electrical requirements' chapter). - Page 7 For such uses we would advise you to contact SOCOMEC beforehand to confirm the ability of these products to meet the requested level of safety, performance, reliability and compliance with applicable laws, regulations and specifications.
-
Page 8: Description Of Symbols
In the event of contact with the eyes, wash immediately with plenty of water and call a doctor. Call a doctor immediately in the event of accidents or illness. Do not dispose of in normal waste stream (symbol waste electrical and electronic equipment). MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 9: Environmental Requirements And Handling
U P S C A B IN E O R O T H C A B IN E U P S F r e e a r e ≥ 3 0 c m MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 10: Handling
Failure to heed this warning could result in the unit falling over, equipment damage, injury and even death. Secure the UPS with feet only when it is in position with the cable connected. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 11: Electrical Installation
Auxiliary mains thermal-magnetic circuit breaker. External maintenance bypass switch Unit output switch. Unit Auxiliary mains switch. External maintenance bypass 1. Connect signal status to the ADC+sl board. 2. See 'Standard features and option' chapter. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 12: Ups Parallel Configuration
Communication cables must not exceed 30 metres (made of a specific cable type). Specific cable type with shield which must be used: F/UTP (or FTP) cat 5e awg 26 100 Ω. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 13: Recommended Configuration )
External maintenance bypass switch Unit output switch System shutdown switch 1. Connect signal status to the parallel board of the concentrator unit. 2. Connect signal status to the unit’s parallel board. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 14: Separate Mains ( Recommended Configuration )
External maintenance bypass switch Unit output switch System shutdown switch 1. Connect signal status to the parallel board of the concentrator unit. 2. Connect signal status to the unit’s parallel board. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 15: Parallel Setup Rules
Parallel configuration must only be activated by qualified SOCOMEC personnel; in each case arrange the control cables in the relevant cable run as shown in the diagram, leaving the connector(s) unconnected (one incoming and one outgoing control cable must be used). -
Page 16: Electrical Requirements
Output cables should be less than 15 metres. 3. Use a single type-B selective (S) breaker installed upstream of the inputs power supply. 4. See "5.2 Rear side" chapter. 5. Determined by the size of the terminals. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... - Page 17 NOTE: 3-Phase 4-Wire Input Power is required. The unit can be installed in TN-C, TN-S, TT and IT AC distribution systems (IEC 60364-3). For TN-C system see 'External backfeed protection' chapter. Contact SOCOMEC for detailed information. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC...
- Page 18 Risk of Voltage Backfeed COM1/COM2 U > NC1/NC2 Backfeed trip coils supply XB 28 XB 29 X B 2 8 X B 2 9 Not present in case of internal back- feed. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC...
- Page 19 Detail COM 2 BKF AUX 220-240 V rms 1.6 A time delay COM1 BKF MAINS 220-240 V rms 1.6 A time delay 1. COM1 and COM2 are connected to the neutral. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC...
- Page 20 X40 Auxiliary Mains terminal block Mains BKF power isolation device X29 Not connected U > X28 Mains BKF terminals XB28 Remote switches – rated current XB29 Model T1 (A) 10 3/3 15 3/3 20 3/3 MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC...
- Page 21 X28 Mains BKF terminals AUXILIARY MAINS Remote switches – rated current Model T1 (A) T2 (A) 10 3/1 (two poles) U > 15 3/1 XB28 (two poles) XB29 20 3/1 (two poles) MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC...
-
Page 22: Cable Positioning
≥10 cm 1. Control cables: connections between the cabinets and each unit, alarm signals, connection to the alarm signals from and to ADC+sl card, UPS power off (UPO), connection to GENSET. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 23: Overview
5. OVERVIEW 5.1 Front view Control panel Control panel Model "B" Model "M" MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 24: Rear Side
Q3 (output switch / E.S.D.) Q5 (manual bypass switch) Q4 (auxiliary mains switch) Q2 (battery switch) Q1 (mains supply switch) Terminal connection Battery fuses 1. Only installed on separate mains version. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... - Page 25 XB28 XB29 Mains and Auxiliary mains connected separately with inter- Mains and Auxiliary mains connected separately nal backfeed XB28 XB29 Input mains Auxiliary mains BKF Mains BKF Aux Output Battery MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC...
- Page 26 Position of the switches O F F Q5 manual bypass switch Follow the bypass procedure (chapter 'Bypass operations') before removing the bypass switch protection cover (A). MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC...
-
Page 27: Connections
Cables with anti-vermin ferrule • Remove the protection; • Carry out all the required connection; • Fix the protection. Mains input Auxiliary input Output 1. Only available for separate mains version. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 28: Ups Connection
Tightening torque 3 Nm Ground terminal M6 nut. Tightening torque 8 Nm. 6.1.3 Mains and auxiliary mains connected separately ( 3/1 models Tightening torque 3 Nm Ground terminal M6 nut. Tightening torque 8 Nm. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 29: Control Panel
To unlock the keypad the buttons must be pressed in the reverse sequence: ENTER > DOWN > UP > ESC These sequences work only on the MIMIC PANEL page. When the keypad is locked the key symbol is shown. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 30: Menu
ON AUTO BYPASS The output load is on static bypass UNIT AVAILABLE Energy saver is active (inverter is off temporarily) STANDBY Unit on standby LOAD OFF The output load is off MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... - Page 31 UNIT OUTPUT OUTPUT FROM STATIC SWITCH BYPASS INPUT NOTE! When in converter mode, 6 and 7 are not shown. Bar styles identify the energy flow: • solid: enabled • dotted: disabled MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC...
- Page 32 General alarm On maintenance bypass Bypass mode (or Eco Mode) not possible Scheduled Inspection warning: machine inspection required, call SOCOMEC support service Operating on GenSet NOTE! Available only with ADC+SL option card MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC...
- Page 33 > 100% Battery status Battery charging Upper level fl ashing Battery discharging Level reached is fl ashing NOTE: Battery symbol is shown only if battery Battery open available Battery alarm fl agged MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC...
-
Page 34: Menu Tree
▼ ENERGY SAVER ▶ ENERGY SAVER ON • ▶ ENERGY SAVER OFF • ▼ MAINTENANCE ▶ ALARMS RESET • • ▶ POSTPONE MAINT. ALARM • • ▶ LED TEST • • MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... - Page 35 USER DEVICE REF • ▶ USER DEV LOCATION • ▼ USER PARAM ▶ LANGUAGE • ▶ PASSWORD • ▶ BUZZER • ▼ ADC+SL CONFIG ▶ CARD 1 • ▶ CARD 2 • MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC...
- Page 36 ▶ RECH. CURR. LIMIT ▶ TEMP. COMPENSATION ▶ MAINS CONFIGURATION • ▼ PARALLEL SYSTEM ▶ UNITS IN PARALLEL • ▶ REDUNDANCY LEVEL • ▶ UPO CONFIGURATION • (^). depending on setting. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC...
-
Page 37: Menu Function Descriptions
• ENERGY SAVER: ON/OFF: this function sets/resets the ENERGY SAVER MODE. • MAINTENANCE: ALARMS RESET: this function clears the alarm history, LED TEST: this function activates the LED by flashing for few seconds, USER REPORT. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 38: User Params Menu
UPS SETTINGS: critical machine settings for output, batteries and backfeed. Some parameters cannot be modified when the UPS supplies the load by INVERTER or BYPASS. Wrongly configured UPS SETTINGS could damage the load or batteries. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 39: Operating Procedures
• Wait approx. 2 minutes for the UPS shutdown. NOTE: the controlled shutdown of each server connected to the LAN can be managed by shut- down software. • Carry out the operations indicated on the display. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 40: Bypass Operations
• Carry out the operations indicated on the display. NOTE! When an external maintenance bypass is present, put the switch to position 0 (OFF). 1. Not monitored by the single UPS. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 41: Extended Out Of Service
• NORMALLY CLOSED (the UPS is powered off when the button/switch connected to the UPO is open). • NORMALLY OPEN (the UPS is powered off when the button switch connected to the UPO is closed). MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 42: Operating Modes
A high speed digital control is used to keep only the units needed to supply the energy to the load in operation. When the power consumed by the load increases the UPS units needed to supply the increased power requirements switch on immediately. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 43: Converter Mode
With a generator, the frequency and voltage ranges of the auxiliary mains can be increased to accept the instability of the GENSET and at the same time to avoid operation from the battery or risks of out-of-synchronisation switching on to the bypass. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 44: Standard Features And Option
Kit for IP21 1. In case of units in parallel, these options have to be installed in option slots on the concentrator unit (unit 1 by default). Required option Incompatible option MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 45: Standard Web
Download the after-sales UPS history log (hst fi le) 1. Tested on Windows 7 with IE 9, Chrome 36, Firefox 24, Safari 5.0 with javascript enabled through a standard Ethernet connection. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 46: Adc+Sl Card
• Relay 1 gives the possibility of choosing between normally closed (NC1) or normally open (NO1) position. Relays 2, 3 and 4 only have normally open position (NOx). • On connector , Cx means common, NOx means normally open position. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... - Page 47 1. The acronyms mentioned are linked to MODBUS table (Snnn=Status/Annn=Alarm). 2. A self-locking emergency push button must be used for the UPS Power Off input. Note: custom configuration is also available. For more information contact Socomec. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC...
-
Page 48: Temperature Sensor
The temperature sensor can be used to monitor the battery temperature. The ADC+SL card can be ordered with or without the temperature sensor in kit. If the sensor is present, temperature values are available on MODBUS protocol. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 49: Net Vision Card
(MODBUS TCP - IDA). 11.5 BACnet card With the BACnet card fitted in the options slot, the UPS can be monitored from remote stations using the appro- priate protocol (BACnet - IDA). MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 50: Remote Touchscreen Display
Available only with ADC+SL option card. 11.7 PROFIBUS protocol interface Socomec UPS can be provided with an interface of PROFIBUS ® DP slave type for the UPS to be connected to a PROFIBUS ® PLC. PROFIBUS ® protocol is aimed at exchanging data between input/output monitoring devices and a master unit. -
Page 51: Kit For Tn-C / Neutral-Ground Connection
The PEN conductor is not allowed in case of unbalanced and third harmonic current circulation. TN-C-S connection TN-C connection Input mains Input mains Auxiliary mains Auxiliary mains Output Mains and auxiliary mains connected in common (3/3 models) Mains and auxiliary mains connected separately (3/3 models) MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 52: Ramp For Ups Unloading
Mains and auxiliary mains connected separately (3/1 models) Use the same Neutral PEN section of the power connections. 11.12 Ramp for UPS unloading MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 53: Kit For
11.13 Kit for Front Cover 11.14 Kit for Front and Lateral Cover 11.15 Kit for IP21 MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 54: Troubleshooting
RECTIFIER PREVENTIVE ALARM the Service Dept. The input mains supply is out of tolerance. Verify that the input A035 RECTIFIER INPUT SUPPLY NOT OK voltage and frequency are within the UPS ratings. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 55: System Status
Load on bypass, supplied by auxiliary mains. Load not protected. BYPASS EXTERNAL MAINTENANCE BYPASS S018 External maintenance bypass input. CLOSED S023 GEN SET ON Genset input. S064 CARD IN SLOT 1 PRESENT S065 CARD IN SLOT 2 PRESENT MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 56: Preventive Maintenance
NOTE: servicing of batteries should be performed or supervised by personnel knowledgeable about batteries and required precautions. NOTE: when replacing batteries, use the same model and number of batteries/battery packs. Replacing with incorrect types could result in an explosion. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 57: Fans & Capacitors
(premises, usage or load type) are abnormal or harsh for the equipment. It is advisable to replace consumables as follows Consumable part Years DC capacitor AC capacitor 1. Based on operation of the unit according to the manufacturer’s specification. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 58: Safeguarding The Environment
For any questions regarding the disposal of the product, contact local distributors or retailers. In case of product with incorporated battery, please use the proper recycling. MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... -
Page 59: Technical Specifications
Acoustic noise (ISO 3746) ≤ 46 ≤ 47.5 ≤ 47.5 (@: 70% Pn, Vn, resistive linear load, 25°C) Required cooling capacity Dissipated power (Vin=400 Vrms, Pn) Dissipated power (Vin=400 Vrms,Pn) BTU/h 1740 2354 3310 MASTERYS BC+ 10-20 kVA - IOMMASBCXX0J-EN 00 - SOCOMEC... - Page 60 RCM - EAC - CMIM Protection level IP20 – IP21 (optional) 1. With batteries fully discharged. Call SOCOMEC support service for details. 2. With batteries fully charged. Call SOCOMEC service for details. 3. Pout = 90% Pnom. 4. Initial condition 80%Sn.
- Page 64 Sales offi ces CORPORATE HQ CONTACT: SOCOMEC SAS, 1-4 RUE DE WESTHOUSE, 67235 BENFELD, FRANCE www.socomec.com *IOMMASBCXX0J-EN 00* IOMMASBCXX0J-EN 10.2020...
