Quick Installation Guide
TSOL - ESK350/400/800/1600 - U
Before the Installation
Check the products and accessories:
Microinverter * 1 pcs
AC End Cable * 1 pcs
Bracket A1 * 1 pcs
Bracket B * 2 pcs
Bracket A2 * 1 pcs
M8*12 Screw * 8 pcs
M8*50 Screw * 6 pcs
Spring Washer * 8 pcs
Clevis * 2 pcs
Wire Rope * 4 pcs
(optional)
Protection Cap * 1 pcs
Bracket C1 * 1 pcs
Bracket C2 * 2 pcs
M8*60 Screw * 1 pcs
Washer * 1 pcs
Nut * 1 pcs
(optional)

Advertisement

loading
Need help?

Need help?

Do you have a question about the TSOL-ESK800-U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tsun TSOL-ESK800-U

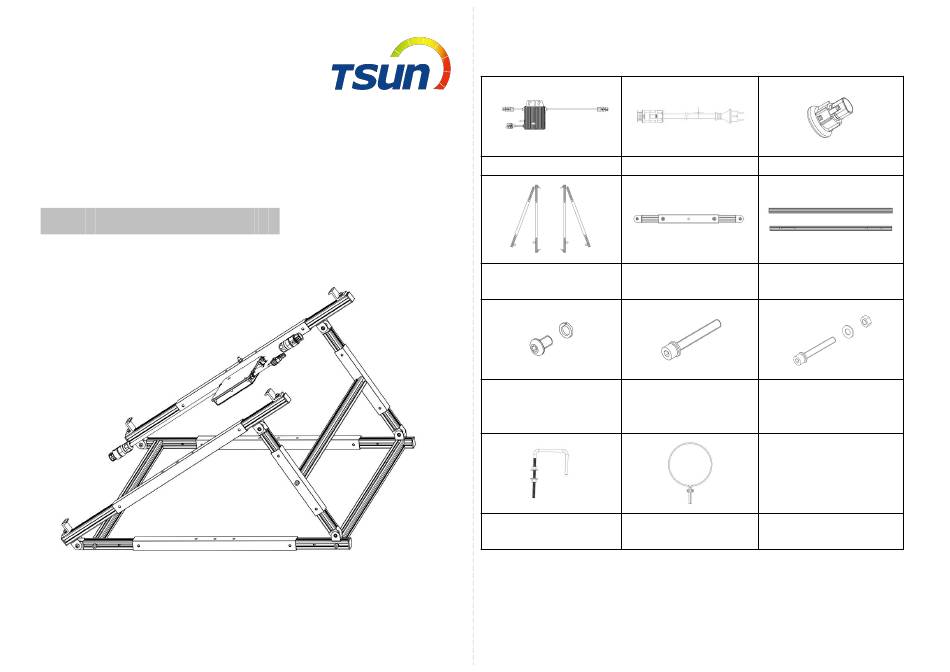

  • Page 1 Before the Installation Check the products and accessories: ① Microinverter * 1 pcs ② AC End Cable * 1 pcs ③ Protection Cap * 1 pcs Quick Installation Guide TSOL - ESK350/400/800/1600 - U ④ Bracket A1 * 1 pcs ⑤...
  • Page 2 Instructions for each parts: ④ Bracket A1 / A2 ① Microinverter M350 / M400 M800 / M1600...
  • Page 3 ⑤ Bracket B Instructions of installation Step 1 : Adjust the length of Bracket A1 and A2 1) Take out the bracket A1 ④ and put it beside the solar module. Unscrew the length screw a and b. Adjust the length and make the distance of two module fasteners longer than the solar module.
  • Page 4 3) Take out the bracket A2 ④ and put it beside the bracket A1. Unscrew the length screw c and d. Adjust the length and make it the same as the bracket A1. Tighten the length screw c and d. 4) Unscrew the length screw a and b of bracket A2 ④.
  • Page 5 Step 3 : Connect Bracket C1/C2 to Bracket A1/A2/B Tips: If this ESK-U is used on the flat ground or walls, make the mounting holes Take out Bracket C1/C2 ⑥ and screws ⑧ . Connect bracket C2 to bracket A1/A2 of bracket C2 in a vertical direction.
  • Page 6 M1600. Step 5 : Fix bracket to the right location 1) While install ESK-U on the flat ground, use ground nails to fix the bracket C2 or put weights (Brick , Stone, Sand bag etc.) on the bracket C2. 3) While install ESK-U on the fences, take out clevis ⑩ and install these two clevises on the bracket C2.
  • Page 7 Hang the bracket on the fences.Use the wire rope to fix the bracket to the fences This may cause the drop out of module fastener and affect the next installations. through the mounting holes. 2) Put the solar module on the bracket. Tips: If the ESK-U is hanged outside the balcony, solar module should be installed and connected first before fix the bracket on the fences.
  • Page 8 Step 7 : Adjust the angle of the solar module Step 8 : Connect the Microinverter Unscrew the length screw e and f. Adjust the angle of solar module as needed.Then 1) Connect the DC connector of the solar module to the microinverter. tighten the length screws.
