Quick Installation Guide
TSOL - ESK350/400 - U
Before the Installation

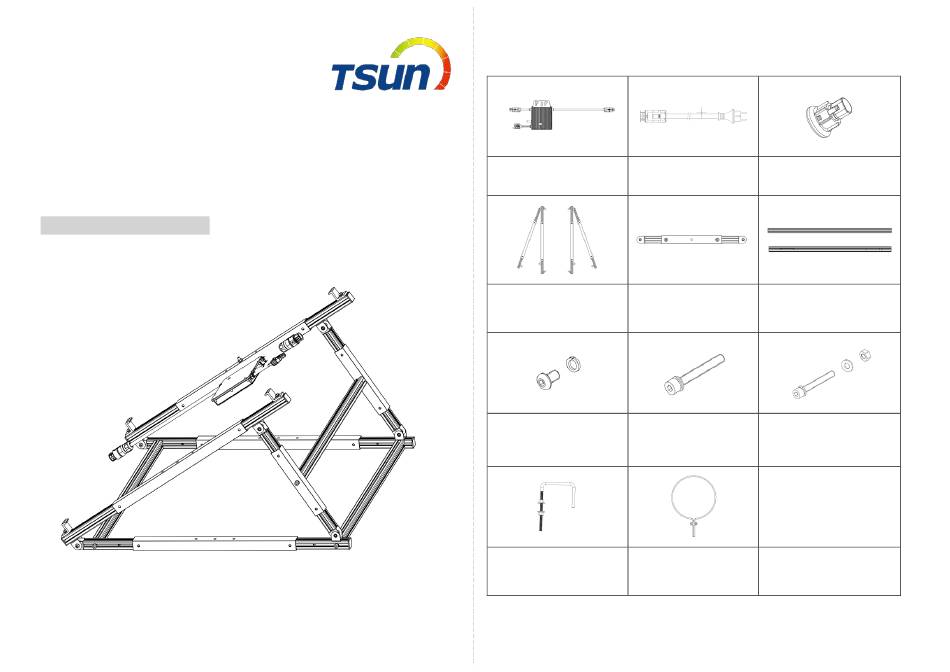

Check the products and accessories:
① Microinverter * 1 pcs
② AC End Cable * 1 pcs
④ Bracket A1 * 1 pcs
⑤Bracket B * 2 pcs
Bracket A2 * 1 pcs
⑦ M8*12 Screw * 8 pcs
⑧ M8*50 Screw * 6 pcs
Spring Washer * 8 pcs
⑪ Wire Rope * 4 pcs
⑩ Clevis * 2 pcs
(optional)
③ Protection Cap * 1 pcs
⑥ Bracket C1 * 1 pcs
Bracket C2 * 2 pcs
⑨ M8*60 Screw * 1 pcs
Washer * 1 pcs
Nut * 1 pcs
(optional)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tsun TSOL-ESK350-U
Summary of Contents for Tsun TSOL-ESK350-U
- Page 1 Before the Installation Check the products and accessories: ① Microinverter * 1 pcs ② AC End Cable * 1 pcs ③ Protection Cap * 1 pcs Quick Installation Guide TSOL - ESK350/400 - U ④ Bracket A1 * 1 pcs ⑥...
- Page 2 Instructions for each part: ① Microinverter M350 / M400 Tips: The length screws of bracket A1 are on the different side than the length screws of bracket A2. The numbers of the length screws on the bracket A1 are the same as those on the bracket A2.
- Page 3 may cause the drop out of length screw and affect the next installations. ⑥ Bracket C1 / C2 2) Unscrew the length screw c and d of bracket A1 ④. Adjust the length and make it the same length between the two parts of bracket A1. Then tighten the length screw c and d.
- Page 4 Step 2: Connect Bracket B to Bracket A1/A2 1) Take out Bracket B ⑤ and screw accessories ⑦, connect bracket B to bracket 2) Repeat the previous step with bracket A2 and B. Step 3: Connect Bracket C1/C2 to Bracket A1/A2/B Take out Bracket C1/C2 ⑥...
- Page 5 Tips: If this ESK-U is used on the flat ground or walls, make the mounting holes Tips: Make the light of microinverter and the screw in the downside direction. of bracket C2 in a vertical direction. If this ESK-U is used on the fences, make the Tips: There are three microinverter mounting holes on the bracket A1.
- Page 6 3) While install ESK-U on the fences, take out clevis ⑩ and install these two clevises on the bracket C2. 2) While install ESK-U on the wall, use expansion screws to fix the bracket C2 on the wall. Hang the bracket on the fences. Using the wire rope to fix the bracket to the fences through the mounting holes.
- Page 7 3) Unscrew the upside module fasteners and adjust their positions. Tighten the Step 6: Install the solar module four module fasteners to fix the solar module on the bracket. 1) Unscrew two downside module fasteners on bracket A1 and A2. Tips: While unscrewing the module fastener, DO NOT unscrew it excessively.
- Page 8 3) Take out the AC end cable and connect the AC connector to the long AC cable of microinverter. Step 9: Start the system Tips: DO NOT adjust length screw e and f at the same time. Insert the AC plug to socket and the system will start producing power a few minutes later.
