- Page 1 Basic Router MKII Router...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 06.10.2022, ID: 533455 (V2)
-
Page 3: Table Of Contents
1.1 Further information........................... 6 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 8 Safety instructions............................. 9 Features............................... 12 Installation and starting up........................ 13 Connections and controls........................23 Cleaning............................... 27 Troubleshooting............................28 Technical specifications........................29 Protecting the environment......................31 Basic Router MKII Router... - Page 4 Basic Router MKII Router...
-
Page 5: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Basic Router MKII Router... -
Page 6: Further Information
Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. 1.2 Notational conventions This manual uses the following notational conventions: Basic Router MKII Router... - Page 7 The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow. Example: Switch on the device. Press [Auto]. ð Automatic operation is started. Switch off the device. Basic Router MKII Router...
-
Page 8: Symbols And Signal Words
This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – danger zone. Basic Router MKII Router... -
Page 9: Safety Instructions
Do not use the device if covers, protectors or optical components are missing or damaged. NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. Basic Router MKII Router... - Page 10 NOTICE! Radio interference This device emits electromagnetic signals. This can cause interference due to overlapping radio waves. Do not use the device in locations where the use of wireless devices is prohibited. Basic Router MKII Router...
- Page 11 NOTICE! Locations subject to explosion hazards This device emits electromagnetic signals. Under unfavourable conditions, radio waves near explosive spots can cause fire or explo‐ sions. Do not use the unit near locations subject to explosion hazards. Basic Router MKII Router...
-
Page 12: Features

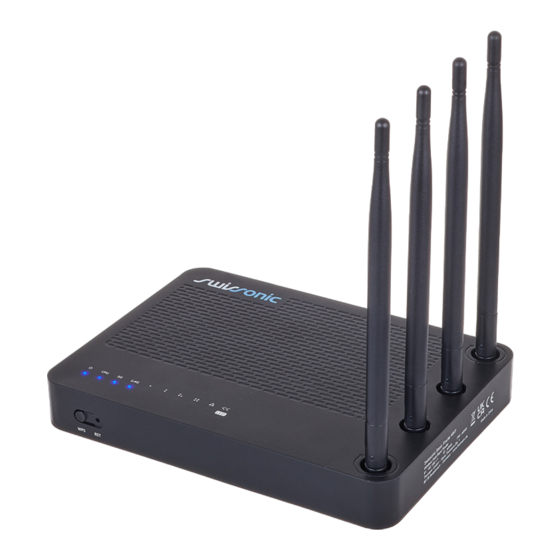

Wireless Dual Band Router (2.4 and 5 GHz) 4 operation modes: Router, Repeater (Extender), Access Point, wireless ISP 1 WAN port (100 Mbps) 4 LAN ports (100 Mbps) Suitable plug-in power supply and network cable included Basic Router MKII Router... -
Page 13: Installation And Starting Up
This equipment uses a frequency range that is free of charge and registration within the European Union. For more information, please visit: http://www.thomann.de. Make sure that no metal objects are located between transmitter and receiver. Avoid interference by other radio and in-ear systems. Basic Router MKII Router... - Page 14 Configure the router as follows: Connect the LAN connector of the device via an Ethernet network cable to your PC. Connect the device to the power supply with the power adapter. ð The device is now operational. Basic Router MKII Router...
- Page 15 Router configuration The router can be configured using a smartphone. On your smartphone, select the ‘Swissonic Basic Router MKII’ or ‘Swissonic Basic Router MKII 5G’ network you want to connect to. Enter http://192.168.1.1 into the address box of the browser.
- Page 16 Installation and starting up Enter the password and click ‘Login’ . The default password is ‘admin’ . 192.168.1.1 ð The home screen opens. Basic Router MKII Router...
- Page 17 Installation and starting up Click ‘Quick Setup’ in the top right corner of the home screen. 192.168.1.1 Basic Router MKII Router...
- Page 18 Installation and starting up Select the ‘Gateway’ mode and confirm with ‘Next’ . 192.168.1.1 Basic Router MKII Router...
- Page 19 OSI model through routers between two networks over an IP net‐ work. Select ‘L2TP/Dual WAN Access L2TP’ if your internet service provider offers this option. Your internet provider sends you the user name and the password. Confirm with ‘Next’ . Basic Router MKII Router...
- Page 20 Installation and starting up Under ‘2.4GHz Wireless’ or ‘5GHz Wireless’ , you can change the default SSID and encryp‐ 192.168.1.1 tion parameters as needed. Confirm with ‘Next’ . Swissonic Basic Router MKII Swissonic Basic Router MKII 5G Basic Router MKII Router...
- Page 21 When the IPTV mode is activated, a separate network band, similar to a VLAN, is used for data transmission of video and TV data so that the Wi-Fi bandwidth of the home net‐ work is not affected. ð The display shows a summary of the settings made. Basic Router MKII Router...
- Page 22 Confirm with ‘Done’ to save the setting. The process may take some time. 192.168.1.1 The Wi-Fi connection between smartphone and router is interrupted during the saving process. Reconnect the smartphone to the network. Swissonic Basic Router MKII Swissonic Basic Router MKII 5G Basic Router MKII Router...
-
Page 23: Connections And Controls
Connections and controls Connections and controls Front panel ö Basic Router MKII Router... - Page 24 Flashes when there is a 2.4-GHz Wi-Fi connection. Flashes when data is being transferred via the LAN port. , , , Flashes when data is being transferred via the WAN port. 2 5 GHz omnidirectional antenna 3 2.4 GHz omnidirectional antenna Basic Router MKII Router...
- Page 25 Connections and controls Rear panel & Basic Router MKII Router...
- Page 26 5 WAN port for connecting to the internet 6 LAN port 1 … 4 for connecting to local network devices. 7 Socket for connecting the plug-in power supply. Basic Router MKII Router...
-
Page 27: Cleaning
Cleaning Cleaning Clean the unit with a dry, soft, lint-free cloth. Stubborn dirt can be removed with a slightly dampened cloth. Never use cleaners containing alcohol or thinner. Basic Router MKII Router... -
Page 28: Troubleshooting
Router is not connecting to the Check if there is a DSL connection. local network or the Internet. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Basic Router MKII Router... -
Page 29: Technical Specifications
175 mm × 179 mm × 128 mm, with unfolded antennas Network cable length 90 cm Weight 232 g (incl. antennas) Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) Default IP address 192.168.1.1 Basic Router MKII Router... - Page 30 Further information Component type Router Wi-Fi standards IEEE 802.11a, b, ac, g, n Data throughput Wi-Fi up to 300 Mbps (2.4 GHz), up to 867 Mbps (5 GHz) Chipset Realtek 8197FH-VG4 + 8812FR-CG PoE Class Basic Router MKII Router...
-
Page 31: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Basic Router MKII Router... - Page 32 Notes Basic Router MKII Router...
- Page 33 Notes Basic Router MKII Router...
- Page 34 Notes Basic Router MKII Router...
- Page 36 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
