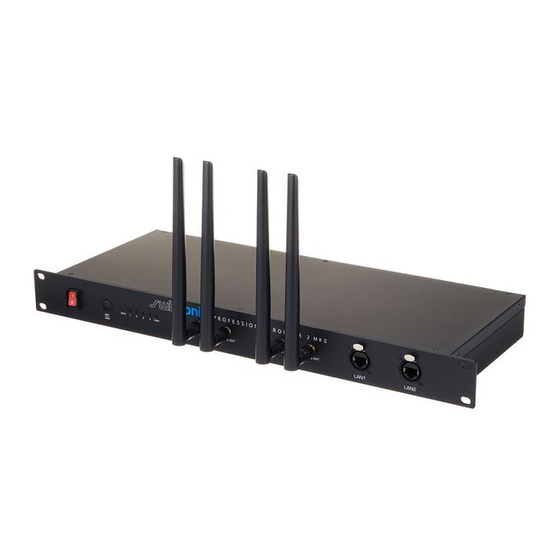

- Page 1 Professional Router 2 MKII Router...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 27.06.2022, ID: 544731...
-
Page 3: Table Of Contents
Features............................... 11 Installation and starting up........................ 12 4.1 PC setup (Windows® 10 operating system)................14 4.2 Cell phone setup (Android®)......................18 Connections and controls........................24 Technical specifications........................27 Troubleshooting............................29 Cleaning............................... 30 Protecting the environment......................31 Professional Router 2 MKII Router... -
Page 4: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Professional Router 2 MKII Router... -
Page 5: Further Information
Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. 1.2 Notational conventions This manual uses the following notational conventions: Professional Router 2 MKII Router... - Page 6 The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow. Example: Switch on the device. Press [Auto]. ð Automatic operation is started. Switch off the device. Professional Router 2 MKII Router...
-
Page 7: Symbols And Signal Words
This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – danger zone. Professional Router 2 MKII Router... -
Page 8: Safety Instructions
Do not use the device if covers, protectors or optical components are missing or damaged. NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. Professional Router 2 MKII Router... - Page 9 Locations subject to explosion hazards This device emits electromagnetic signals. Under unfavourable conditions, radio waves near explosive spots can cause fire or explo‐ sions. Do not use the unit near locations subject to explosion hazards. Professional Router 2 MKII Router...
- Page 10 The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if neces‐ sary, i.e. felt pads or similar. Professional Router 2 MKII Router...
-
Page 11: Features
19" rack-mountable (1 RU) Wi-Fi 6 Standard (IEEE 802.11ax) OFDMA procedure MU-MIMO technology TWT function 880 MHz dual core CPU 5 PPTP tunnels for VPN Broad band functions: DHCP, Static IP, PPPoE PPTP and L2TP WPA3 security protocol Professional Router 2 MKII Router... -
Page 12: Installation And Starting Up
This equipment uses a frequency range that is free of charge and registration within the European Union. For more information, please visit: http://www.thomann.de. Make sure that no metal objects are located between transmitter and receiver. Avoid interference by other radio and in-ear systems. Professional Router 2 MKII Router... - Page 13 Screw the four supplied antennas to the connectors on the front panel of the unit. Connect the device via a suitable mains cable to the power supply. Turn the mains switch on. ð A few seconds after switching on the main switch, the device is ready for use. Professional Router 2 MKII Router...
-
Page 14: Pc Setup (Windows® 10 Operating System)
Enter http://192.168.1.1 in the address bar of the web browser. Confirm with [ENTER]. Enter the password and click ‘Login’ . The default password is ‘admin’ . ð The ‘Basic’ page opens up. The connection status is displayed. Professional Router 2 MKII Router... - Page 15 OSI model through routers between two networks over an IP net‐ work. Select ‘L2TP’ if your internet service provider offers this option. User name and password are available from your internet service provider. Professional Router 2 MKII Router...
- Page 16 Under ‘Wireless’ , you can change the default SSID and Encryption parameters for ‘Wireless 2.4GHz’ or ‘Wireless 5GHz’ respectively, if required. Confirm with ‘Next’ . The settings are now displayed under ‘Summary’ . Complete the setup with ‘Done’ . Professional Router 2 MKII Router...
- Page 17 ð The available networks are displayed. SWISSONIC Professional Router Select the network you want to connect to. Tick the box next to ‘Connect automatically’ and click ‘Connect’ . ð The Wi-Fi connection is established. SWISSONIC Professional Router Professional Router 2 MKII Router...
-
Page 18: Cell Phone Setup (Android®)
Installation and starting up 4.2 Cell phone setup (Android®) Setting up Wi-Fi Turn on your cell phone. Activate Wi-Fi and select ‘Swissonic Router 2 MKII 5G’ . ð The Wi-Fi connection with the cell phone is established. Professional Router 2 MKII Router... - Page 19 Enter http://192.168.1.1 in the address bar of the web browser. ð The login mask appears on the display. Enter the password and tab ‘Login’ . The default password is ‘admin’ . ð The start screen is displayed. Professional Router 2 MKII Router...
- Page 20 Installation and starting up Under ‘Operation Mode’ , select the ‘Gateway Mode’ of the router. Professional Router 2 MKII Router...
- Page 21 OSI model through routers between two networks over an IP net‐ work. Select ‘L2TP’ if your internet service provider offers this option. User name and password are available from your internet service provider. Confirm with ‘Next’ . Professional Router 2 MKII Router...
- Page 22 Under ‘Wireless’ , you can change the default SSID and Encryption parameters for ‘2.4G Network’ or ‘5G Network’ respectively, if required. Confirm with ‘Next’ . Under ‘IPTV’ , you can enable IPTV (Internet Protocol Television) to broadcast TV pro‐ grammes and films. Confirm with ‘Next’ . Professional Router 2 MKII Router...
- Page 23 Installation and starting up The settings are now displayed under ‘Summary’ . Complete the setup with ‘Done’ . Professional Router 2 MKII Router...
-
Page 24: Connections And Controls
Press and hold the button for more than 5 seconds to reset the device to factory settings. 3 LED indicator lights [PWR] Illuminates as soon as the router is connected to the mains and operational [1], [2], [3], [4] Flashes when data is being transferred via the respective LAN port Professional Router 2 MKII Router... - Page 25 Flashes when data is being transferred via the WAN port 4 [5GHz ANT] Connection for the 5 GHz omnidirectional antenna 5 [2.4GHz ANT] Connection for the 2.4 GHz omnidirectional antenna 6 [LAN1], [LAN2] lockable Neutrik RJ45 plugs for connection to local network devices Professional Router 2 MKII Router...
- Page 26 Lights up while the device is being reset to factory settings 8 [WAN] WAN port for connecting to the internet 9 [LAN3], [LAN4] LAN ports for connection to local network devices 10 Mains cable connection socket Professional Router 2 MKII Router...
-
Page 27: Technical Specifications
Dimensions (W × H × D), 483 mm × 44 mm × 180 mm w/o antennas Weight 2.1 g (incl. antennas) Ambient conditions Temperature range 0 °C…40 °C relative humidity 20 %…80 % (non-condensing) Standard IP address 192.168.1.1 Professional Router 2 MKII Router... - Page 28 Standard password admin Further information Component type Router Wi-Fi standards IEEE 802.11a, b, ac, ax, g, n Data transfer rate Wi-Fi up to 574 Mbps (2.4 GHz), up to 1201 Mbps (5 GHz) PoE Class Professional Router 2 MKII Router...
-
Page 29: Troubleshooting
Router is not connecting to the Check if there is a DSL connection. local network or the Internet. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Professional Router 2 MKII Router... -
Page 30: Cleaning
Cleaning Cleaning Clean the unit with a dry, soft, lint-free cloth. Stubborn dirt can be removed with a slightly dampened cloth. Never use cleaners containing alcohol or thinner. Professional Router 2 MKII Router... -
Page 31: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Professional Router 2 MKII Router... - Page 32 Notes Professional Router 2 MKII Router...
- Page 33 Notes Professional Router 2 MKII Router...
- Page 34 Notes Professional Router 2 MKII Router...
- Page 36 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
Need help?
Do you have a question about the Professional Router 2 MKII and is the answer not in the manual?
Questions and answers

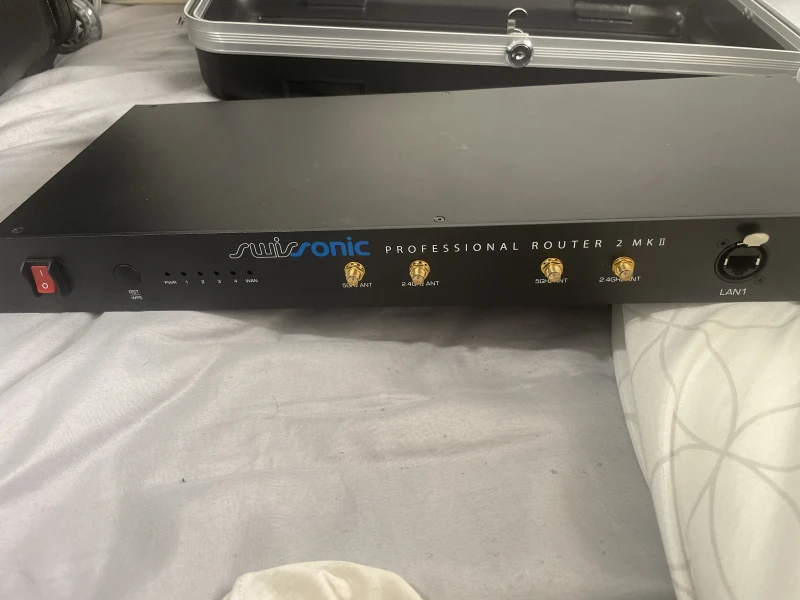

Have you for sale antennas for Swissonic Professional Router 2 MKII
