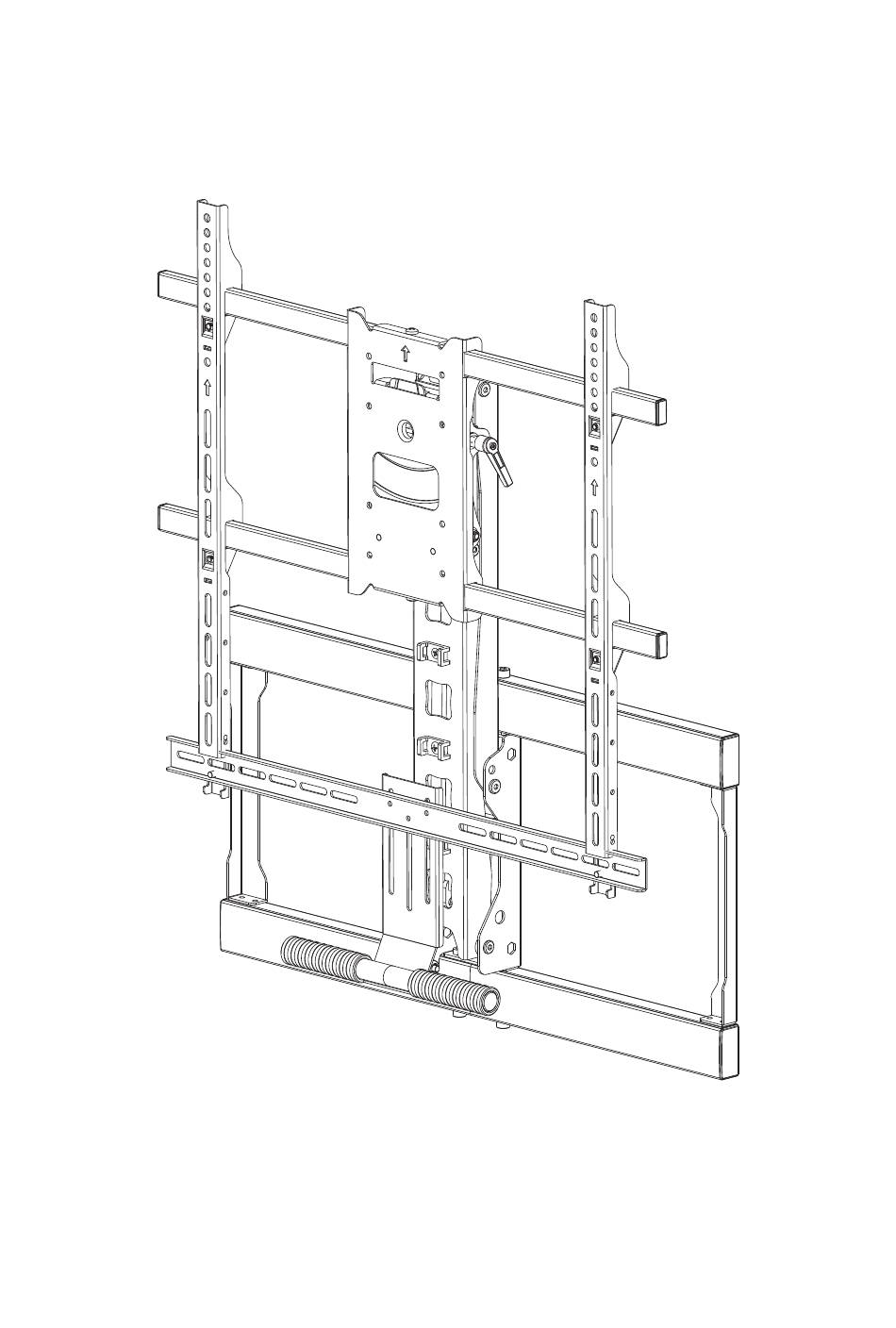

- Page 1 Above Fireplace Pull-Down Full-Motion TV Wall Mount User’s Manual...
- Page 2 The maximum temperature at the front of the fireplace mantle should never be more than 110°F (43°C). The fireplace mantle should not extend more than 24”(609mm) from the mounting surface. This mount can support displays weighing between 11~62 lbs(5~28kg). The mounting surface should be a wood stud frame wall with studs spaced no more than 24”(609mm) apart ;...
-
Page 3: Package Contents
INTRODUCTION Mount your television conveniently above your fireplace using this Above Fireplace Mount. It is capable of supporting televisions with VESA patterns from 100x100 and 600x500 and weighing between 11~62 lbs (5~28kg). The mount allows you to keep the TV safely up and out of the way when not in use, then you can pull it down to eye level for comfortable viewing. -
Page 4: Required Tools
A: M5 x 15 mm B: M5 x 30 mm C: M6 x 15 mm D: M6 x 30 mm E: M8 x 20 mm F: M8 x 35 mm G: M8 x 50 mm H: M5 / M6 I: 5 mm J: 13 mm K: M8 x 70mm L: M8... -
Page 5: Installation Considerations
INSTALLATION CONSIDERATIONS Warning Ensure that the mounting surface can safely support the combined weight of of the assembled mount and installed. The temperature at the front of the fireplace mantle must never exceed 110°F (43°C). The wall to which this mount will be attached must be a wood stud type, with studs spaced no more than 24"(609.6mm) apart. -
Page 6: Installation
4. This mount is intended for flat screen televisions (LCD, LED, Plasma) only. The mounted television should be between 42 ~ 65" and weigh between 11~62 lbs. 5. The vertical space above the mantle must be greater than the height of the wallboard .The required vertical space depends on how far the mantle extends out from the wall. - Page 7 WOOD Reference the step 5 at the page 6 User’s Manual...
- Page 8 BRICK OR CONCRETE Reference the step 5 at the page 6 10mm User’s Manual...
- Page 9 User’s Manual...
- Page 10 BRICK OR CONCRETE Socket Wrench 1/2”Socket User’s Manual...
- Page 11 WOOD Socket Wrench 1/2”Socket User’s Manual...
- Page 12 Lock the arm A - G I - J User’s Manual...
- Page 13 W/O Sound User’s Manual...
- Page 14 With Sound User’s Manual...
- Page 15 Please adjust the Handle distance to the height of the sound User’s Manual...
- Page 16 User’s Manual...
- Page 17 User’s Manual...
- Page 18 Release 90° Keep the TV’s height in this angle. Adjusting the force value in this state is the easiest. Adjustable the bracket’s constant force “ ” :Increase the constant force , “ ” :Reduce the constant force Attention: The weight of the TV set in the weighing range A: The TV sets can be hovering at any height, don not need to adjust.
- Page 19 19-2 B: The TV sets up Turn to “ ” Adjust until free hovering 19-3 C: The TV sets down User’s Manual...
- Page 20 19-4 Turn to “ ” Adjust until free hovering Height adjustment 230mm User’s Manual...
-
Page 21: Level Adjustment
Level adjustment ±5° User’s Manual... - Page 22 Tilt adjustment -5 ~ +10° User’s Manual...
- Page 23 Swivel ±30° wire cable Cable ties User’s Manual...
-
Page 24: Cable Ties
Cable ties Pull in the cover plates Swivel ±30° User’s Manual...
