Instrukcja montażu interfejsu PCB dla Bluesound Node 2/2i.
PCB interface assembly instructions for Bluesound Node 2/2i

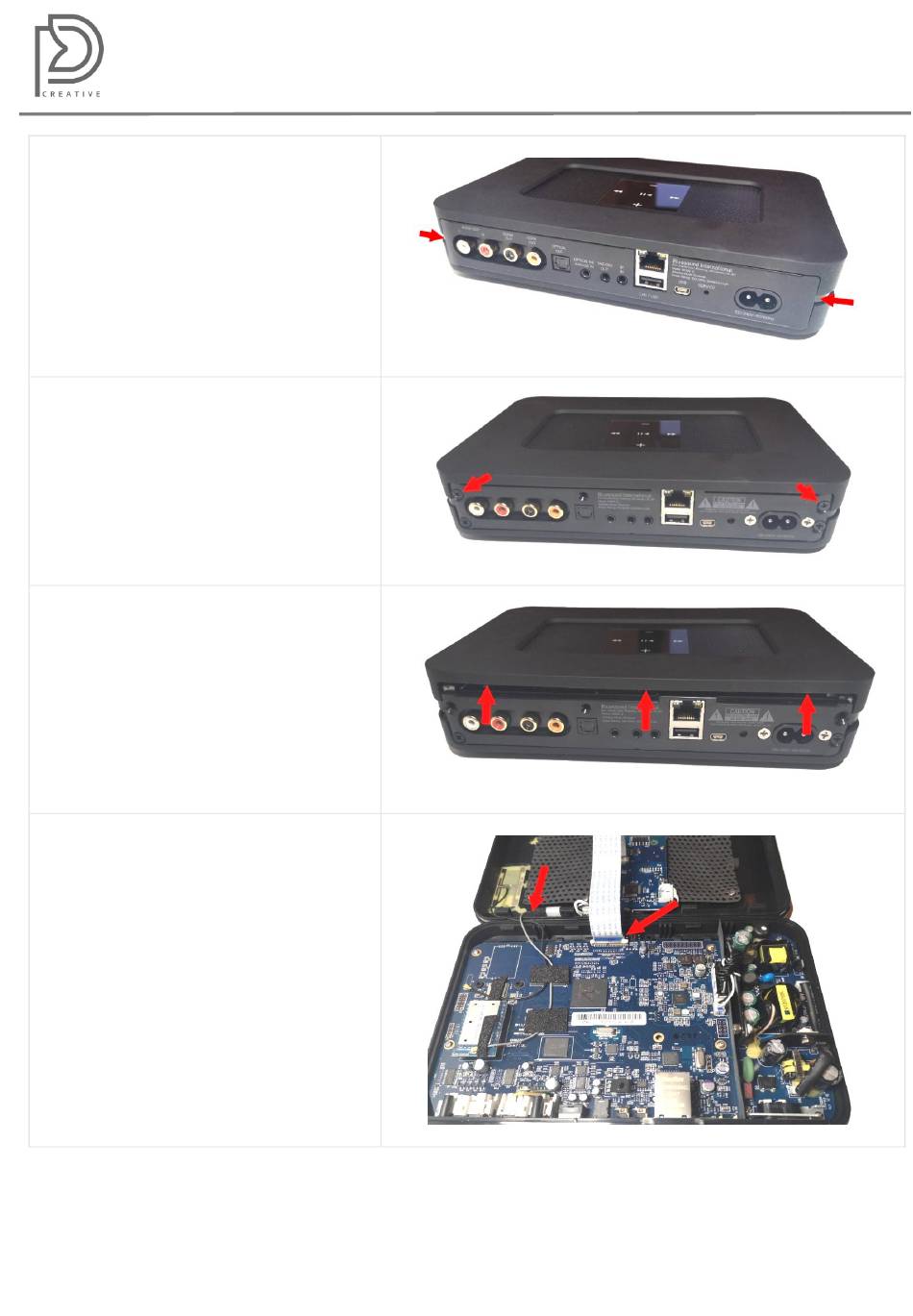

Zdemontuj tylną osłonę podważając ją we
wskazanych miejscach. Osłona jest
mocowana na magnes.
Remove the rear cover by pulling it at the
indicated places. This cover is attached with a
magnet.
Wykręć dwie górne wskazane śruby.
Remove top two indicated screws.
Podnieś górną część obudowy odchylając ją
wyłącznie od tyłu urządzenia, aż nie usłyszysz
wyraźnych i głośnych „kliknięć". Potem
podnoś ją dalej ostrożnie do góry uważając
by nie zerwać taśm i kabli.
Lift the upper part of the housing by tilting it
only from the back of the device, until you
hear loud "clicks". Then lift it upwards, being
careful not to break the tapes and cables.
Połóż ostrożnie górną część obudowy obok,
uważając na taśmę i kable. Nie rozłączaj ich,
gniazda są zabezpieczone masą klejącą.
Put the upper case carefully next to it. Do not
disconnect cables, the sockets are secured
with adhesive.
Strona / Page 1
