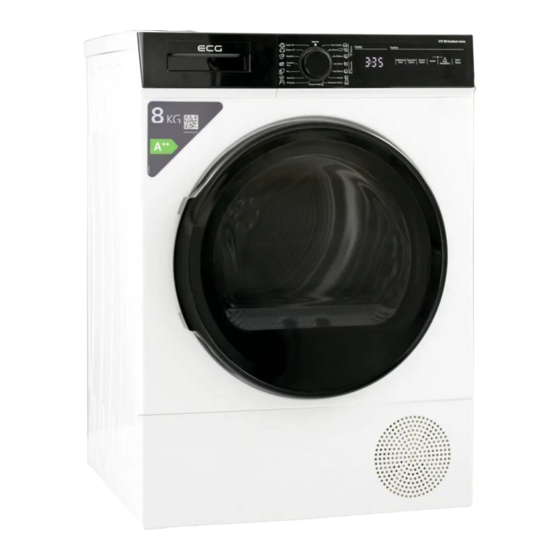

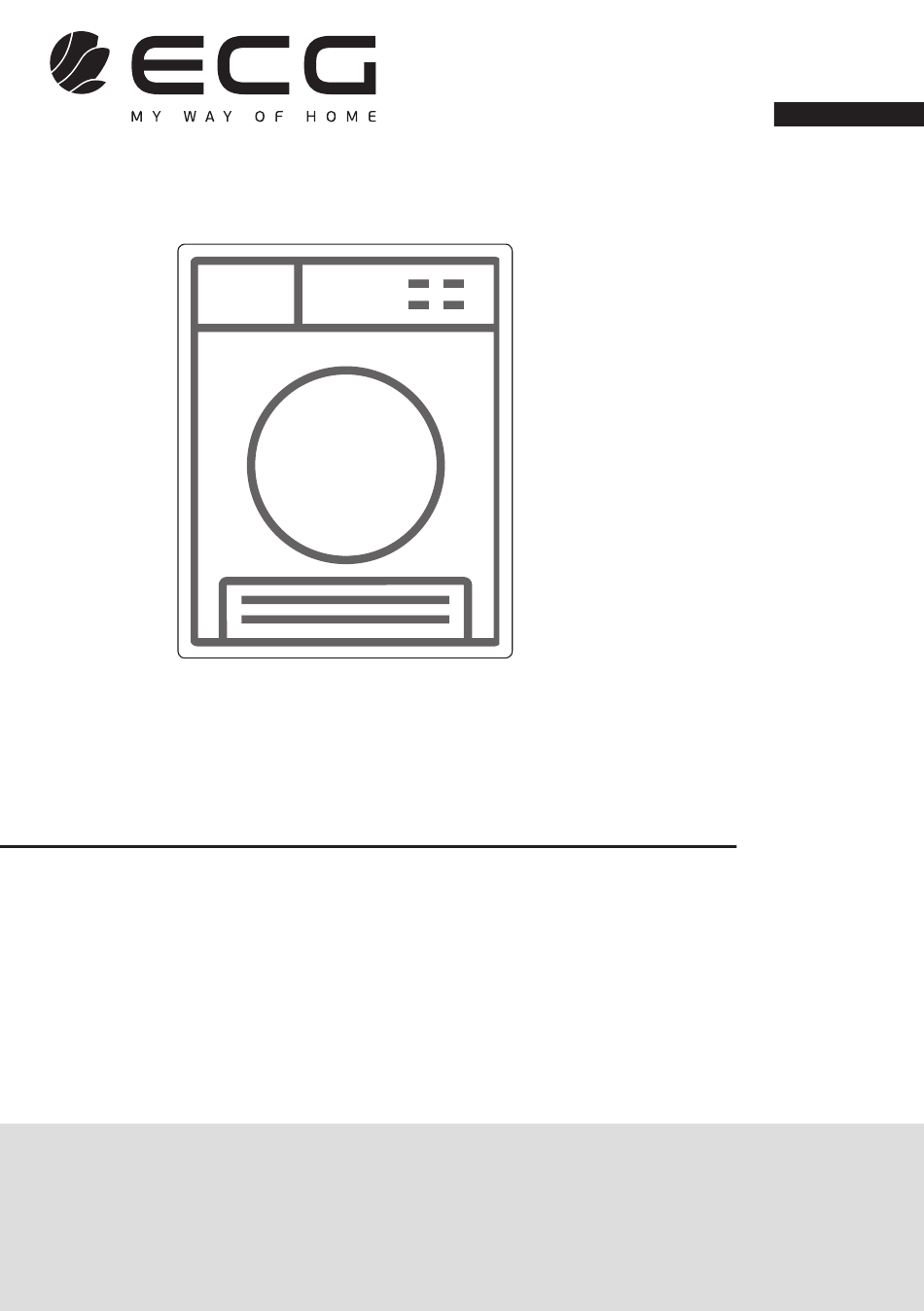

- Page 1 English ETF 80 Heat BlackLine CLOTHES DRYER INSTRUCTION MANUAL Always read the safety&use instructions carefully before using your appliance for the first time. The user´s manual must be always included.
-
Page 3: Safety Instructions
CLoTHEs dryEr SAFETY INSTRUCTIONS Read carefully and save for future use! Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. - Page 4 7. Disconnect the dryer if not in use for a long time, and before installation, maintenance, cleaning and repair, otherwise it may be damaged. 8. The appliance must not be powered by an external switching device, such as a timer, or connected to a circuit that is periodically switched on and off.
- Page 5 18. Leave at least 3 cm of space between the side and rear walls of the product. This also applies to the top, if you plan to place the appliance under the worktop. 19. Assembly / disassembly in the case of under the worktop installation must be carried out by an authorized service technician.
- Page 6 - Laundry that has been soiled with materials such as cooking oil, acetone, alcohol, gasoline, kerosene, stain remover, turpentine, wax, and wax remover must be washed in hot water with extra amount of detergent before drying in the dryer. - Dishtowels and mats that have residues of flammable cleaning agents or acetone, gas, kerosene, stain remover, turpentine, candles, wax, wax removers or chemicals.
-
Page 7: Installation
WARNING: Make sure pets can not get into the dryer. Look inside the dryer before use. WARNING: The laundry in the dryer may overheat if the program is stopped or in the event of a power failure while the dryer is running. This concentration of heat can cause spontaneous combustion, so always run the Refresh program to cool the laundry or quickly remove any laundry from the dryer and hang it to cool it. - Page 8 It is the customer's responsibility to prepare the location for the dryer, as well as the electrical installation and wastewater installation. Check that the dryer is not damaged before installation. Do not install the dryer if it is damaged. Damaged products can endanger your health. Install the dryer on a stable, level surface.
-
Page 9: Adjusting The Feet
Connect the other end of the drain hose directly to the drain or sink. WARNING: The hose must be connected so that it can not come loose. If the hose is disconnected during draining, the house may be flooded. IMPORTANT NOTE: Fasten the drain hose at the maximum height of 80 cm. IMPORTANT NOTE: Make sure that the drain hose is not bent and is not wedged between the drain and the appliance. -
Page 10: Laundry Preparation
DESCRIPTION Top plate Adjustable legs Control panel Exchanger door Door Rating plate Heat exchanger 10. Textile fibres filter Exchanger door fuse 11. Water tank Ventilation grilles LAUNDRY PREPARATION Sorting laundry for drying Always follow the instructions on the garment labels. Dry only the laundry with a label indicating that it is suitable for drying in the dryer. -
Page 11: Preparing Laundry For Drying
Do not dry thin, multi-layered, or thick fabrics together as they dry at different temperatures. For this reason, dry together the garments of the same fabric structure and type. This ensures uniform drying. If you think the laundry is still wet, you can choose a time program for further drying. Please dry large items (such as bedding) and small items separately so that you don't have damp clothes. -
Page 12: Control Panel
Laundry Dry laundry weight (g) Bed linen (double) Pillow case Dishtowels Towels Shirts 190 Cotton shirts Jeans Linen pants T-shirts USE OF THE DRYER Control panel Rotary programme selector Electronic display and additional functions Rotary programme selector Use the selector to choose the desired drying programme Display and additional functions* Button 1: Delayed start Button 2: Drying level... - Page 13 Screen symbols: Water tank alert indicator Indicator for textile fibre cleaning alert Indicator alert for cleaning the heat exchanger Program and consumption table Press the Start/Pause button to start the program. The Start/Pause indicator shows that the program has started and the drying light indicator comes on. Spinning speed Approximate Drying time...
-
Page 14: Additional Functions
Energy consumption values Approximate Spinning speed Energy amount of Programme Load (kg) in the washing consumption moisture machine values (kWh) remaining Cotton to Closet 1000 60 % 1.91 Cotton for ironing 1000 60 % 1.47 Synthetics for the closet 40 % 0.78 Energy consumption in the “Off”... - Page 15 Option Description Child lock The appliance is equipped with a child lock to prevent changing the current program, The child lock is activated by pressing buttons 4 and 5 at the same time for about 3 seconds. If the child lock is activated, all buttons will be deactivated. WARNING: The child lock is not automatically deactivated when the programme is finished.
- Page 16 Programme Description 1 kg of cotton shirts, washed at high speed in the washing machine, will be dry in Express 34' 34 minutes. Shirts 20' 2 to 3 shirts will be ready for ironing in 20 minutes. IMPORTANT NOTE: Do not open the door when a program is running. If you have to open the door, do not leave it open too long.
- Page 17 Option PROGRAM Baby clothes Jeans 60 min 40 min 20 min Refresh Fast 34' Shirts 20' ...
-
Page 18: Maintenance And Cleaning
MAINTENANCE AND CLEANING IMPORTANT NOTE: Do not use industrial chemicals to clean the dryer. Do not use a dryer that has been cleaned with industrial chemicals. Cleaning the textile fibres filter IMPORTANT NOTE: DO NOT FORGET TO LEAN TEXTILE FIBERS FILTER AFTER EACH PROGRAM RUN. To clean the textile fibres filter: Open the loading door. -
Page 19: Emptying The Water Tank
Emptying the water tank Pull out the compartment cover and carefully remove the tank. Empty the water from the tank. If fibres collect on the tank cover, clean it with water. Replace the water tank back in place. IMPORTANT NOTE: Never remove the water tank while a program is running. -
Page 20: Technical Specifications
Use a soft cloth soaked in vinegar to wipe the sensor's metal surfaces and dry them. IMPORTANT NOTE: CLEAN THE METAL SENSOR SURFACES 4 x A YEAR. IMPORTANT NOTE: Do not use metal tools to clean the metal surfaces of the sensor. WARNING: Do not use cleaning agents or similar products to clean the sensors due to the risk of fire or explosion. -
Page 21: Troubleshooting
IMPORTANT NOTE: These values were obtained under laboratory conditions according to appropriate standards. These values may vary depending on environmental conditions and use of the dryer. WARNING: For safety reasons, regulations require an area of at least 1 m² per 8 g of refrigerant for this type of equipment. - Page 22 PROBLEM CAUSE SOLUTION The dryer cannot be opened The dryer does not need to be Make sure the dryer is plugged into or the program cannot be plugged into the mains. a power outlet. started. The dryer does not The door may be open. Make sure the door is closed activate when set.
-
Page 23: Energy Efficiency
08/05 This product complies with EU directives on electromagnetic compatibility and electrical safety. The operating manual is available on internet at www.ecg-electro.eu. Changes of text and technical parameters reserved. - Page 24 PRODUCT INFORMATION SHEET In accordance with Delegated Commission Regulation (EU) No 392/2012 Supplier name or trademark Name of the model ETF 80 Heat BlackLine Rated capacity (kg) Dryer type Heat pump Energy efficiency class Annual energy consumption (kWh) Automatic/Non-automatic Automatic Power consumption of standard full load cotton program (kWh) 1.91 Power consumption of the standard partial load cotton program (kWh)
- Page 28 The manufacturer takes no responsibility for printing errors contained in the product’s user’s manual. © GVS.cz 2023...
