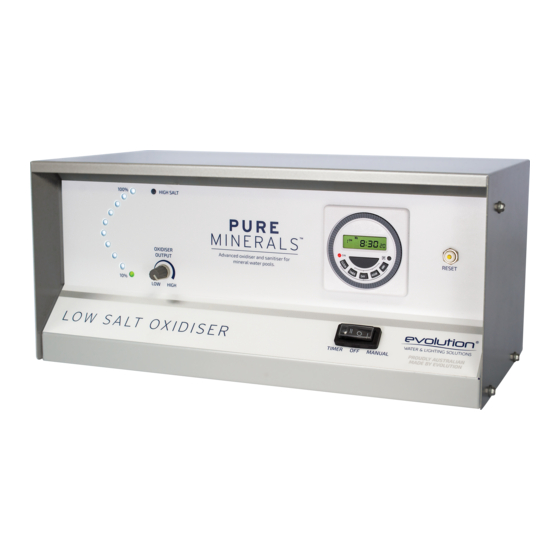

Installation and Operation Manual for
PURE MINERALS™ LOW SALT OXIDISER & SANITISER
LS70
This equipment must be installed and serviced by a qualified technician. Improper installation can create electrical
hazards which could result in property damage, serious injury or death. Improper installation will void the warranty.
This manual contains important information about the installation, operation and safe use of this product. Once
the product has been installed this manual must be given to the owner/operator of this equipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PURE MINERALS LS70 and is the answer not in the manual?

Questions and answers

Related Manuals for Evolution PURE MINERALS LS70

Summary of Contents for Evolution PURE MINERALS LS70

  • Page 1 Installation and Operation Manual for PURE MINERALS™ LOW SALT OXIDISER & SANITISER LS70 This equipment must be installed and serviced by a qualified technician. Improper installation can create electrical hazards which could result in property damage, serious injury or death. Improper installation will void the warranty. This manual contains important information about the installation, operation and safe use of this product.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1.0 FOREWORD ....1 2.0 POOL CHEMISTRY....1 3.0 CELL INSTALLATION .

  • Page 3: Foreword

    FOREWORD Congratulations on purchasing an Evolution Low Salt Oxidiser & Sanitiser for your swimming pool. This system is designed for reliability and easy operation to provide many years of trouble-free service. Please read the instructions thoroughly before operating the unit. If you have any concerns or require further assistance, please do not hesitate to contact our friendly staff or any of our Evolution distributors.

  • Page 4: Cell Installation

    POWER PACK CONTROLLER POWER OUTLET ® CELL HOUSING PROUDLY AUSTRALIAN MADE BY EVOLUTION BACKWASH LINE TO POOL RETURN FROM POOL/ SKIMMER Fig. 1...

  • Page 5: Power Pack Installation

    POWER PACK INSTALLATION The Low Salt Oxidiser power pack is wall mounted using the supplied mounting bracket or directly hanging on the wall with screws (300mm centres). The power pack must be mounted at least 1 metre above the ground and 3 metres or more from the pool edge. It is strongly recommended that the power pack be installed where it is protected from the elements.

  • Page 6: Operation

    OPERATION The control interface on the power pack consists of the following: Fig. 3 1. Oxidiser Output LEDs If the correct salinity level is maintained in the water, all ten lights will illuminate at full oxidiser output (100%). Each light represents a 10% incremental output. If only LED 1 (first indicator light) flashes on, the pool water salinity is below 1,500ppm, and the unit has gone into the ultra-low salinity cutout mode.
  • Page 7 To reset, press the yellow centre button back in to resume normal function. Note: Turn off the Oxidiser at the power point before attempting to reset the circuit breaker. Should the circuit breaker continue to trip, then a local Evolution distributor should be contacted. 7. Switch This switch allows you to choose the timer operation mode for the Oxidiser and pool pump.

  • Page 8: Dosage

    DOSAGE The Low Salt Oxidiser is designed to work with regular pool salt or mineral blend products to sanitise the pool effectively, but it works best as a complete system with high-quality Pure Minerals Ultra Blend™. Using Pure Minerals Ultra Blend™ will produce a magnesium-rich and precisely sanitised pool with minimal maintenance.
  • Page 9 Table 1: Pure Minerals Ultra Blend™ Dosage Table 2,000ppm Target Pure Minerals Ultra Blend™ Dosage - Add in kg Current 10,000L 20,000L 30,000L 40,000L 50,000L Salinity (ppm) 1,000 1,500 2,000 Current 60,000L 70,000L 80,000L 90,000L 100,000L Salinity (ppm) 1,000 1,500 2,000...

  • Page 10: Maintenance

    Only qualified electrical technicians should service the power pack. For the nearest Evolution recommended service technician, please contact Evolution Water & Lighting Solutions on 07 5565 0000 or email us at service@evolutionwls.com.au.

  • Page 11: Troubleshooting

    TROUBLESHOOTING Fault/Problem Possible Cause Remedy Pump turned off. Ensure the pump is on. Closed valve. Open valve. Air in the system. Check all o-rings and grease. NO FLOW All oxidiser output Dirty filter. Clean or backwash filter. LEDs flashing Low water level. Fill up the pool.

  • Page 12: Warranty

    10.0 10.1 The Evolution Low Salt Oxidiser is covered by a 3-year full warranty from the date of purchase. The power pack and electrolytic cell are covered against defects in materials and assembly from the date of purchase in a domestic application. All electrical or mechanical failure due to faulty components will be repaired or replaced at no cost to the owner, including labour.

  • Page 14: Notes

    NOTES 11.0...
  • Page 16 1/33 Hinkler Drive, Highland Park QLD 4211, Australia +61 7 5565 0000 Unless otherwise indicated, copyright in the content of this document is the property of Evolution Water and Lighting Solutions under Australian copyright law. Unless otherwise indicated, content may not be reproduced or transmitted without our prior written permission.
