Summary of Contents for bp pulse pro charger smart
- Page 1 User Guide...
-
Page 2: Table Of Contents
Connector recommendations bp pulse pro charger smart status Resetting your bp pulse pro charger Starting a charge on bp pulse pro charger smart smart via the distribution board Ending a charge on bp pro pulse charger smart Troubleshooting and further assistance... -
Page 3: Safety Requirements

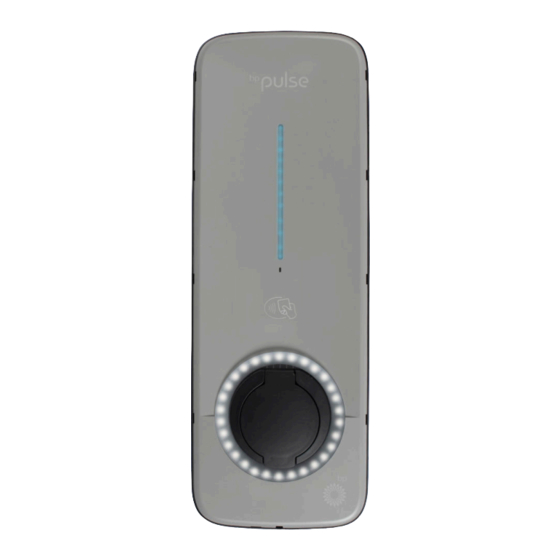

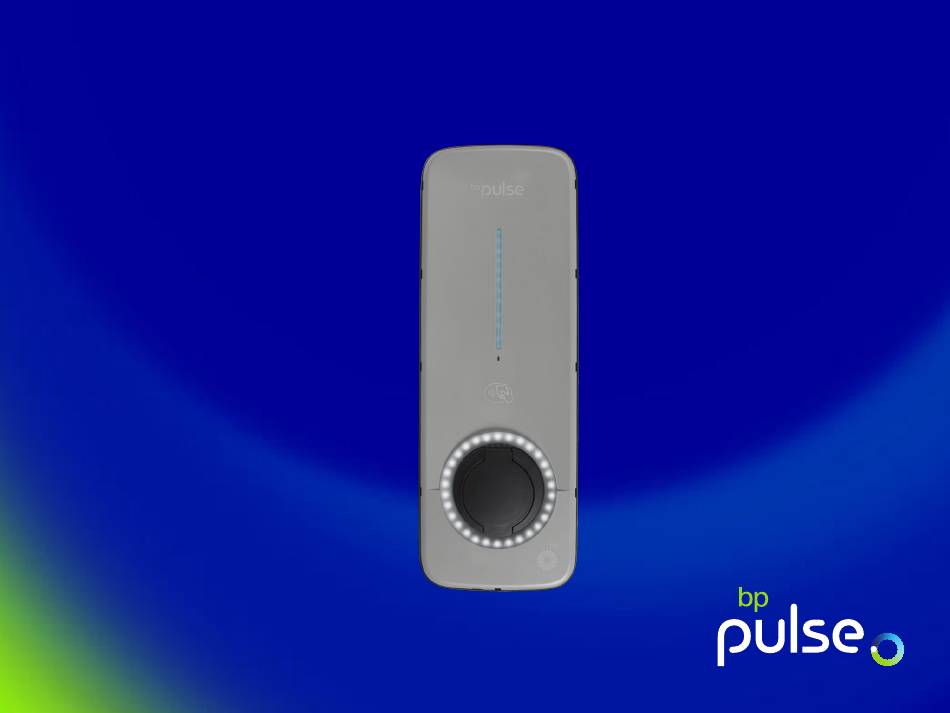

Safety requirements Limitations This charger is designed for use in the UK, specifically Before operating the bp pulse pro charger smart, the user must read and fully understand the safety instructions included in the with electrical and environmental conditions expected in manual. - Page 4 Original Instructions bp pulse pro charger smart LED Light Shows the status of your bp pulse pro charger smart bp pulse pro charger smart Customer care label Unique identification number for your charger Socket Lighting Illuminates the socket/ holster for easy access...
- Page 5 Original Instructions bp pulse pro charger smart Status indication Randomised Charging Idle delay start Green Blue Fading blue Your pro smart is The green light will The blue LED’s will ready. pulse to indicate count down to show charging. randomised delay start.
-
Page 6: Starting A Charge On Bp Pulse Pro Charger Smart
Original Instructions bp pulse pro charger smart Lift the flap to access the socket. Insert the charging cable plug into the electric vehicle before connecting to the charging socket. Always make sure the plug is fully inserted into the socket. -
Page 7: Ending A Charge On Bp Pro Pulse Charger Smart
Original Instructions bp pulse pro charger smart Tap your RFID card once on to the reader. Ending a charge on bp pulse pro charger Wait for the LED indicator to turn constant blue. smart Remove the charging cable plug from... -
Page 8: Randomised Delay Start
Original Instructions bp pulse pro charger smart Randomised delay start The randomised delay start is a requirement for all private chargepoints in the UK, which helps to ensure the grid can support the extra demand for electricity as EV adoption accelerates. -
Page 9: Scheduling And Off-Peak Charging
Original Instructions bp pulse pro charger smart Scheduling and off-peak charging Our chargers are pre-configured with a default off- peak charging schedule. This schedule ensures that EVs are charged only during off-peak hours when there’s typically less demand on the grid. The off-peak hours are 10pm - 8am and 11am - 4pm Monday to Friday and all day Saturday and Sunday. -
Page 10: Load Management
Original Instructions bp pulse pro charger smart Load management Load management is managing the charging current to allow the available power to be shared across all connected sockets supplied by the same electrical circuit. Where a power limit for a group of chargers has... -
Page 11: Specifications
Original Instructions bp pulse pro charger smart Specifications Single Phase Three Phase Product code BCW7S2 BCG7S2 BCW22S2 BCG22S2 220-240 VAC 50/60Hz 400 VAC 50/60Hz Input 1P + N + E 32A @20°C 3P + N + E 32A @20°C Rated current... - Page 12 Original Instructions bp pulse pro charger smart General Specifications Socketed output connector Type Output charging connector Type 2 Operating tempreture range -30°C to +50°C, Operating humidity range 5% to 95% Safety and operational ratings non-condensing. Compliance to Standards IEC 61851.
-
Page 13: Safety Instructions
Unauthorised modifications or conversions are not allowed. • The bp pulse pro charger smart can only be used • under the operating parameters specified at an ambient temperature between -30ºC to 50ºC. - Page 14 Original Instructions bp pulse pro charger smart Safety instructions Unauthorised modification of the bp pulse pro charger smart Ensure cables are stowed properly to prevent tripping hazards. • • equipment would render the manufacturer warranty void. Do not leave the cable plugged into the socket when not in use.
-
Page 15: Connector Recommendations
Original Instructions bp pulse pro charger smart Connector recommendations Do not use cables if there is any sign of damage or fraying. • Do not use the charging cable with an extension cable or an • adapter. Unauthorised modifications or conversions are not allowed. -
Page 16: Resetting Your Bp Pulse Pro Charger Smart Via The Distribution Board
Maintenance Once the unit powers up, the status indicator will cycle • Ensure only a damp cloth is used for cleaning the bp pulse though a sequence of colours, and then return to IDLE pro charger smart. -
Page 17: Function Button
Original Instructions bp pulse pro charger smart Function button The function button is located at the bottom of the unit on the rear surface. With this button you can: Start charge (delay override): press and hold down for 3 •... -
Page 18: Mounting Options
When considering post mounted installations we recommend our deciding the best mounting solution for your workplace certified post, designed specifically for bp pulse pro charger smart. or fleet. If you require a different mounting solution in the future please get in touch with our customer care team to arrange a visit from one of our certified installers. -
Page 19: Warranty
This warranty does not affect the statutory rights of or email us at heretohelp@bp.com the consumer. The warranty provided by bp pulse is Further instructions can be found on our website subject to the terms and conditions found below. www.bppulse.co.uk... -
Page 20: Certification
Certification This unit is certified to meet the requirements of The United This product meets EU and UK regulatory safety requirements. Kingdom and European Union with the following product marks: A Declaration of Conformity can be made available by request. Please contact our customer care team via the contact page at www.bppulse.co.uk or email us at heretohelp@bp.com.
