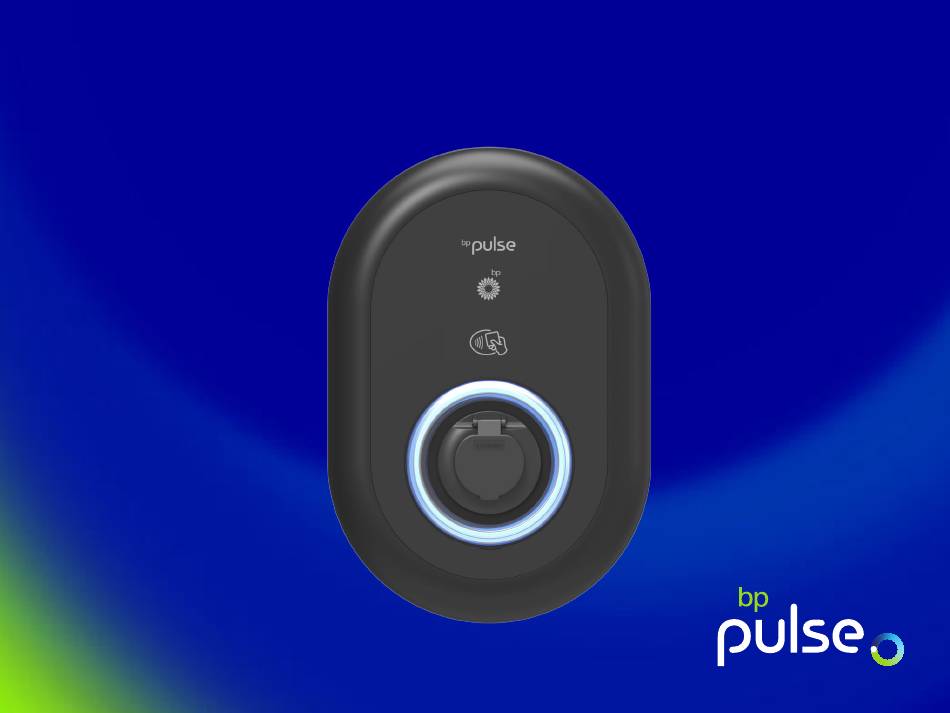

- Page 1 User Guide...
-
Page 2: Table Of Contents
Safety instructions Limitations bp pulse pro charger lite status Connector recommendations Starting a charge on bp pulse pro charger lite Resetting your bp pulse pro charger lite via the distribution board Ending a charge on bp pro pulse charger lite... -
Page 3: Safety Requirements
Safety requirements Limitations This charger is designed for use in the UK, specifically Before operating the bp pulse pro charger lite, the user must read and fully understand the safety instructions included in the with electrical and environmental conditions expected in manual. - Page 4 Original Instructions bp pulse pro charger lite bp pulse pro charger lite LED Light Shows the status of your bp pulse pro charger lite Customer care label Unique identification number for your charger...
- Page 5 Original Instructions bp pulse pro charger lite Status of the LED Status of the Charging Station No LED Indication Charger is ready to charge Blinks blue for 4 seconds Electric Vehicle is connected. Charger is waiting for RFID card authorisation...
-
Page 6: Starting A Charge On Bp Pulse Pro Charger Lite
Original Instructions bp pulse pro charger lite Lift the flap to access the socket. Insert the charging cable plug into the electric vehicle before connecting to the charging socket. Always make sure the plug is fully inserted into the socket. -
Page 7: Ending A Charge On Bp Pro Pulse Charger Lite
Original Instructions bp pulse pro charger lite Tap your RFID card once on to the reader. Ending a charge on Wait for the LED indicator to turn bp pulse pro charger lite constant blue. Remove the charging cable plug from... -
Page 8: Randomised Delay Start
Original Instructions bp pulse pro charger lite Randomised delay start The randomised delay start is a requirement for all private chargepoints in the UK, which helps to ensure the grid can support the extra demand for electricity as EV adoption accelerates. -
Page 9: Scheduling And Off-Peak Charging
Original Instructions bp pulse pro charger lite Scheduling and off-peak charging Our chargers are pre-configured with a default off- peak charging schedule. This schedule ensures that EVs are charged only during off-peak hours when there’s typically less demand on the grid. The off-peak hours are 10pm - 8am and 11am - 4pm Monday to Friday and all day Saturday and Sunday. -
Page 10: Load Management
Original Instructions bp pulse pro charger lite Load Management Load Management is managing the charging current to allow the available power to be shared across all connected sockets supplied by the same electrical circuit. Where a power limit for a group of chargers has... -
Page 11: Specifications
Original Instructions bp pulse pro charger lite Specifications 1 Phase 3 Phase Product code BVW7S2 BVG7S2 BVW22S2 BVG22S2 230 VAC 50/60 HZ 400 VAC 50/60Hz Input Rated Current 1P + N + E 32A 3P + N + E 32A... - Page 12 Original Instructions bp pulse pro charger lite General Specifications Socketed output connector Type Output charging connector Type 2 Operating tempreture range -35°C to +55°C, Operating humidity range Safety and operational ratings 5% to 95% non-condensing. Compliance to Standards IEC 61851.
-
Page 13: Safety Instructions
Unauthorised modifications or conversions are not allowed. • The bp pulse pro charger lite can only be used • under the operating parameters specified at an ambient temperature between -35ºC to 55ºC. - Page 14 Original Instructions bp pulse pro charger lite Safety instructions Unauthorised modification of the bp pulse pro charger lite Ensure cables are stowed properly to prevent tripping hazards. • • equipment would render the manufacturer warranty void. Do not leave the cable plugged into the socket when not in use.
-
Page 15: Connector Recommendations
Original Instructions bp pulse pro charger lite Connector recommendations Do not use cables if there is any sign of damage or fraying. • Do not use the charging cable with an • extension cable or an adapter. Unauthorised modifications or conversions are not allowed. -
Page 16: Resetting Your Bp Pulse Pro Charger Lite Via The Distribution Board
0330 016 5126. For further information on the bp pulse pro charger lite and Set the CPD to the ‘On’ position and allow two minutes troubleshooting guidance please refer to our latest user manual for the unit to complete its start-up sequence. -
Page 17: Maintenance
Charging not possible due to over temperature or the charger is disabled Maintenance • Ensure only a damp cloth is used for cleaning the bp pulse pro charger lite. • Ensure the charger is kept clean. • Do not keep the cable plugged into the socket. -
Page 18: Mounting Options
When considering post mounted installations we recommend our deciding the best mounting solution for your workplace certified post, designed specifically for bp pulse pro charger lite. or fleet. If you require a different mounting solution in the future please get in touch with our customer care team to arrange a visit from one of our certified installers. -
Page 19: Warranty
This warranty does not affect the statutory rights of or email us at heretohelp@bp.com the consumer. The warranty provided by bp pulse is Further instructions can be found on our website subject to the terms and conditions found below. www.bppulse.co.uk... -
Page 20: Certification
Certification This unit is certified to meet the requirements of The United This product meets EU and UK regulatory safety requirements. Kingdom and European Union with the following product marks: A Declaration of conformity can be made available by request. Please contact our customer care team via the contact page at www.bppulse.co.uk or email us at heretohelp@bp.com.
