RED CONNECT MODULE
OPERATION GUIDE
RED CONNECT MODULE
|
V1.0, REV. A
RED.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CONNECT MODULE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RED CONNECT MODULE

Summary of Contents for RED CONNECT MODULE

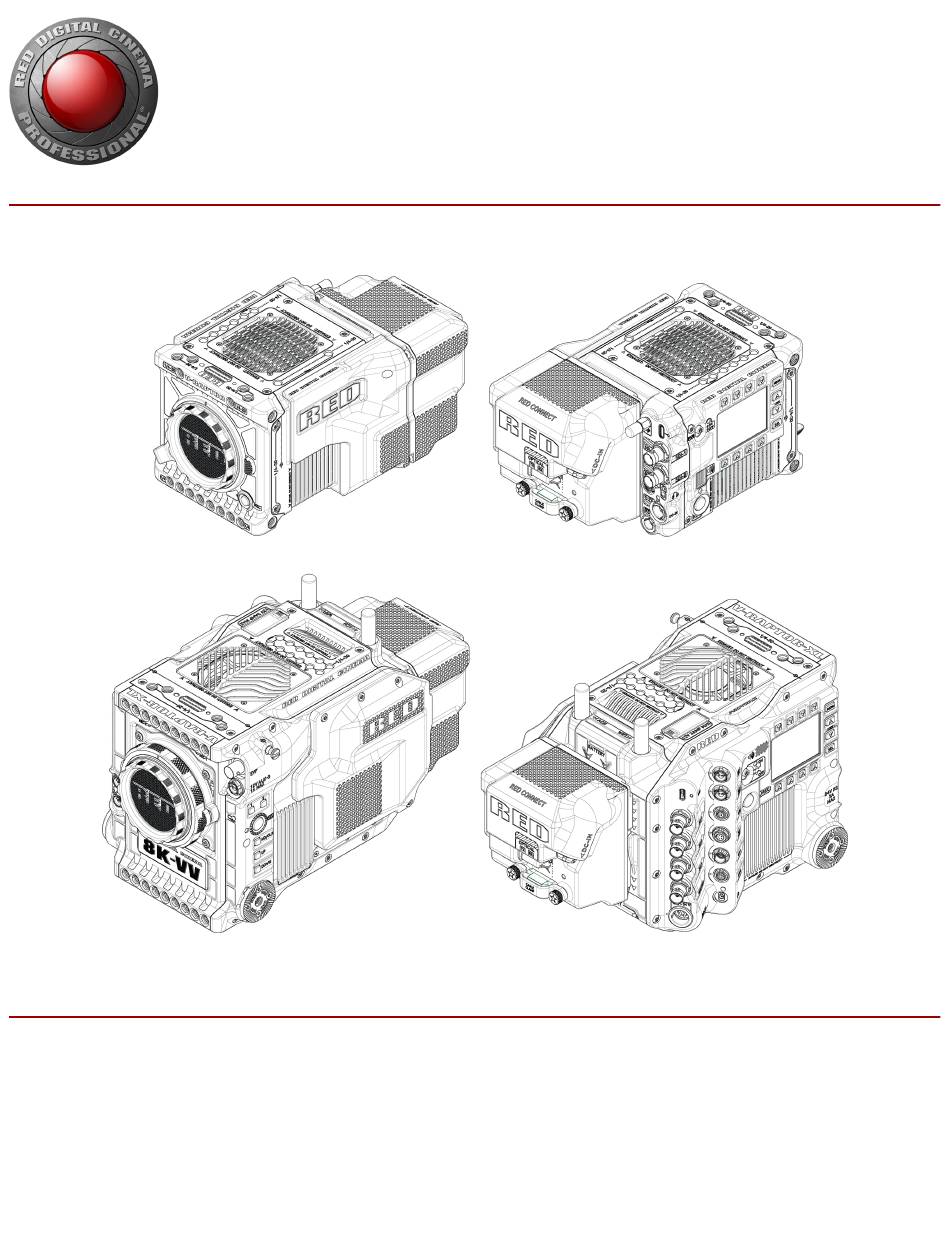

  • Page 1 RED CONNECT MODULE OPERATION GUIDE RED CONNECT MODULE V1.0, REV. A RED.COM...

  • Page 2: Table Of Contents

    RED CONNECT MODULE OPERATION GUIDE TABLE OF CONTENTS DISCLAIMER SAFETY INSTRUCTIONS 1. INTRODUCTION RED CONNECT MODULE 2. INSTALLING RED CONNECT MODULE 3. TROUBLESHOOTING GENERAL TROUBLESHOOTING TIPS CONTACT SUPPORT A. MECHANICAL DRAWINGS FRONT VIEW BACK VIEW RIGHT SIDE VIEW LEFT SIDE VIEW...

  • Page 3: Disclaimer

    Other user manual statements may apply. strictly “as is” and RED will not be held responsible for issues arising Le présent appareil est conforme aux CNR d’Industrie Canada from typographical errors or user’s interpretation of the language used applicables aux appareils radio exempts de licence.

  • Page 4: Safety Instructions

    RED CONNECT MODULE OPERATION GUIDE AUSTRALIA AND NEW ZEALAND STATEMENTS RESPONSIBLE PARTY RED declares that the radio equipment described in this document RED Digital Cinema complies with the following international standards: 94 Icon IEC 62368-1 – Product Safety Foothill Ranch, CA 92610 ETSI EN 300 328 –...
  • Page 5 Remove any batteries from the camera before storage. Recommended CAUTION: Refer all service and repair to qualified RED storage and usage temperatures for your camera, lenses and other service personnel. To reduce the risk of electric shock, and accessories are: ...

  • Page 6: Introduction

    Figure: V-RAPTOR and V-RAPTOR XL with RED Connect Module RED CONNECT MODULE The RED Connect Module connects to your V-RAPTOR or V-RAPTOR XL camera to unlock 8K live cinematic streaming using the groundbreaking RED Connect solution. RED Connect enables you to stream RAW R3D files directly from the V-RAPTOR and V-RAPTOR XL camera systems over IP to a camera control unit (CCU) in real-time.

  • Page 7: Installing Red Connect Module

    RED CONNECT MODULE OPERATION GUIDE 2. INSTALLING RED CONNECT MODULE The RED Connect Module is available for V-RAPTOR and V-RAPTOR XL V-Lock models. COPYRIGHT © 2023 RED.COM, LLC 955-0216, V1.0, REV. A | 2...
  • Page 8 RED CONNECT MODULE OPERATION GUIDE Perform the following to install the RED Connect Module: 1. Open the CFexpress media door. 2. Remove the three screws (T8 and T10 ) from the CFexpress door frame and remove the frame. COPYRIGHT © 2023 RED.COM, LLC...
  • Page 9 RED CONNECT MODULE OPERATION GUIDE 3. Remove four screws (T10 ) from the left side of the camera to mount the RED Connect Module cable cover. COPYRIGHT © 2023 RED.COM, LLC 955-0216, V1.0, REV. A | 4...
  • Page 10 RED CONNECT MODULE OPERATION GUIDE 4. Attach the RED Connect Module to the V-Lock mount on the back of the camera. COPYRIGHT © 2023 RED.COM, LLC 955-0216, V1.0, REV. A | 5...
  • Page 11 RED CONNECT MODULE OPERATION GUIDE 5. Attach the CFexpress adapter to the module cable. COPYRIGHT © 2023 RED.COM, LLC 955-0216, V1.0, REV. A | 6...
  • Page 12 RED CONNECT MODULE OPERATION GUIDE 6. Insert the CFexpress adapter in the CFexpress port of the camera. COPYRIGHT © 2023 RED.COM, LLC 955-0216, V1.0, REV. A | 7...
  • Page 13 RED CONNECT MODULE OPERATION GUIDE 7. Attach the CFexpress retention bracket with three screws (T6). COPYRIGHT © 2023 RED.COM, LLC 955-0216, V1.0, REV. A | 8...
  • Page 14 RED CONNECT MODULE OPERATION GUIDE 8. Attch the RED Connect Module side CFexpress cable cover using four screws (T10). The RED Connect Module is ready for you to use. COPYRIGHT © 2023 RED.COM, LLC 955-0216, V1.0, REV. A | 9...

  • Page 15: Troubleshooting General Troubleshooting Tips

    4. Ensure that all of the cables and connections are fully seated and locked in place (if applicable). 5. Remove all attached accessories, RED and third-party. Ensure all contacts are clean, undamaged, and free of debris before remounting. Try booting the camera using the AC power adaptor without any accessories attached to determine whether the issue persists before reattaching any accessories.

  • Page 16: Mechanical Drawings

    RED CONNECT MODULE OPERATION GUIDE A. MECHANICAL DRAWINGS NOTE: Dimensions are shown in mm. FRONT VIEW Figure: Module Front View BACK VIEW Figure: Module Back View COPYRIGHT © 2023 RED.COM, LLC 955-0216, V1.0, REV. A | 11...

  • Page 17: Right Side View

    RED CONNECT MODULE OPERATION GUIDE RIGHT SIDE VIEW Figure: Module Side View (Right) LEFT SIDE VIEW Figure: Module Side View (Left) COPYRIGHT © 2023 RED.COM, LLC 955-0216, V1.0, REV. A | 12...

  • Page 18: Top View

    RED CONNECT MODULE OPERATION GUIDE TOP VIEW Figure: Module Top View COPYRIGHT © 2023 RED.COM, LLC 955-0216, V1.0, REV. A | 13...

  • Page 19: Bottom View

    RED CONNECT MODULE OPERATION GUIDE BOTTOM VIEW Figure: Module Bottom View COPYRIGHT © 2023 RED.COM, LLC 955-0216, V1.0, REV. A | 14...

  • Page 20: 6-Pin Dc-In

    NOTE: Mating connector is FGJ.1B.306.CWLD72Z. COMPATIBLE CABLES 790-0638: DSMC AC Power Adaptor Pack 790-0164: XLR Power Cable (10') 790-0291: DSMC Battery Belt Clip XXX-XXXX: XL 4-Pin to 6-Pin RED Connect Module DC adapter COPYRIGHT © 2023 RED.COM, LLC 955-0216, V1.0, REV. A | 15...

  • Page 21: Fiber Optic Port

    RED CONNECT MODULE OPERATION GUIDE FIBER OPTIC PORT The single mode duplex 1310 nm LC UPC fiber optic ports provide 10 Gigabit bandwidth for 8K 120 fps broadcast performance. Figure: Front face of the fiber optic connector (looking at the back of the module).

  • Page 22: Technical Specifications

    Standard single-mode (1310 nm) LC UPC fiber ports (transmit and receive) Construction Aluminum Alloy and rubber Weight 1.02 lb V-RAPTOR RED Connect Module 1.08 lb V-RAPTOR XL RED Connect Module Dimensions Height: 3.87 in. (98.25 mm) Width: 3.88 in. (98.50 mm) (excluding cable and cable cover) Depth: 2.60 in.
