Page 2: Included Parts

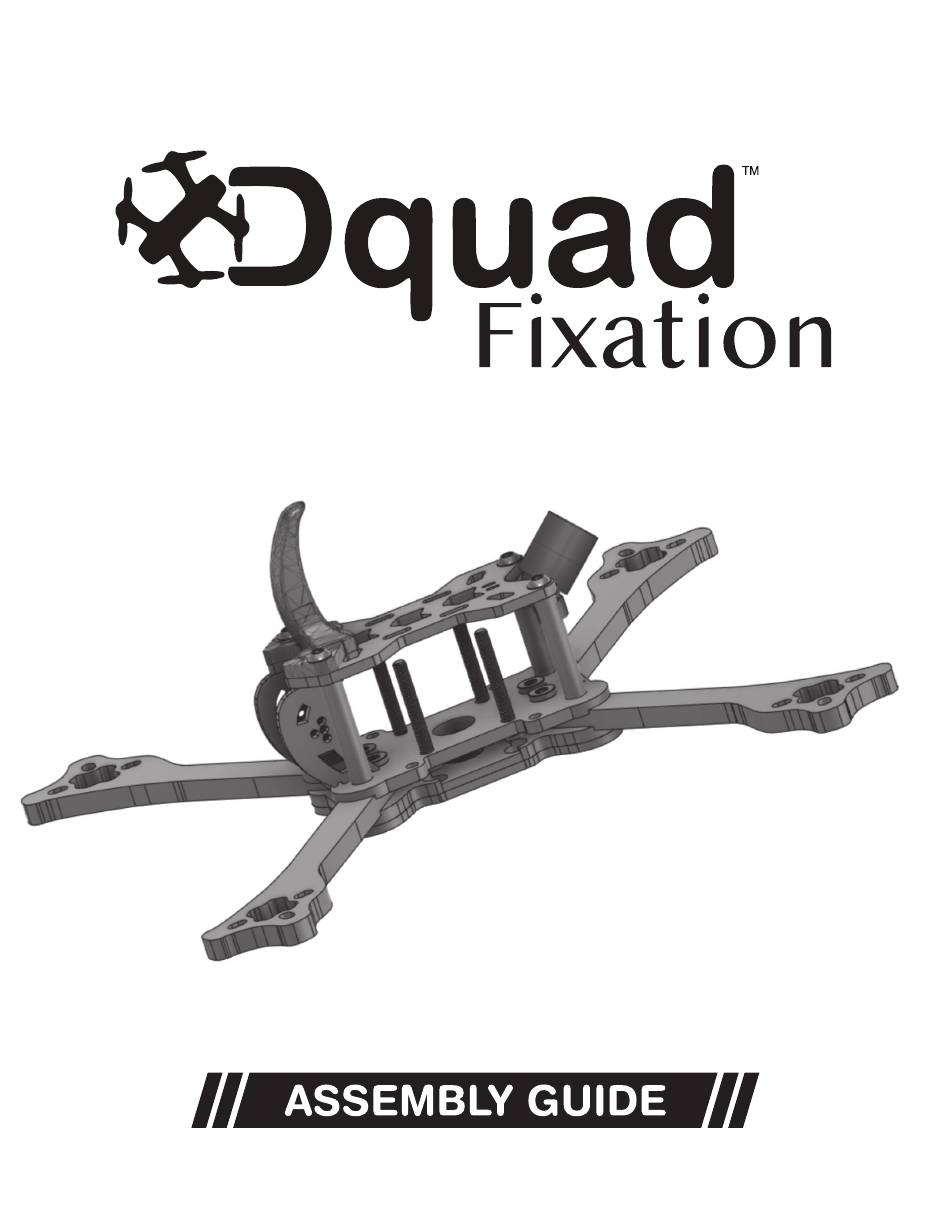

FIXATION 5 INCH ASSEMBLY INSTRUCTIONS INCLUDED PARTS: (4) M3x10mm countersunk titanium bolts (1) Fixation sticker (4) M3x14mm countersunk titanium bolts (1) Bottom plate - 3mm (4) M3x6mm button head titainium bolts (1) Main plate - 20x20 and 30x30 - four press... - Page 3 STEP_02 MOUNT THE ARMS TO THE MAIN AND BOTTOM PLATE Sandwich the arms between the main and bottom plate. Add a drop of threadlocker and insert the four M3x10mm countersunk bolts through the inner holes on the bottom plate, through the arms and screw them into the four press nuts that are mounted into the main plate.
- Page 4 STEP_03 PERFECTION MINI 3 INCH ASSEMBLY INSTRUCTIONS INSTALL STANDOFFS AND CAMERA PLATES Use four M3x14mm countersunk bolts. Apply a drop of threadlocker to each and bolt the four aluminum standoffs to the main plate. Install the camera plates in the camera slots located on the main plate. STEP_04 INSTALL TOP PLATE Use four M3x6mm button head bolts.
-
Page 5: Install Accessories
STEP_05 PERFECTION MINI 3 INCH ASSEMBLY INSTRUCTIONS INSTALL ACCESSORIES Install four M3x25mm FC bolts, Lite Grip lipo pad and any desired TPU accessories which are available for purchase or free downloadable 3d files on dquad.net. You’re finished - enjoy!
