Motorline MX92N User's And Installer's Manual

MX92N MX92N

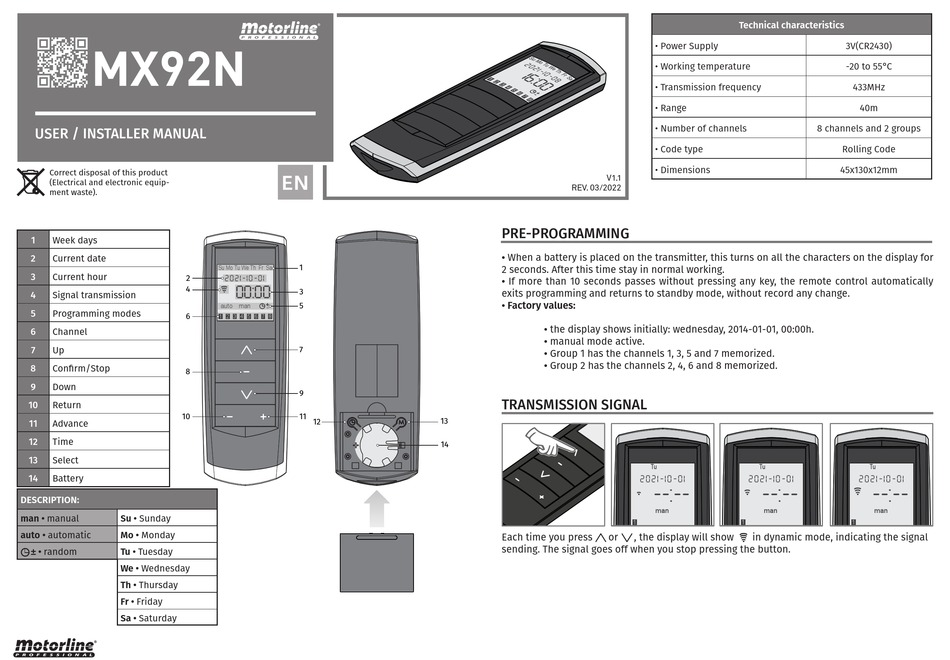

USER / INSTALLER MANUAL
Correct disposal of this product
(Electrical and electronic equip-
ment waste).
1
Week days
2
Current date
3 Current hour
2
4
4
Signal transmission
5
Programming modes
6
6 Channel
7
Up
8
Confirm/Stop
8
9 Down
10
Return
10
11
Advance
12 Time
13
Select
14
Battery
DESCRIPTION:
man • manual Su • Sunday
auto • automatic Mo • Monday
± • random Tu • Tuesday
We • Wednesday
Th • Thursday
Fr • Friday
Sa • Saturday
EN
1
Su Mo Tu We Th Fr Sa
2021 -1 0-0 1
00:00
3
5
auto man
1 2 3 4 5 6 7 8
7
9
11
12
V1.1
REV. 03/2022
PRE-PROGRAMMING
• When a battery is placed on the transmitter, this turns on all the characters on the display for
2 seconds. After this time stay in normal working.
• If more than 10 seconds passes without pressing any key, the remote control automatically
exits programming and returns to standby mode, without record any change.
• Factory values:
• the display shows initially: wednesday, 2014-01-01, 00:00h.
• manual mode active.
• Group 1 has the channels 1, 3, 5 and 7 memorized.
• Group 2 has the channels 2, 4, 6 and 8 memorized.
TRANSMISSION SIGNAL
13
14
Each time you press or
sending. The signal goes off when you stop pressing the button.
Technical characteristics
• Power Supply
• Working temperature
• Transmission frequency
• Range
• Number of channels
• Code type
• Dimensions
Tu Tu
2021-10-0 1 2021-10 -01
--:-- --:--
man man
1 1
, the display will show in dynamic mode, indicating the signal
3V(CR2430)
-20 to 55°C
433MHz
40m
8 channels and 2 groups
Rolling Code
45x130x12mm
Tu
2021-10-01
--:--
man
1
