Spotnails DSP779 Operation And Maintenance Manual

Air drive plier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

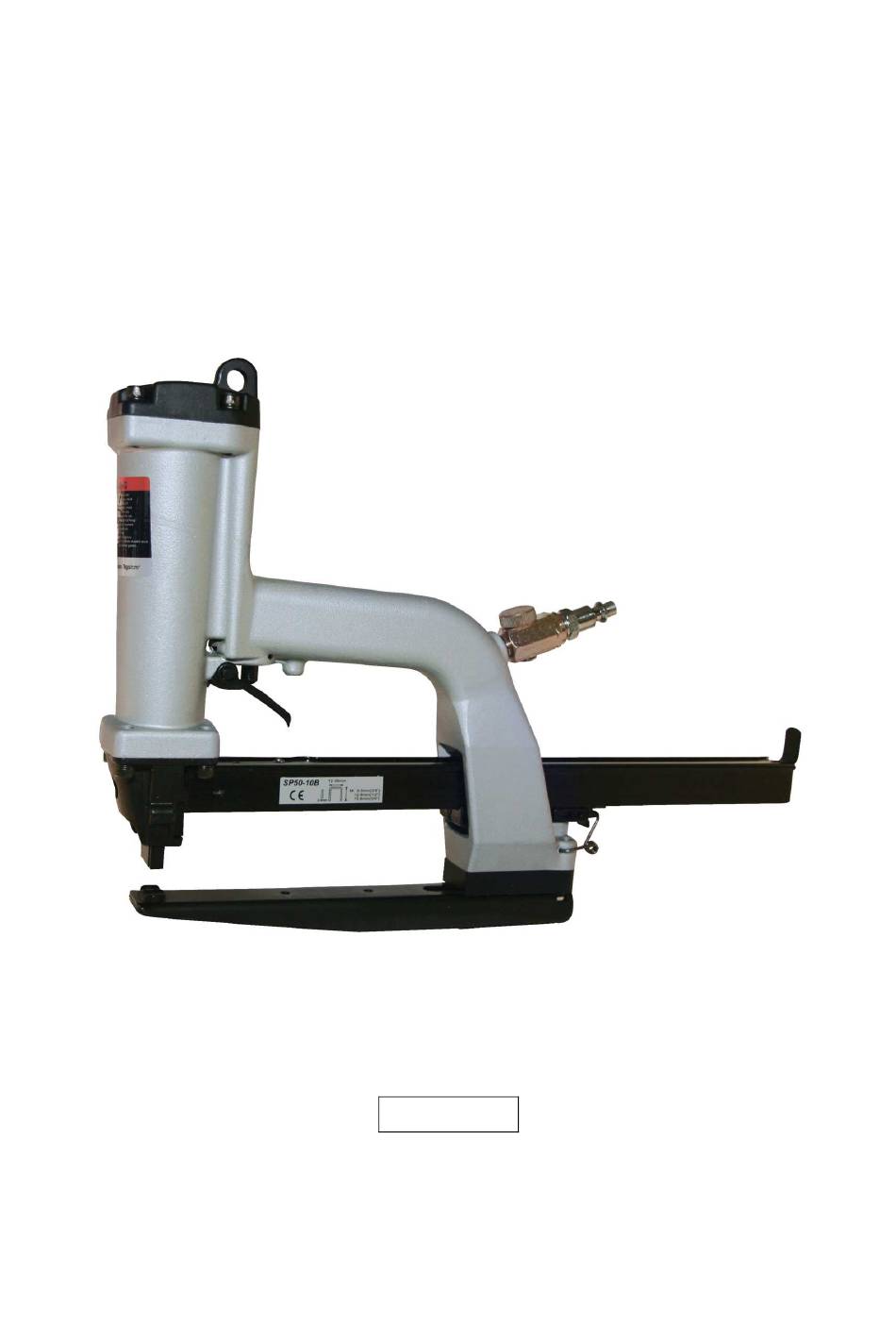

DSP779
AIR DRIVE PLIER
OPERATION and MAINTENANCE MANUAL
WARNING
BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD STUDY THIS
MANUAL, TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND
INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE
REFERENCE. IF YOU HAVE ANY QUESTIONS, CONTACT YOUR DISTRIBUTOR.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSP779 and is the answer not in the manual?

Questions and answers

Related Manuals for Spotnails DSP779

Summary of Contents for Spotnails DSP779

  • Page 1 DSP779 AIR DRIVE PLIER OPERATION and MAINTENANCE MANUAL WARNING BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD STUDY THIS MANUAL, TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE. IF YOU HAVE ANY QUESTIONS, CONTACT YOUR DISTRIBUTOR.

  • Page 2: Table Of Contents

    INTRODUCTION The SP50 is a precision-built tool; designed for high speed, high volume stapling. These tools will deliver efficient, dependable service when used correctly and with care. As with any fine power tool, for best performance the manufacturer’s instructions must be followed. Please study this manual before operating the tool and understand the safety warnings and cautions.

  • Page 3: Loading Tool

    WARNING Do not pull trigger or depress contact arm while connected to the air supply as the tool may cycle, possibly causing injury. WARNING Always disconnect air supply: 1.) Before making adjustments; 2.) When servicing the tool; 3.) When Clearing a jam; 4.) When tool is not in use;...
  • Page 4 SETTING THE CORRECT PRESSURE WARNING The air equipments will vary, depending on the Do not use oxygen or material to be stapled and the staple size. Do not combustible gases as a use more air pressure than is required to drive the power sources which can staple in the specific job.

  • Page 5: Loading The Sp50 Series Stapling Plier

    LOADING THE SP50 SERIES STAPLING PLIER WARNING EYE PROTECTION which conforms to ANSI specifications and provides protection against flying particles both from the FRONT and SIDE should ALWAYS be worn by the operator and others in the work area when loading, operating or servicing this tool.
  • Page 6 Frequent but not excessive lubrication is required for best performance. Oil added through the air line connection will lubricate the internal parts. Use Mobil Velocite #10 oil or an equivalent. Do not use detergent oil or oil additives because the seals and bumpers in the tool may be attacked by the oil.
  • Page 7 *Special maintenance instructions: These are threaded parts that have been assembled with a plastic thread locking compound. They should be replaced in a SPOTNAILS distributor. However, if they must be replaced in the field, they may be separated by heating parts to approximately 450°F when the compound become plastic.

  • Page 8: Replace Driver Piston Or Driver

    Release Magazine Unit(024). Release Screw(501) and take away Cap(001), Packing(002), and Bumper(003). Pull out Cylinder Unit(007). Release C-ring(502). Take away Driver Piston(004) and Driver(006).

  • Page 9: Replace Anvil

    Release the two Screw (512,514) and take away Anvil (029). Assemble the new Anvil (029) and Screws (512,514). Insert single staple into Driver Guide(016), leaving points protruding. Pull Driver Guide(016) down, until staple points contact Anvil(029). Align Anvil(029) with staple points by turning Screw(506).

  • Page 10: Replace Driver Guide

    Release Magazine Unit(024). Release Screws(501) and take away Cap(001), Packing(002) and Bumper(003). Pull out Cylinder Unit(007). Heat Screws(520). Release Screws(520) and take away Driver Guide(016). Reassemble New Driver Guide (016) and Screws(520). NOTE:Use Locktite soluent #75559, apply Locktite grade 277.

  • Page 11: Replace Pusher Or Spring

    Release Magazine Unit(024). Push Cover Unit(018) forward and take away Cover Unit(018). Take away Pusher(019) from top hole on Magazine(024). Pull up and take away Block(028) from Magazine(024). Separate Springs(022) and Block(028) by taking away Rod(025).

  • Page 13: Exploded View Of Tool

    SPOTNAILS MODEL DSP779 Ref No. Part No. Description Ref No. Part No. Description Ref No. Part No. Description P-60215 P-09237 Pusher P-64576 O-Ring P-63054 Gasket P-07456 Roll Pin P-24580 Set Screw P-15266 Bumper P-20038 Roller P-24576 Socket Cap Screw P-66122...
  • Page 15 ADDITIONAL CLINCHERS CLINCHER B Part No. Description P-31082 Clincher B P-03113 Spacer P-24580 Set Screw P-24582 Socket Cap Screw P-24587 Socket Cap Flat Head Screw P-07464 Spring Pin CLINCHER CL CLINCHER CR Part No. Description Part No. Description P-31072 Clincher CL P-31073 Clincher CR P-31083...
