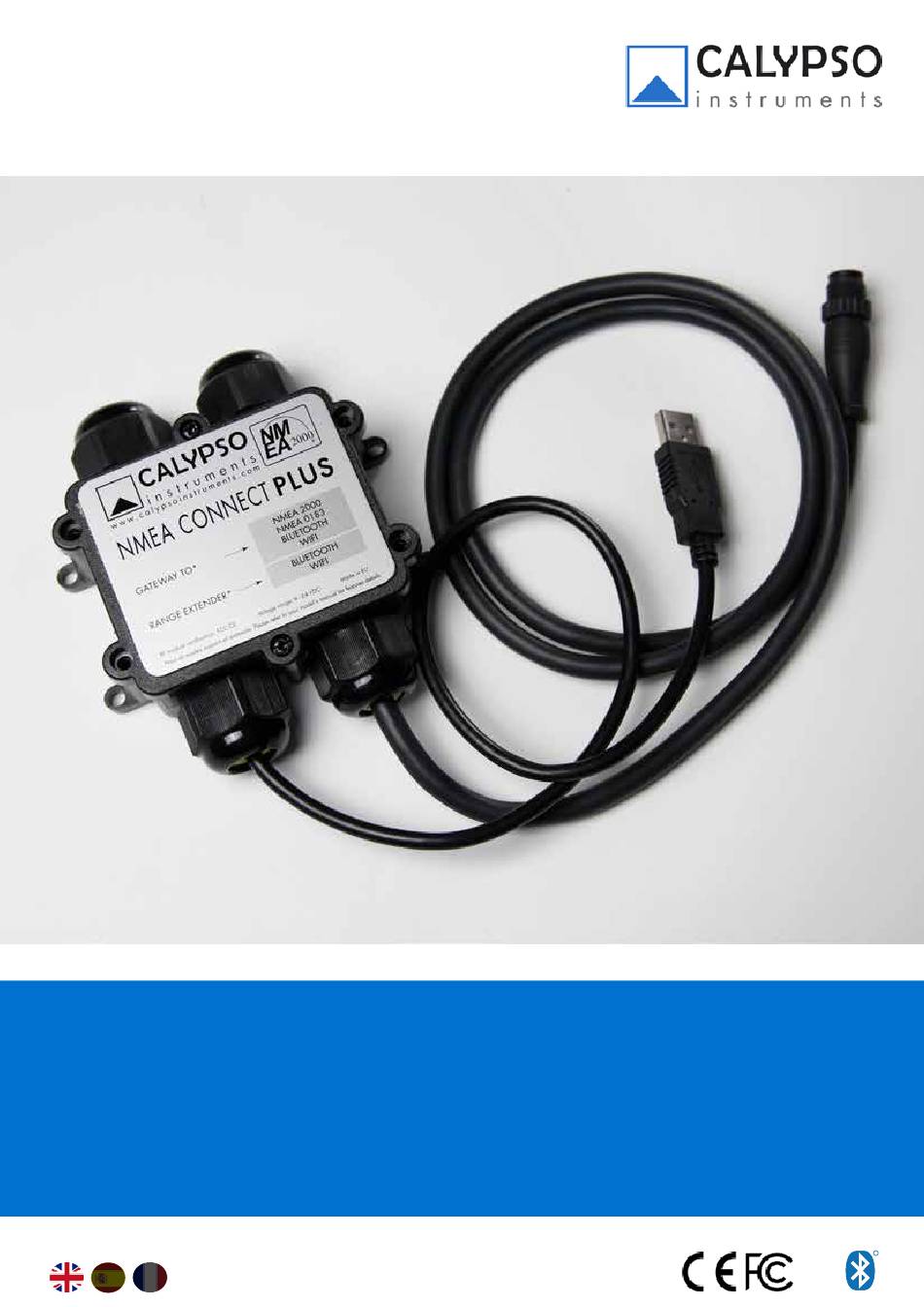

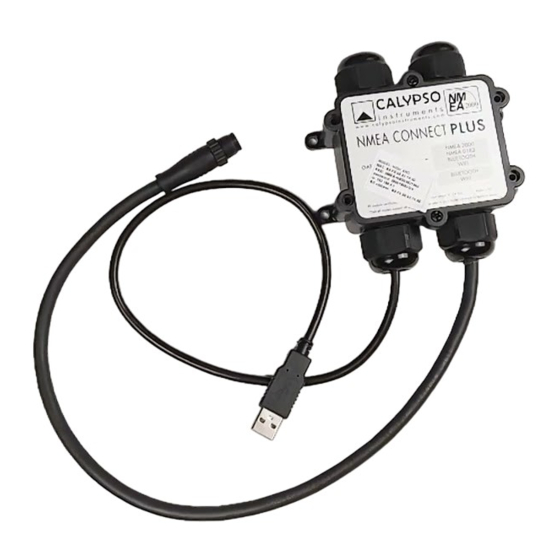

- Page 1 . c a l y p s o i n s t r u m e n t s . c o m HIGH-END NMEA CONNECT PLUS GATEWAY Ultrasonic Portable Range to NMEA 0183 ULTRASONIC Portable User manual...
- Page 2 1.1 Brief description of product. 1.2 NCP High-End layout. 2. Connection from the Calypso Instruments Portable Range. 2.1 How to connect the Calypso Instruments Portable Range via Bluetooth to the NCP High-End via cable to an NMEA 0183 display. 2.1.1 NCP High-End configuration.
-
Page 3: Brief Description
1. Brief description of product and layout 1.1 Brief description The NMEA Connect Plus High-End (NCP- High End), can be connected to the Calypso Instruments Portable Range via Bluetooth Low Energy (BLE) and also to the Calypso Instruments Wired Range. - Page 4 1. Brief description of product and layout 1.1 NCP High-End layout. Main terminal pins: The NCP High-End is labeled with: NCP wifi name 0183 Wifi server port as per default NMEA Connect Plus High-End User manual...
- Page 5 2. Connection from the Calypso Instruments Portable Range. 2 .2 How to connect the Calypso Instruments Portable Range via Bluetooth to the NCP High-End via cable to an NMEA 0183 display. NCP High-End configuration. Configuration via Wifi (USB or direct wiring to a power source).
- Page 6 2. Connection from the Calypso Instruments Portable Range. 2.2 How to connect the Calypso Instruments Portable Range via Bluetooth to the NCP High-End via cable to an NMEA 0183 display. Configuration via wifi (continuation) Information Page This page shows information about your NCP High-end such as the NCP model, its MAC code, NCP wifi address , BD address ( the MAC id number that will be shown when connecting your device via Bluetooth) and its current firmware version.
- Page 7 2. Connection from the Calypso Instruments Portable Range. 2.2 How to connect the Calypso Instruments Portable Range via Bluetooth to the NCP High-End via cable to an NMEA 0183 display. Configuration via wifi (continuation) Configuration page The interface will allow you to configure the NCP High-end to your Ultrasonic wind meter.
- Page 8 2. Connection from the Calypso Instruments Portable Range. 2.2 How to connect the Calypso Instruments Portable Range via Bluetooth to the NCP High-End via cable to an NMEA 2000 display or NMEA 2000 backbone. Configuration via wifi (continuation) Configuration via USB...
- Page 9 2. Connection from the Calypso Instruments Portable Range. 2.2 How to connect the Calypso Instruments Portable Range via Bluetooth to the NCP High-End via cable to an NMEA 0183 display. Configuration via USB (continuation) This is the configurator interface : If you don’t see any port COM number or you don’t know what is your port COM number, see Appendix I.
- Page 10 2. Connection from the Calypso Instruments Portable Range. 2.2 How to connect the Calypso Instruments Portable Range via Bluetooth to the NCP High-End via cable to an NMEA 0183 display. Configuration via USB (continuation) NCP Connection Connection using PORT 2 as input •...
- Page 11 2. Connection from the Calypso Instruments Portable Range. 2.2 How to connect the Calypso Instruments Portable Range via Bluetooth to the NCP High-End via cable to an NMEA 0183 display. NCP Connection (continuation) Connection using PORT 1 as input an electrical...
- Page 12 I don’t see any port COM number or I don’t know what my port COM number is. I don’t see any port COM number. I don’t know what my port COM number is. NMEA Connect Plus High-End APPENDIX I User manual...
- Page 13 NMEA CONNECT PLUS HIGH-END User manual English version 1.0 01.05.2023...
