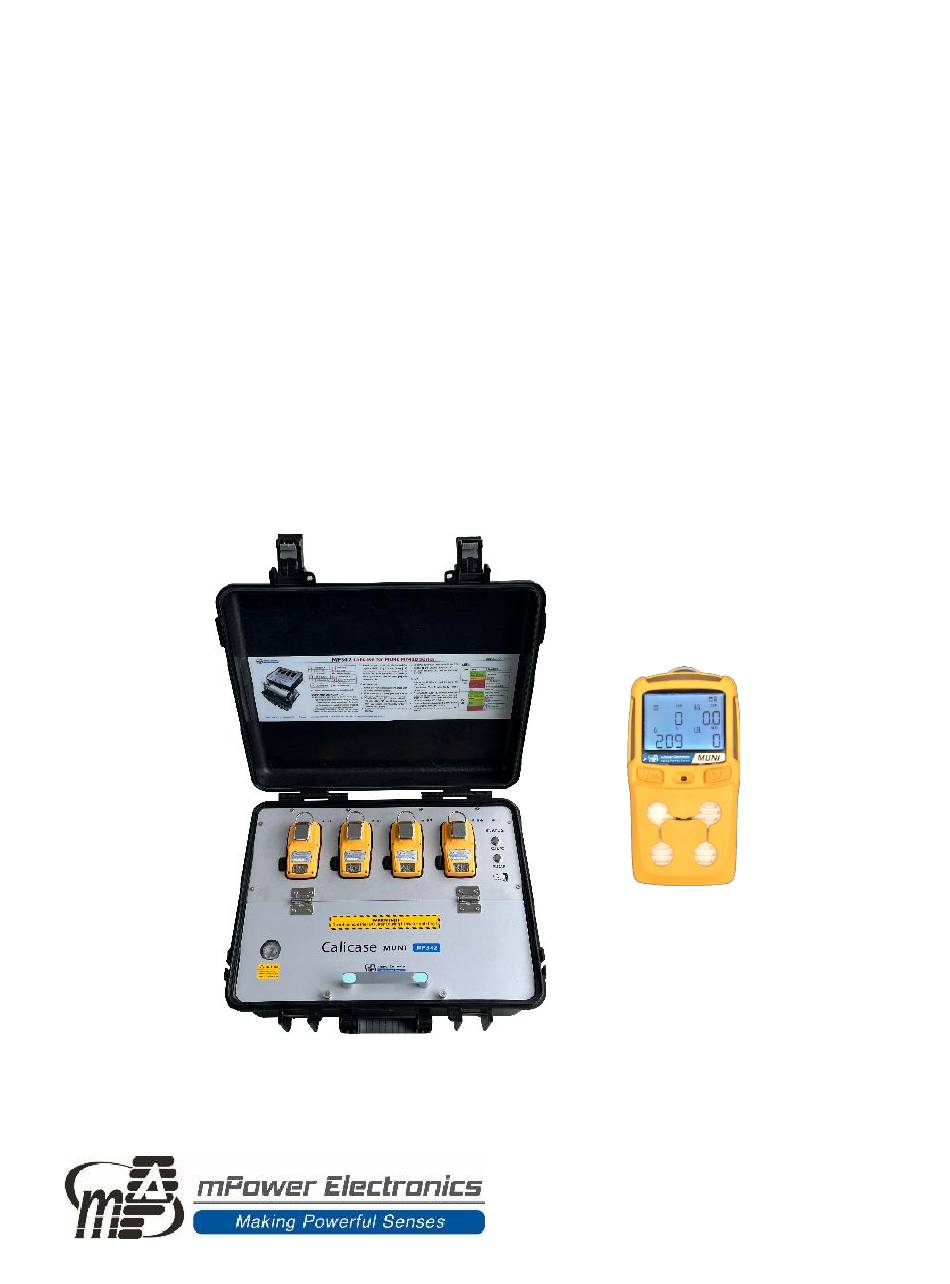

- Page 1 MUNI CaliCase 4-Bay Docking Station MP342 User Guide Rev 1.0 April, 2023...
-
Page 2: Table Of Contents
MP342 MUNI 4-Bay CaliCase Contents 1. General Information ..........................3 2. Description ............................3 2.1 MP342 Component Diagram ..........................3 2.1 LED Indications ..............................4 3. Installation and Set Up ......................... 4 3.1 Charging ................................4 3.2 Gas Connections ..............................4 3.3 Power On/Off .............................. - Page 3 MP342 MUNI 4-Bay CaliCase Read Before Operating This manual must be carefully read by all individuals who have or will have the responsibility of using, maintaining or servicing this product. The product will perform as designed only if it is used, maintained and serviced in accordance with the manufacturer’s instructions.
-
Page 4: General Information
MP342 MUNI 4-Bay CaliCase General Information MP342 is the MUNI Calibration and Bump Test CaliCase. All records of calibrations and bump tests performed on the CaliCase are stored in its USB disk. The CaliCase includes internal rechargeable batteries and is portable for remote use. CaliCase comes with the following standard features •... -
Page 5: Led Indications
MP342 MUNI 4-Bay CaliCase 2.1 LED Indications The interpretations of the various LED indicators are listed below. Color Description Green Power on Green blinking Low battery Orange Charging Status LED 1) USB Disk error Red blinking 2) Date/time error 3) No pump detected None Power off Green blinking fast... - Page 6 USB port on the computer. Use mPower Suite software to configure the gas concentrations and other parameters. Download mPower Suite at Software Downloads | mPower Electronics Inc. (mpowerinc.com). Also, it is best to have the latest firmware installed in both the CaliCase and MUNI, as earlier firmware versions may not be fully compatible with each other.
- Page 7 Firmware Upgrade - Select computer file to upgrade the CaliCase firmware. Obtain the latest firmware at Software Downloads | mPower Electronics Inc. (mpowerinc.com). 9. Turn off the CaliCase by holding down the Cal button. Insert the UDisk into Port [14] and then...
-
Page 8: Calibration And Bump Test Procedures
MP342 MUNI 4-Bay CaliCase Calibration Parameter Priority When a calibration is initiated, the CaliCse uses the parameters stored in the CaliCase itself and overrides the values stored the MUNI configuration. Therefore, the MUNI span concentrations do not need to match the CaliCase and UDisk values. Each time the CaliCase is turned on, the calibration parameters automatically get loaded from the UDisk onto the CaliCase and override the existing CaliCase parameters. -
Page 9: Automated Multiple Configuration And/Or Firmware Updates
MP342 MUNI 4-Bay CaliCase 5.2 Automated Multiple Configuration and/or Firmware Updates The CaliCase can be used to simultaneously update 1-4 MUNI configurations and/or firmware. To do so, the path to a saved configuration and/or firmware must be entered onto the UDisk MUNI Info tab. 1. - Page 10 MP342 MUNI 4-Bay CaliCase 6. Click on the CaliCase Info Tab and make sure that the Update Unit Config and/or Update Unit Firmware boxes are checked. If desired, also enter CaliCase Station Config and Firmware Paths. Click on Write in the Station Firmware Upgrade box. 7.
-
Page 11: Bump/Calibration Results Download & Certificate
MP342 MUNI 4-Bay CaliCase Bump/Calibration Results Download & Certificate 1. Remove the UDisk from the MP342 MUNI CaliCase and insert it into a computer. Using mPower Suite, select the UDisk when it appears in the left panel after several seconds. -
Page 12: Replacement Parts
USB cable, docking stations to computer, Length 50 cm M410-0002-001 $25.00 UDisk, 16G, for MP342 MUNI CaliCase M490-0145-001 $22.00 * These prices are for reference and may change at any time. Please refer to the latest version of the mPower List Price Guide or contact mPower for a quotation. -
Page 13: Technical Support And Mpower Contacts
MP342 MUNI 4-Bay CaliCase Technical Support and mPower Contacts mPower Electronics Inc. 3046 Scott Blvd. Santa Clara, CA 95054 Phone: (408) 320-1266 Fax: (669) 342-7077 info@mpowerinc.com www.mpowerinc.com...
