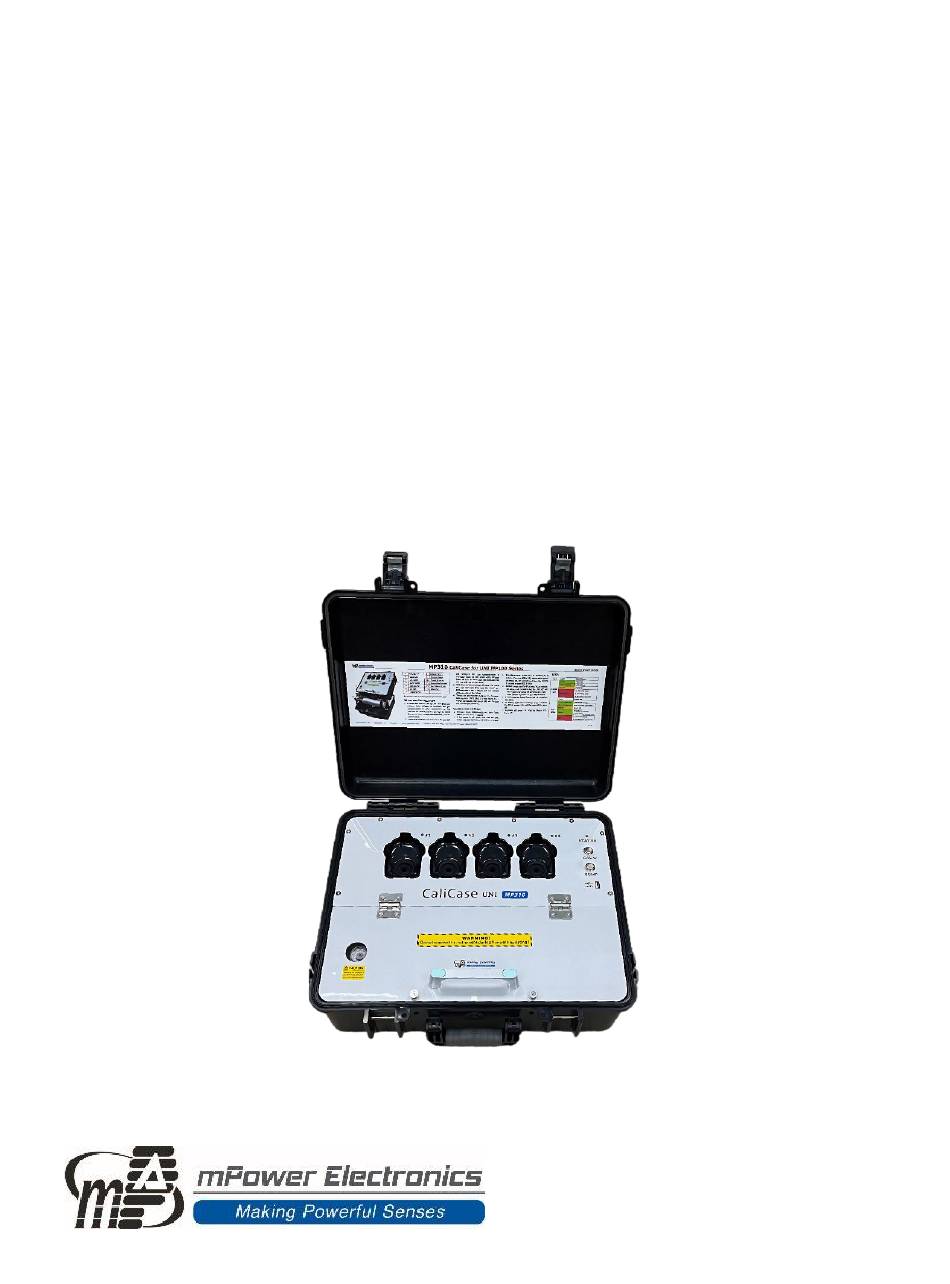

  • Page 1 UNI CaliCase 4-Bay Docking Station MP310 User Guide Rev 0.2 August, 2024...

  • Page 2: Table Of Contents

    MP310 UNI 4-Bay CaliCase Contents 1. General Information ..........................3 2. Description ............................3 2.1 MP310 Component Diagram ..........................3 2.1 LED Indications ..............................3 3. Installation and Set Up ......................... 4 3.1 Charging ................................4 3.2 Gas Connections ..............................4 3.3 Power On/Off ..............................
  • Page 3 MP310 UNI 4-Bay CaliCase Read Before Operating This manual must be carefully read by all individuals who have or will have the responsibility of using, maintaining or servicing this product. The product will perform as designed only if it is used, maintained and serviced in accordance with the manufacturer’s instructions.

  • Page 4: General Information

    MP310 UNI 4-Bay CaliCase General Information MP310 is the UNI Calibration and Bump Test CaliCase for use with MP100 monitors. All records of calibrations and bump tests performed on the CaliCase are stored in its USB disk. The CaliCase includes internal rechargeable batteries and is portable for remote use. The CaliCase comes with the following standard features •...

  • Page 5: Led Indications

    MP310 UNI 4-Bay CaliCase 2.1 LED Indications The interpretations of the various LED indicators are listed below. Color Description Green Power on Green blinking Low battery Orange Charging Status LED 1) USB Disk error Red blinking 2) Date/time error 3) No pump detected None Power off Green blinking fast...
  • Page 6 USB port on the computer. Use mPower Suite software to configure the gas concentrations and other parameters. mPower Suite can be downloaded at Software Downloads | mPower Electronics Inc. (mpowerinc.com). Also, it is best to have the latest firmware installed in both the CaliCase and UNI, as earlier firmware versions may not be fully compatible with each other.
  • Page 7 Firmware Upgrade - Select computer file to upgrade the CaliCase firmware. Obtain the latest firmware at Software Downloads | mPower Electronics Inc. (mpowerinc.com). 6. Turn off the CaliCase by holding down the Cal button. Insert the UDisk into Port [13] and then...

  • Page 8: Calibration And Bump Test Procedures

    MP310 UNI 4-Bay CaliCase Calibration Parameter Priority When a calibration is initiated, the CaliCase uses the parameters stored in the CaliCase itself and overrides the values stored the UNI configuration. Therefore, the UNI span concentrations do not need to match the CaliCase and UDisk values. Each time the CaliCase is turned on, the calibration parameters automatically get loaded from the UDisk onto the CaliCase and override the existing CaliCase parameters.

  • Page 9: Additional Operations

    MP310 UNI 4-Bay CaliCase Additional Operations 5.1 Manual UNI Configurations The CaliCase can be used to manually set individual UNI configurations for field measurements. See the UNI Manual for more information on each of the parameters including firmware upgrades. 1. Turn on 1-4 UNI instrument(s) and place them face-down into their cradle(s). 2.
  • Page 10 MP310 UNI 4-Bay CaliCase 6. Click on the CaliCase Info Tab and make sure that the Update Unit Config and/or Update Unit Firmware boxes are checked. If desired, also enter CaliCase Station Config and Firmware Paths. Click on Write in the Station Firmware Upgrade box. 7.

  • Page 11: Manual Multiple Configuration And/Or Firmware Updates

    MP310 UNI 4-Bay CaliCase 5.3 Manual Multiple Configuration and/or Firmware Updates 1. Long press the BUMP button and the CaliCase will update the UNI configuration and upgrade the firmware on all UNI units. 2. Long pressing the BUMP button overrides the Update Unit Config and/or Update Unit Firmware statuses, so there is no need to confirm whether these boxes are checked.

  • Page 12: Bump/Calibration Results Download & Certificate

    MP310 UNI 4-Bay CaliCase Bump/Calibration Results Download & Certificate 1. Remove the UDisk from the MP310 UNI CaliCase and insert it into a computer. Using mPower Suite, select the UDisk when it appears in the left panel after several seconds. 2.

  • Page 13: Replacement Parts

    MP310 UNI 4-Bay CaliCase Replacement Parts Description Part Number List Price* USB cable, docking stations to computer, Length 1.5m M410-0019-000 $25.00 UDisk, 16G, for CaliCase M490-0145-001 $22.00 * These prices are for reference and may change at any time. Please refer to the latest version of the mPower List Price Guide or contact mPower for a quotation.

  • Page 14: Technical Support And Mpower Contacts

    MP310 UNI 4-Bay CaliCase Technical Support and mPower Contacts mPower Electronics Inc. 2910 Scott Blvd. Santa Clara, CA 95054 Phone: (408) 320-1266 Fax: (669) 342-7077 info@mpowerinc.com www.mpowerinc.com...
